Specifications

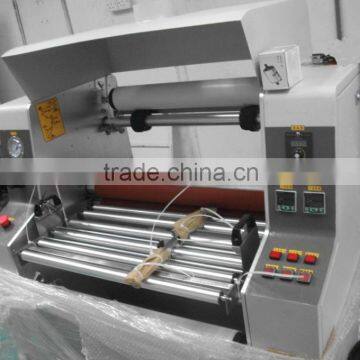

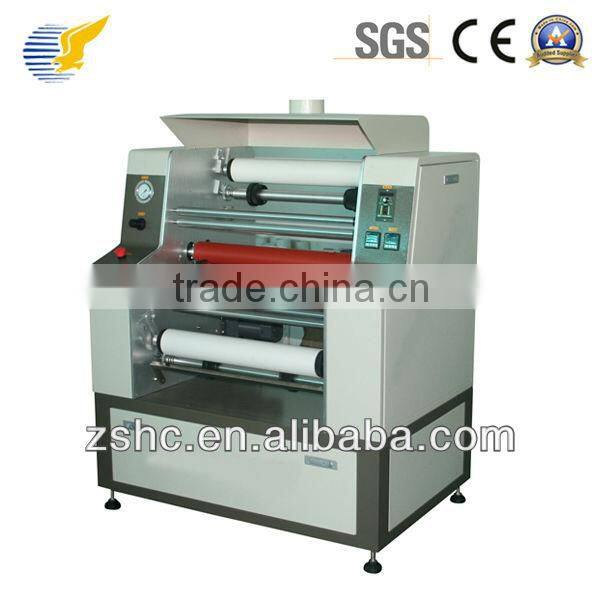

Dry film photoresist laminator is used for coat dry film in PCB industry or other precision etching work.
DRY FILM PHOTORESIST LAMINATOR FOR DRY FILM,PCB FILM
Model: GE-D650
Power: AC220V/ 50/60Hz/15A
Foundation plate size: Long: 250~610mm ;
Width: 250~ 650mm;
Thick: 0.05~3.2mm
Dry Film Size: Width: 250~610mm, 15~75um
Electricity Heater: 2KW/AC220V; 2PCS
Heat-press roller Diameter: 78mm * 2PCS
Press film temperature: 50-150 degrees ( ± 2 Adjustable)
Air Pressure system: 3-5kg/ c
Exhaust system: 12/min, 4× 1
Outsize/ Weight Long: 830mm× Width 1125mm× High 1520mm
Machine Weight: 220kgs
Dry film photoresist laminator is used for coat dry film in PCB industry or other precision etching work.

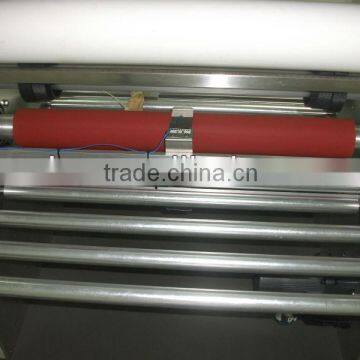

Features: Sealed using the latest design and integration machine body design, to ensure the roller equitability; Lamination roller is heat-resistant silicone, moderate hardness, especially for laminate soft and hard board; Big diameter lamination roller heat more quickly, evenly and working life longer, accurately control of laminated roller surface temperature.
