DES Production Line for flexible dies
Main technical parameter:

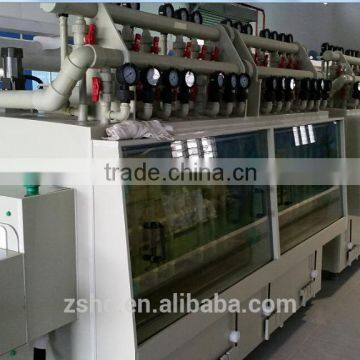

GE-SK9 Double Side PCB Etching Machine/ PCB Electronic Production Equipment
Power: 380V 50Hz
Working width: 650mm
Production specification:610mm×610mm (maximum); 80mm×60mm (minimum)
Transfer speed: 0.5 - 6m/min (adjust)
Board thickness: 0.5~3.2mm
Control system: PLC control system
Supply voltage: three-phase four-wire power cable (380V 50HZ)
Overall dimensions: L 21500mm × W 2000mm × H 2000mm
Process flow:
load → developing→ cycling washing→ municipal water washing →check up → etching→ cycling washing →
municipal water washing →check up→ leaching→ film striping → cycling washing → municipal water washing→
cold air drying→ segregation→ hot air drying→ unload
Features:
(1) This machine applies wheels whose wheel base is 28mm, Φ30mm, and adopts crossed double-transmission permutation; it is particularly fit for flexible plates manufacture since it can effectively prevent plate rolling;
(2) Belt gear is made of PVDF ultra-wear-resistant materials which create steady, reliable and durable transmission;
(3) Overhead electric cabinet and aerial wiring contributes to convenient maintenance, secure circuit and clean environment;
(4) Window and side window adopt transparent toughened glass and multi pressure points design, which can
effectively prevent liquid and gassy leakage;
(5) Special rocking bracket suspension provides convenience for nozzle converting and cleaning.
