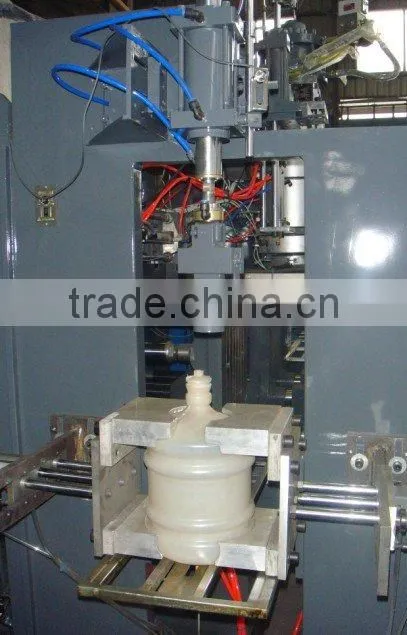

Sell automatic blow molding machine
- 6 Set / Sets per Month
- shanghai
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PVC |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | Apollo | Model Number: | ABLD75 |
Product Description
Specifications
Automatic blow moulding machineMax volume 25L
adopt Japan&Taiwan technology
High quality assurance and competitive price

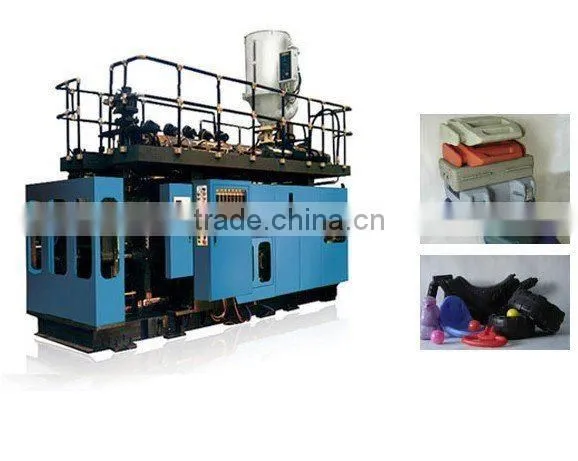

ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the duct volume is up to 25L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Main parts of Machine | Picture | Explanation |
Oil Pump |
|
Oil pump From Japan YUKEN driving the machine |
Computer control system (PLC) |
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen | |
Parison controllor |
|
MOOG parison Controllor Control the thickness of products |
Screw cutter device |
|
This device is able to remove the extra top of gallons
|
Electric Cabinet |
|
This part is the full electric components of the machine |
Max. Product volume | 25 liters |
Dry cycle | 600pc/h |
Screw diameter | 75mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 30 KW |
Screw heating capacity | 16 KW |
No.of heating zone | 4 zones |
Output of HDPE | 100 KG/H |
Oil pump drive power | 22 KW |
Clamping force | 210 KN |
Max.size of mold | 550X650mm |
Mold stroke | 350-780mm |
Max.die diameter | 280mm |
Die heating power | 5.3 KW |
Die heating segments | 4 zones |
Blowing pressure | 0.8mpa |
Air volume | 0.8 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 60 L/MIN |
