Specifications

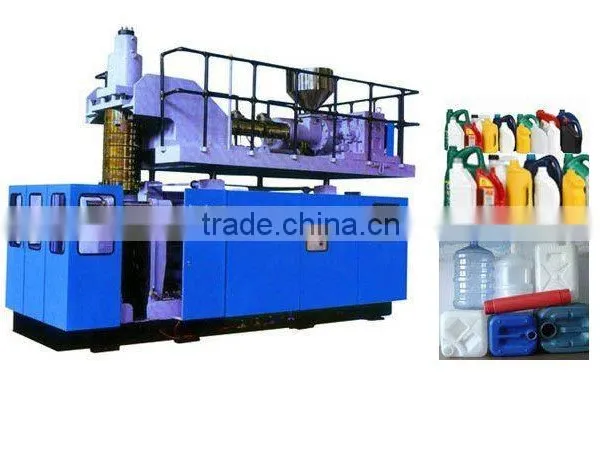

ABLD90 full automatic blow molding machine is suitable for various kinds of plastic bottles not over 50L in all shapes.
ABLD90 high speed full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L.It is widely used to produce tool boxes and big volume bucket,plastic boards and related containers.Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate,saved labor cost,saved enery,high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.
For more information,don't hesitate to contact us.
Main Technical Parameter
Max. Product volume |
50 liters |
Dry cycle |
450pc/h |
Screw diameter |
90mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
37 KW |
Screw heating capacity |
18 KW |
No.of heating zone |
4 zones |
Output of HDPE |
130 KG/H |
Oil pump drive power |
30 KW |
Clamping force |
260 KN |
Max.size of mold |
700X950mm |
Mold stroke |
450-1000mm |
Max.die diameter |
340mm |
Die heating power |
7.6 KW |
Die heating segments |
4 zones |
Blowing pressure |
0.8mpa |
Air volume |
1.0 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
90 L/MIN |
