Home > Products > Toilet Paper Production Line Series > J:CDH-1880-YE toilet paper rewinder machine, toilet roll machine, bathroom paper machine, small toilet paper machine

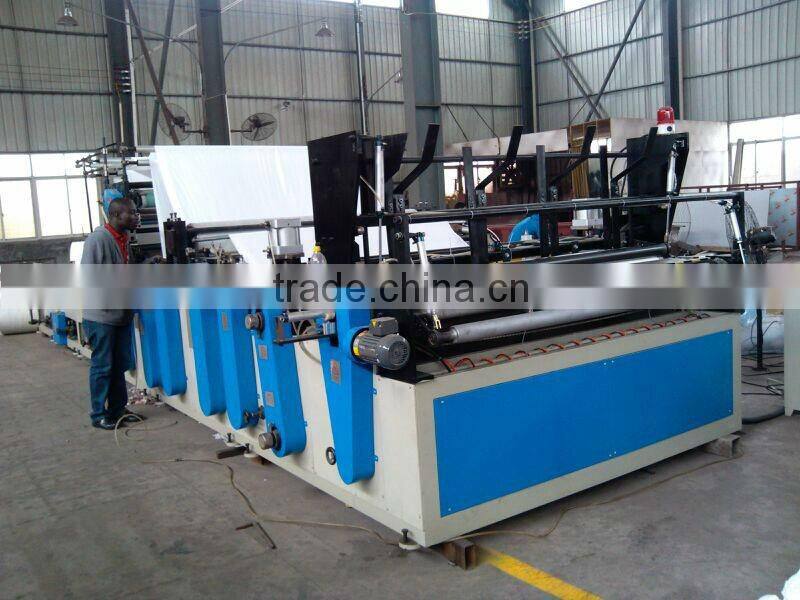

J:CDH-1880-YE toilet paper rewinder machine, toilet roll machine, bathroom paper machine, small toilet paper machine
- 40 Set / Sets per Month
- XIANMEN PORT CHINA
- T/T
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Semi Automatic Packing Line , Toilet Roll Tissue Packaging Machine
- Semi Automatic Tissue Paper Packing Machine , Tissue Rolls Packing Machine
- Tissue Rolls Packing Machine , Automatic Packing Machine
- Tissue Roll Packing Machine , Semi Automatic Toilet Roll Packing Machine
- Manual Cutter for Cutting Paper , Paper Cutting Machine Small Size
Product Details
Condition: | New | Product Type: | Toilet Tissue | Processing Type: | Other, Full Automatic Trimming, Sealing, Embossing and Perforating Rewinder |
Place of Origin: | Fujian, China | Brand Name: | chuangda | Model Number: | CDH-1880-YE |
Voltage: | 380V 50HZ | Power(W): | 7.5KW | Dimension(L*W*H): | 6200*2300*1800mm |
Weight: | 5000 KG | Certification: | CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
J:CDH-1880-YE toilet paper rewinder machine, toilet roll machine, bathroom paper machine, small toilet paper machine
Equipment Function & Character:
1.The machine is with international advanced PLC programmable controlling technical, frequency conversion speed-regulator, electronic brake and man-machine interface operation table. The multi functions mounting on this machine has won the favor and credit among users by their profound practicability.
2.Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
3.Most of parts are precisely processed by numerical-control machine;the key mechanical parts are under CNC processing; while the main outsourcing parts are world famous brand.
4.Automatic roll core splicing unit without manual core feeding; Auto edge trimming, glue spraying and sealing synchronously in one time, which had materialized the popular technique of edge-trimming and tail-gluing as well as auto pushing out the final products after rewinding;
5. Monitoring system on broken paper or torn edge under high-speed running the equipment; Jumbo roll tension controlling system; Pneumatic lifting the jumbo roll;
6.It can work together with color printing and rewinding machine or glue laminating unit to produce kitchen towel.
Main Technical Parameter :
Machine Model | 1092 | 1575 | 1760 | 2200 | 2500 | 2800 | ||
Width (mm) | 1350 | 1750 | 1900 | 2150 | 2450 | 2750 | ||
Finished Products Diameter | Φ 60~150mm (Tightness can be adjustable) | |||||||
Finished Products Inner Diameter | Φ32~50 mm | |||||||
Jumbo roll diameter (mm) | Φ 1200 (Other sizes can be ordered) | |||||||
Jumbo Roll Inner Diameter | 3”,76.2 mm (other sizes can be ordered) | |||||||
Perforation distance (mm) | 4 blade,90~160mm;2 blade,180~320mm; | |||||||
Production speed | 160-180 m/min | |||||||
Parameter set | Touching-screener Multi-menu Man-machine Interface Operation System | |||||||
Programmable controller | Mitsubishi PLC program | |||||||
Mechanical driving | Driven by stepless speed-regulator to guarantee the precise length of final products. | |||||||
Embossment unit | Single embossment, Double embossment, Steel to steel embossment; | |||||||
Embossment down roller | Felt roller, paper roller, rubber roller | |||||||
Jumbo roll stand | 1-3 plies (ply quantity can be ordered) | |||||||
Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) | |||||||
Power | 5.5-15KW (Frequency speed-regulate ) | |||||||
Overall size (m)(L×W×H) | 6 X (2.3-4) X 1.8 | |||||||
Weight of equipment | 4000~8000kg (approximately) | |||||||
Chosen items (Should be ordered separately) | ||||||||
Embossment | Single embossment, double embossment, steel to steel embossment | |||||||
Embossment down roller | Felt roller, paper roller, rubber roller | |||||||
Jumbo roll stand | 1-3 plies | |||||||
Jumbo roll stand driving | Driven by variator | |||||||
Rewinding unit | Non-core unit | |||||||
Printing unit | Single color heliotype printing unit | |||||||
Side rolling embossment | Steel to steel | |||||||
Perforation mode | Air pneumatic separating unit | |||||||
Smooth embossment | Steel to steel, Steel to rubber ; | |||||||
Remote telecom service system | Should be ordered separately. |
