C:CDH-1092YE Full Automatic High Speed Toilet Paper Machine

C:CDH-1092YE Full Automatic High Speed Toilet Paper Machine thumbnail-1
C:CDH-1092YE Full Automatic High Speed Toilet Paper Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Toilet Tissue
Processing Type:
Other, paper toilet rolls converting machine
Contact Supplier Request Quote Chat Now
Quanzhou Chuangda Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Toilet Tissue
Processing Type Other, paper toilet rolls converting machine
Place of Origin Fujian, China
Brand Name Chuangda
Model Number CDH-1092 YE
Voltage 380V 50HZ
Power(W) Variable frequency speed control, 7.5KW
Dimension(L*W*H) 6200*2500*1800mm
Weight 5000kg
Certification CE
Warranty 1year,lifelong maintainance
After-sales Service Provided Engineers available to service machinery overseas

CDH-1092YE Full Automatic High Speed Toilet Paper Machine, small toilet paper making machine, Automatic small toilet paper production line for sale

Kitchen Paper Towel Machine, machine for making toilet paper rolls, cheap toilet paper machines, toilet tissue paper production line, semi automatic toilet roll machine, toilet tissue processing machine

Main Parameter:



Finished Roll Diameter

Φ70~140 mm (adjustable)

Finished Roll Core Diameter

Φ20~50 mm

Raw Material Diameter

≤Φ 1100 mm (Other sizes are available )

Raw Material Core Diameter

3”(76.2 mm) (Other sizes are available )

Perforating Pitch

90~160mm (Pneumatically separating unit-Optional)

Speed

180-200 meters/min

Parameter Setting

Touch button LCD Screen operation panel

Programme Controller

MITSUBSHI Programmable Controller (PLC)

Mechanism Driving

Stepless gear box, insure the precision of finished product length

Embossing Roller

Two sets of Steel to rubber.

Unwinding Paper Stand

3 ply .

Pneumatic System

3 HP air compressor, mini pressure 5kg/cm2 Pa(Provided by client)

Power

Variable frequency speed control, 7.5KW

Machine Size

6200×2500×1800mm(L×W×H)

Weight

5000kg

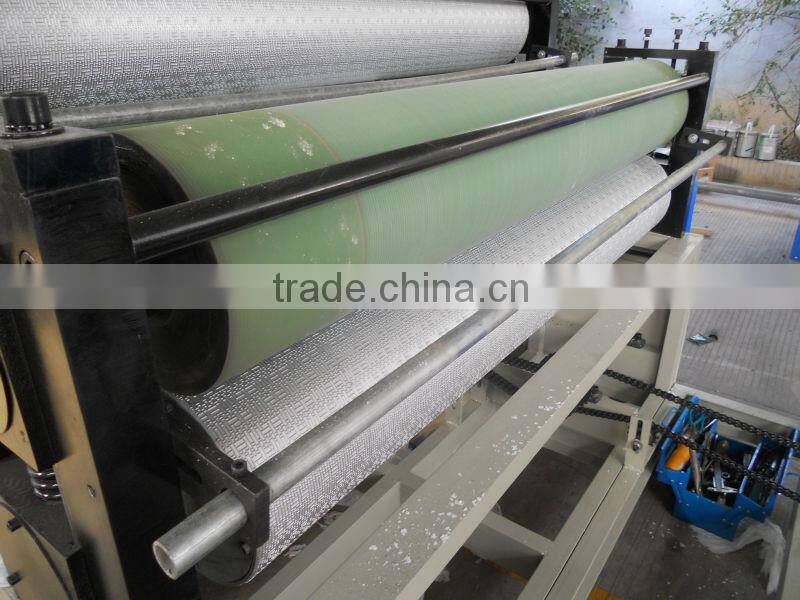

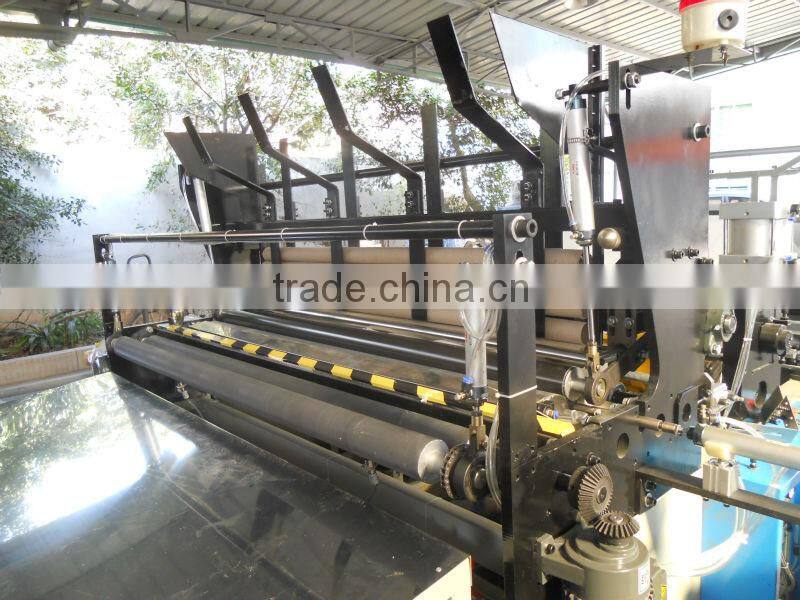

Pictures of machine part

C:CDH-1092YE Full Automatic High Speed Toilet Paper MachineC:CDH-1092YE Full Automatic High Speed Toilet Paper Machine

Pictures of final products:

 C:CDH-1092YE Full Automatic High Speed Toilet Paper Machine

Features:

Full Automatic Trimming, Sealing, Embossing and Perforating Rewinder adopt advanced PLC technology,

variable speed adjustment, electronic braking, and touch button multimenu type LCD screen operation control

panel.  Also the machine is newly added coreless roller shaped rewinding system. It’s adopt PLC wind pipe-shaped new technology. It’s no need to put core or stainless steel pipe. It’s full upgrade the whole machine..

Certificate:

CE

Pictures of our company:

C:CDH-1092YE Full Automatic High Speed Toilet Paper Machine

Welcome to inquiry and welcome to our factory.

C:CDH-1092YE Full Automatic High Speed Toilet Paper Machine
