Home > Products > Sanitary Napkin Production Line Series > CDH-400B1 Fast-Easy Packing Winged Sanitary Napkin Machine

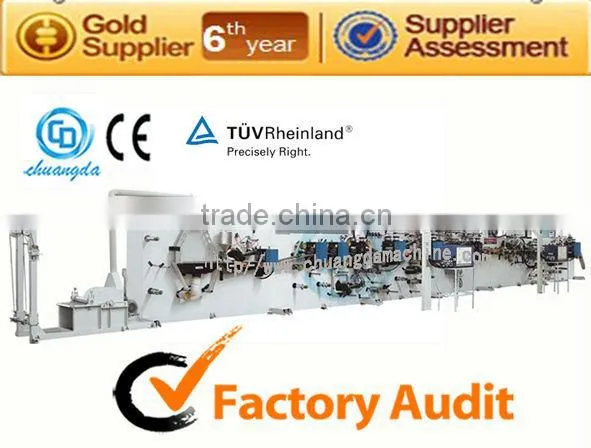

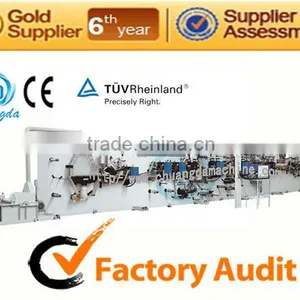

CDH-400B1 Fast-Easy Packing Winged Sanitary Napkin Machine
- 0 per Month
- Xiamen China
- T/T L/C D/P D/A Credit Card PayPal
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Product Type: | Paper Napkin Machine | Place of Origin: | Fujian, China | Brand Name: | CHUANGDA |
Model Number: | CDH-400B1 | Certification: | CE |
Product Description
Specifications
Fast-Easy Packing Winged Sanitary Napkin MachineStructure and Configuration
The main drive is achieved by connecting a No.45 hardened and tempered steel shaft, a universal joint clutch and a right angle gear box.
The components are driven by synchronous belt and gears.
The main pressing and cutting roller are driven by a universal joint cluth and it is easy to operate with the service life of cutting tools ensured.
The bearings, synchronous belts and electrical components are famous brands in China..
Main Technical Parameter | |
Designed production speed: | 550 PCS/min |
Stable production speed: | Economical sanitary napkin: 350-450 PCS/min |
Protective-leakage sanitary napkin: 300-400 PCS/min | |
Machine power: | 555KW (380V 50HZ) (exclude glue applicators) |
Overall size of equipment (L×W×H): | 16.5×1.2×2.1m (crusher and auxiliary equipment are not included.) |
Weight of equipment: | about 21T |
Equipment Functions
Common and ultra thin fluff pulp sanitary towels can be produced.
Dust free paper ultra-thin sanitary towels can be made.
Fluff pulp is spread through pulp-collecting box, and wrapped and formed with liner of high wet strength paper.
Interrupted or adjustable spraying of S.A.P can be selected.
Independent packing with sealing device, which is easy to be torn out.
If requested, a 3-pieces type solid shield apron and blue core piece or flow conducting short cut and dotting device can be supplied.
Stacker can be provided as requested by clients.
