SMA MALE Type Connectors Right Angle Female Coaxial Connectors for 1/2 Cable
- Shenzhen
- Credit Card PayPal
You May Like
-
RF Application SMA Connectors Right Angle Female Coaxial Connectors for 1/2 Cable
-
SMA RF Connectors Customized Right Angle Female Coaxial Connectors for 1/2 Cable
-
Gold Plated SMA Connectors Right Angle Female Coaxial Connectors for 1/2 Cable
-
SMA Right Angle Flange Connectors Female Coaxial RF Connectors for 1/2 Cable
-
SMA Series Right Angle Connectors Female Coaxial Connectors
-
SMA Connectors Right Angle Female Coaxial Connectors for LMR400
Product Details
| Place of Origin | Guangdong, China | Brand Name | twinlink | |
| Model Number | Custom | Type | SMA | |
| Application | RF | Gender | Female |
Product Description
Specifications
SMA series rf connector high quality.
1.Long life-span
2.Excellent performance
3High frequently
4MIL-C-39012 CECC22110
Twinlink produce high quality and reasonable price SMA series connector
Series of SMA products one application extensive small-scale coaxial person who join that whorl join. It meet with the standard of MIL-C-39012, IEC169-15 & CECC22110. It has reliable characteristics, durable, performance are excellent, long life-span. Suitable for the microwave equipment and body of the digital c o mmunication system and join the body in the cable or the micro-strip line frequently in the loop frequently.
Mechanical Characteristics
| Characteristic Impedance: | 50Ω |
| Frequency Range: | 0-18GHz |
| Wishstanding Voltage: | ≥750-1500V,50Hz |
| Working Voltage: | ≥250-500V,50Hz(see level) |
| ≥65-125V,50Hz(Height 21000M) | |
| Insulation Resistance: | 5000mΩ |
| Insulation Resistance: | Inner conductor:≤5mΩ |
| Outer conductor:≤5mΩ | |
| RF leakage(1GHZ): | Flexible: ≥60dB |
| Semi-rigid cable:≥70dB |
| Material |
| Pin conductor: | Brass/Beryllium copper--Gold plated |
| Body / Outer conductor | Beryllium copper--Gold plated |
| Stainless steel--Passivation | |
| Brass--Gold plated / Ternary Alloy (Cu+Zn+Sn) | |
| Phosphor bronze --Gold plated | |
| Plug: | Beryllium copper / Phosphor bronze--Gold plated |
| crimping sleeve: | Brass--Gold plated |
| Insulator: | PTFE / PFA |
| Sealing | Silastic |
package

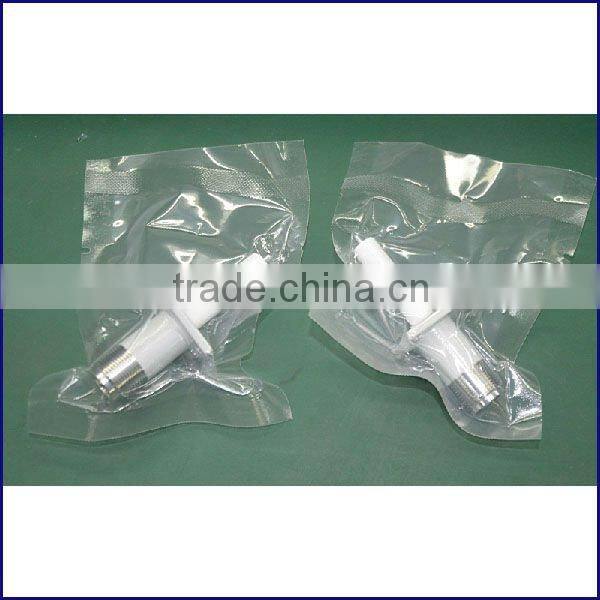

Vacuumize

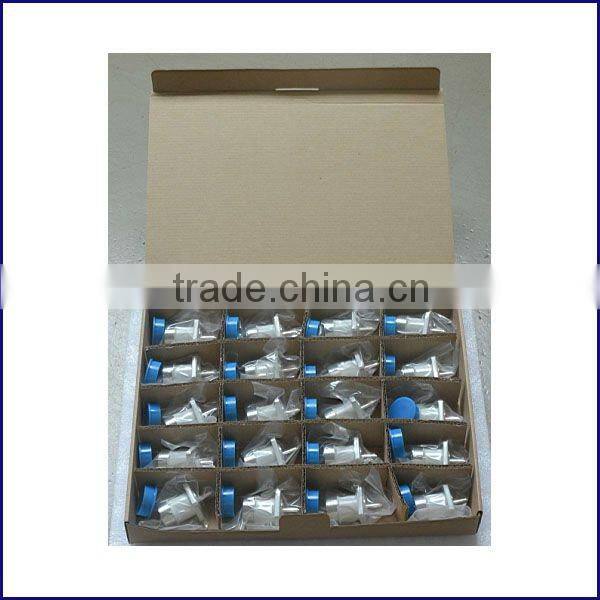

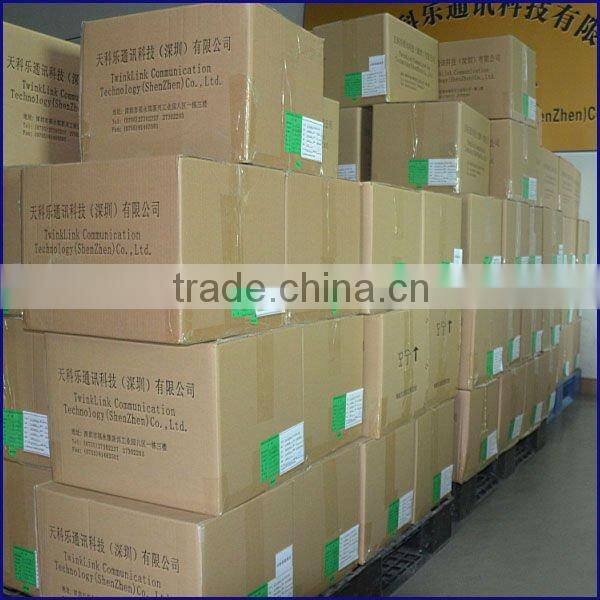

Vacuumize + Carton

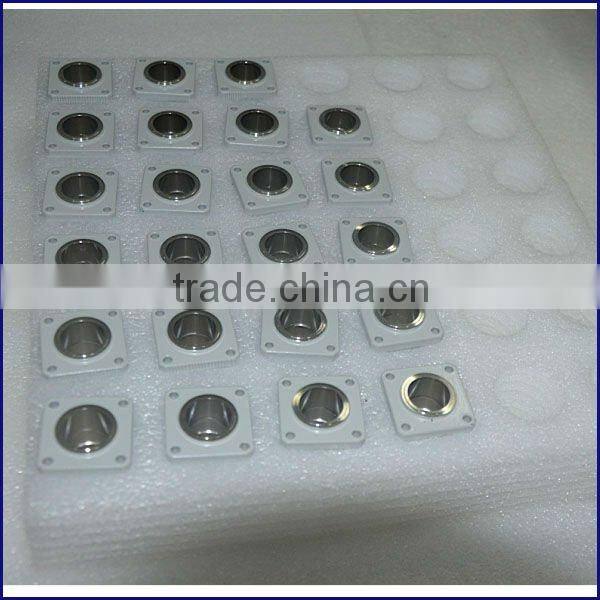

Foam

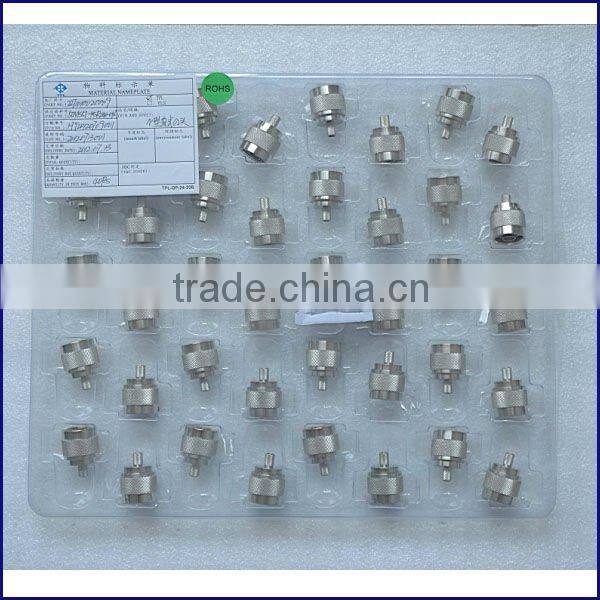

Blister
