Home > Products > New Products > MCX Female Coaxial RF Connectors

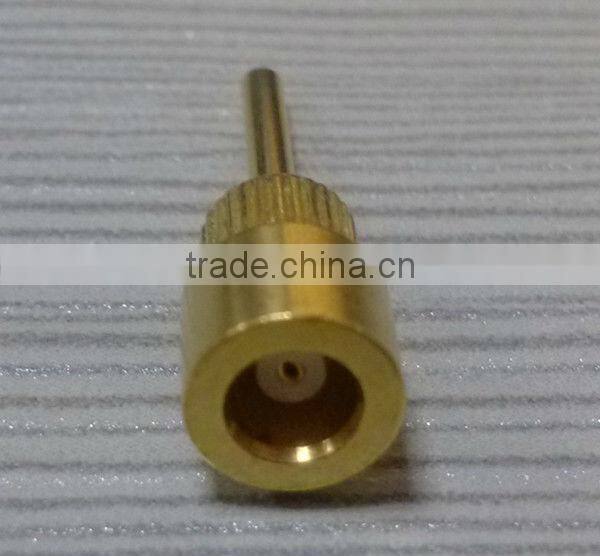

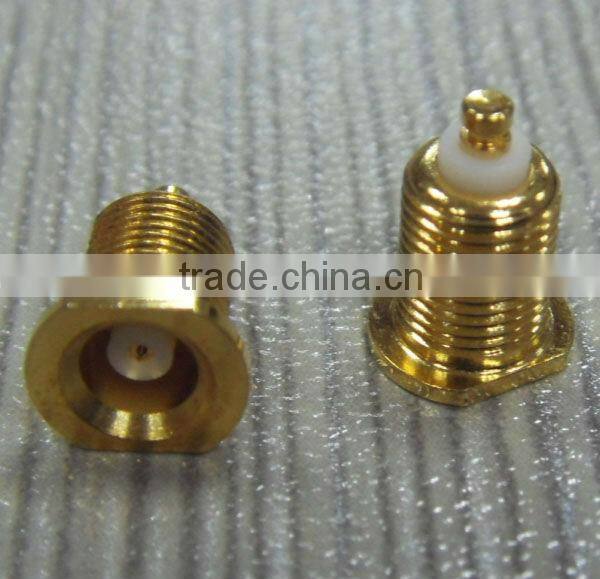

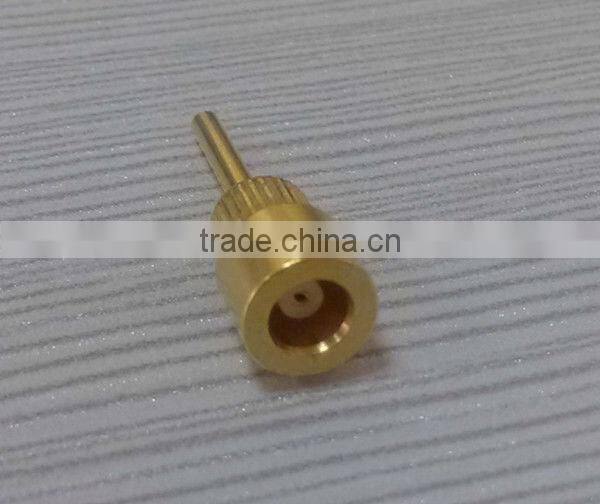

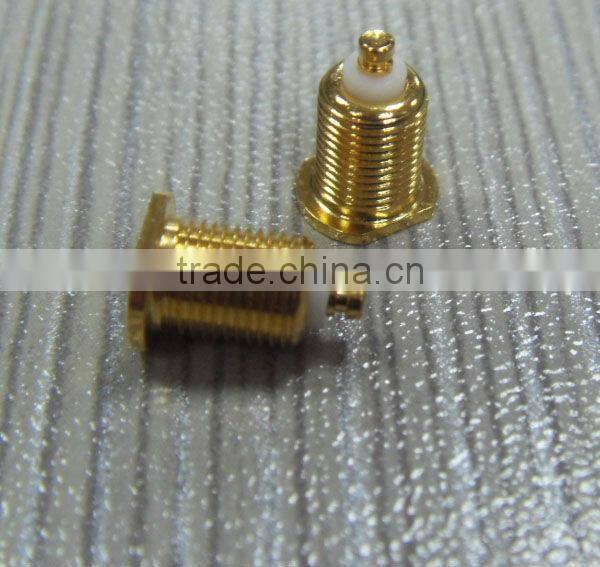

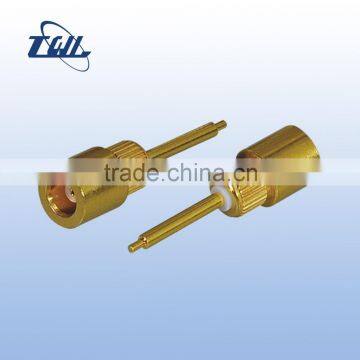

MCX Female Coaxial RF Connectors
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Description
Quick Details
| Place of Origin: | Brand Name: | Model Number: | |||
| Type: | Application: | Gender: | |||
| frequency range: | withstanding voltage: | insulation resistance: | |||
| contact resistance(inner): | contact resistance(outer): | RF leakage(1GHz/flexible): | |||
| RF leakage(1GHz/semi-rigid cable): |
Packaging & Delivery
| Packaging Details: | Foam,carton,blister,vacuumize |
| Delivery Detail: | 15 days |
Specifications
1.factory/manufacturer
2.OEM&ODM
3.MIL-C-39012,ISO9001:2008,ISO14001:2004
4.RoHS compliant
Specification
characteristic Impedance 50Ω
frequency Range 0-6GHz
withstanding voltage ≥750V,50Hz
working voltage ≥170V,50Hz (see level)
≥42V,50Hz (height 21000m
insulation Resistance 1000mΩ
contact Resistance inner conductor ≤5mΩ
outer conductor ≤1mΩ
RF leakage(1GHZ) flexible ≥60dB
semi-rigid cable ≥70dB
Performance description
The series of mcx connector is a type of mniature pushing connector,with considerable merits as easy insert-pull,firm connection and excellent antiknock performance
Material facts
pin conductor brass/beryllium copper--gold plated
body brass/beryllium copper--gold plated / ternary alloy (Cu+Zn+Sn)
plug beryllium copper--gold plated
outer conductor jack beryllium copper--gold plated
plug brass--ternary alloy (Cu+Zn+Sn)
crimping sleeve brass--gold plated
Insulator PTFE / PFA
Customization available
1.Able to conduct powder spraying for 30 minutes in 200 centigrades
2.Twinlink proficient R*D team are ready to spring into action
Certificates examination
CECC22220,ISO14001,SGS,RoHS,ISO9001:2008,ISO14001
How to order mcx coaxial connector
To send us your specific engineering parameters such as IMD,V.S.W.R,plating,etc.And we will discuss with you about the details

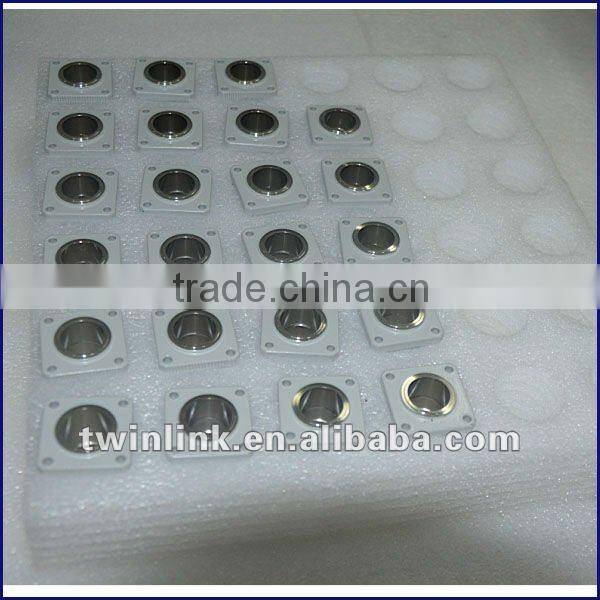

Packing illustration

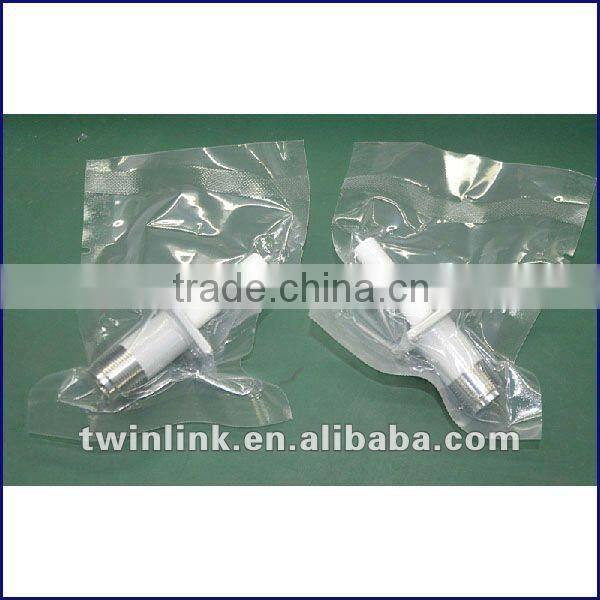

Vacuumize

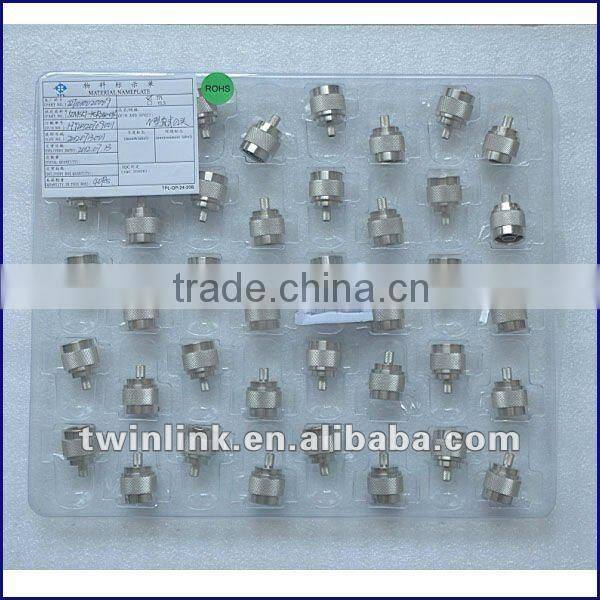

Blister
Foam
Inner packing
