Product Details
| Place of Origin | Guangdong, China | Brand Name | TWL | |
| Model Number | RG316 |
Product Description
SMA Male to SMA Male with RG316 Coaxial Cable
Specification:
Type name | SMA Male to SMA Male with RG316 Coaxial Cable | |
Impedance | 50Ω | |
Vibration | 100m/S2 (10~500Hz) | |
Frequency Range | DC-7.5GHz | |
Insertion Loss | ≤ 0.15dB/6GHz | |
Withstanding Voltage | 4000V r.m.s at sea level | |
Working Voltage | 2700Vr.m.s at sea level | |
Average power | 3Kw max | |
Insulation Resistance | ≥ 10000 MΩ | |
Center conductor retention force | ≥ 6N | |
Durability | ≥ 500(cycles) | |
Contact resistance: | CenterContact ≤ 0.4mΩ | |
Outer Contact ≤ 1.5mΩ | ||
Voltage Standing Wave Ratio: | Straight | ≤ 1.20/6GHz |
Right angle | ≤ 1.35/6GHz | |

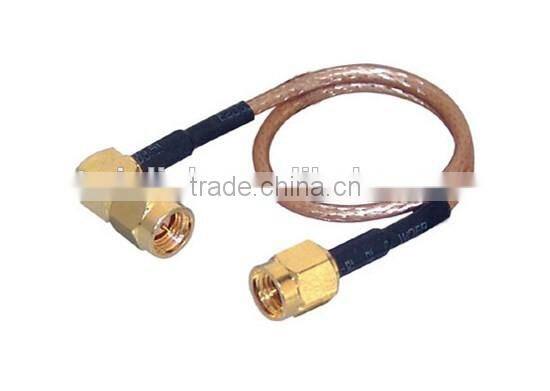

Picture Show:

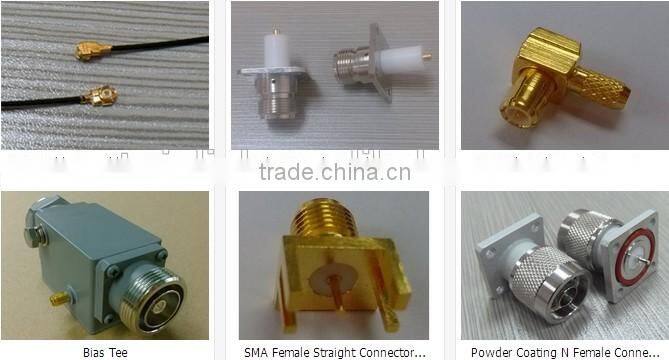

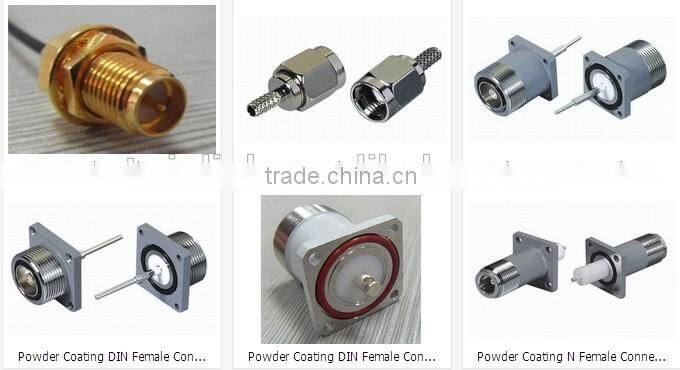

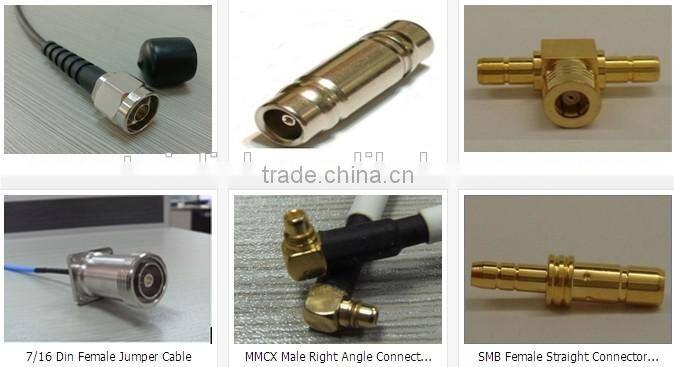

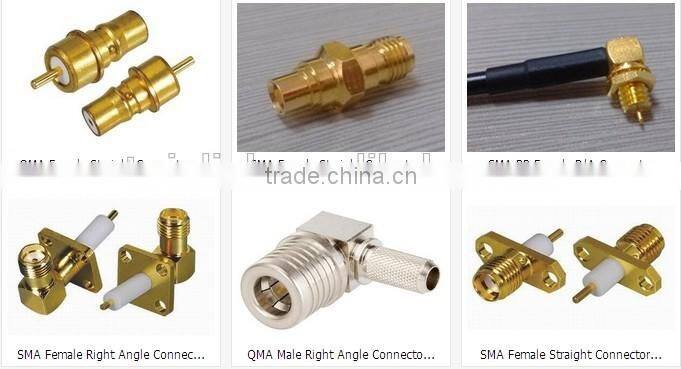

More Related Products:
What we could do for you:
1 Factory sell directly
2 Long-term,strong and steady supplying ability
3 OEM/ODM service available. Do as your requirements on package, brand or other designs
4 Strong sales promotion policy
5 Ex-factory price and competitive price
6 Delivery time: 3-5working days

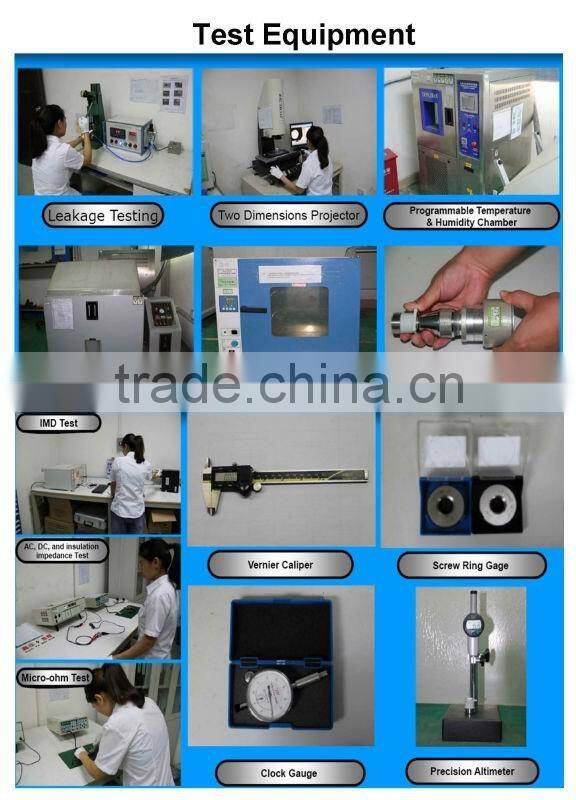

7 We can provide good services. All Goods will be tested before shipping
8 Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)
