Twinlink Communication Professional Sma to Mmcx Connector Series rf Cable Assembly
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Twinlink Communication Professional Sma Male to Mmcx rf Cable Assembly
-
Communication System BNC Male to SMB Female Crimp Rg179 Cable Assembly
-
RP-SMA Male (Jack) to MCX Right Angle Power rf Connector Cable Assembly Twinlink
-
RP-SMA Male (Jack) to MCX Right Angle Power rf Connector Cable Assembly
-
RP-SMA Male (Jack) to MCX Right Angle Power rf Coaxial Connector Cable Assembly
-
2017 High Quality 4.3-10 Coaxial Male/Female Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | twinlink | |
| Model Number | CAB | Type | SMA | |
| Application | RF | Gender | Male |
Product Description

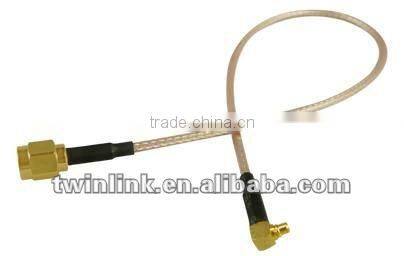

Twinlink communication professional sma to mmcx connector rf cable assembly
| Mechanical Characteristics | |
| Characteristic Impedance: | 50Ω |
| Frequency Range: | Flexible: 0-11GHz |
| Semi-rigid cable: 0-18GHz | |
| Withstand Voltage: | ≥2500V,50Hz |
| Working Voltage: | ≤1000V,50Hz (see level) |
| Insulation Resistance: | ≥5000mΩ |
| Contact Resistance: | Inner conductor: ≤1.0mΩ |
| Outer conductor: ≤0.2mΩ | |
| RF leakage(2-3GHZ): | Flexible: ≥90dB |
| 3rd order intermodulation | ≥140dBc |
| Material | |
| Pin conductor: | Brass--Au plated |
| Shell: | Brass--Ternary Alloy (Cu+Zn+Sn) plated |
| Socket: | Phosphor bronze / Beryllium copper--Au/Ag plated |
| Crimping suite: | Copper--Ternary Alloy (Cu+Zn+Sn) |
| Insulator: | PTFE / PFA |
| Sealing | Silastic |
Applicable Standard |
MIL-C-39012 |
Minimum Testing Standard
1. Waterproof:
IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving.
2. Salt Mist Testing
5% concentration salt mist testing standard
Au plated, minimum 96 hours
Ag plated, minimum 336 hours
CuSnZn3 plated, minimum 336 hours
3. Aging testing
Aging testing equipment temperature standard is minimum 85 degree, take the production out after 24 hours later from the machine, the mechanical characteristics still in the standard range.
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Standard Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
