Specifications
1.Direct factory2.Applied patent
3.Saving energy and the number of workers
4.Operate easily and save
5.Competive price

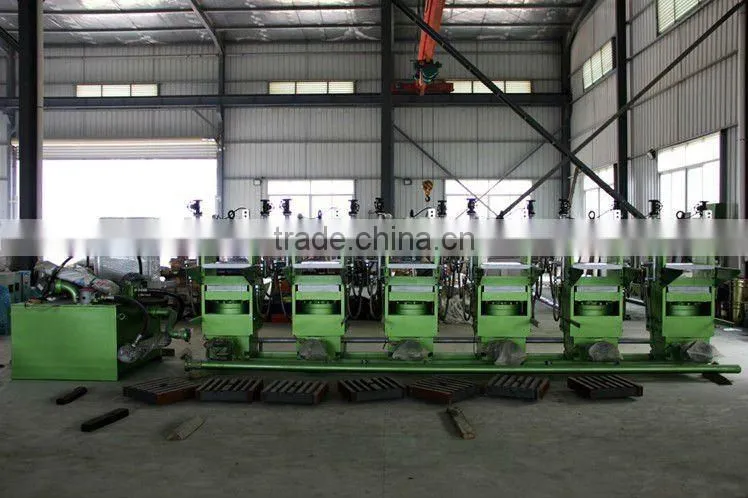

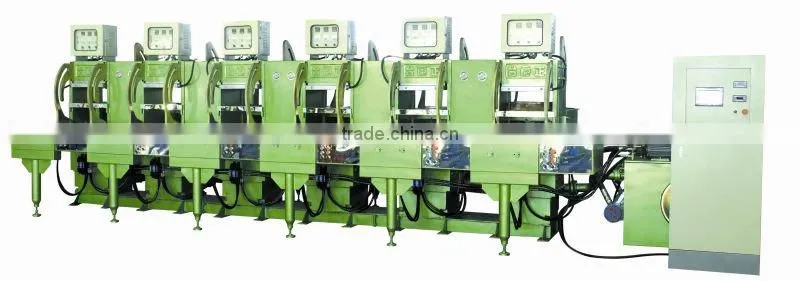

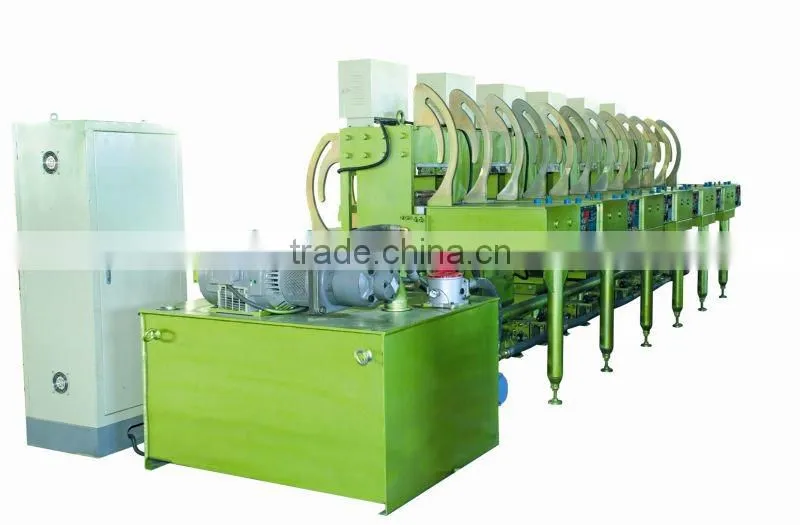

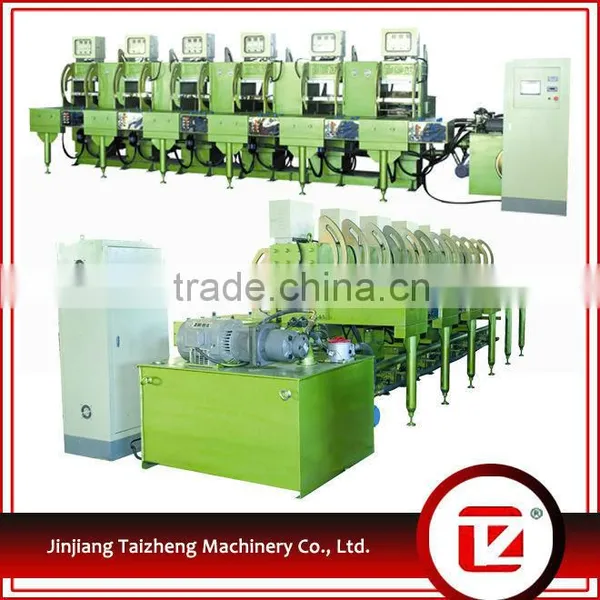

Rubber shoe sole making machine
Feature:
1. With the special body mechanism design, not fracture or deform, prolonging the service life.
2. Electric control system adopts the world famouse brand PLC and man-machine interface control, without mutual interference to come true independent operation.
3. Hydraulic control system adopts the logic circuit, does not easy to leak oil and keep the pressure constant.
4. The time and number of bleeding can be set freely and independently to adjust.
5. The machine is set of automatic mold-opening equipment. It's easy to operate and saving the number of workers.
6. Wether single-color or two-color is free control, and the monolayer or double-layer is independent control.
Technique Parameters:
| Model | TZ-6S |
| Total output of hydraulic cylinder | 150tons |
| Hot plate size | 450*500mm |
| Spacing | 180mm |
| Number of piles | 2 |
| Heating mode |
steam, heat conducting oil, electric heating |
| Motor | 20HP |
| Output | 2400pc/8hr |
