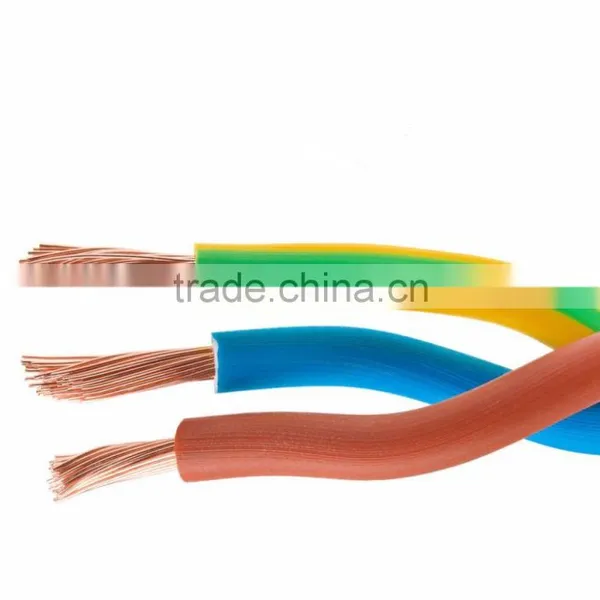

flexible core pvc insulated electric copper wire
1). Voltage: 300/500V, 450/750V
2). Application:electric equipment, household, and electrical appliance.
3). Specification (Electrical wires series include the following) :
* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
* Stranded copper conductor, PVC insulated single core electrical wire
* Solid copper conductor, PVC insulated and PVC sheathed round multi-core electrical wire
* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
* Flexible copper conductor, PVC insulated single core electrical wire
* Flexible copper conductor, PVC insulated twin parallel electrical wire
* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrical wire
4). Standards :IEC60227 DIN VDE0281-5 BS6004/6007/6360N AS/NZS etc.
5). Norminal cross section size of conductor:
0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2
Additional Choice For PVC insulated Electrical Wires:
1. Low Smoke Halogen Free Retardant Property.
2.Fire Resistant Property (To use the mica tape wrapped the conductor)
3.Hight Tempreture Resistant (Siliocone Rubber/FER insulated)
4.The conductor can be copper or aluminum,copper can be flexible or solid
5.The types of multi-core cable canbe round or flat as per requirement
6.The products are used for houseusuage, building, construction etc.
