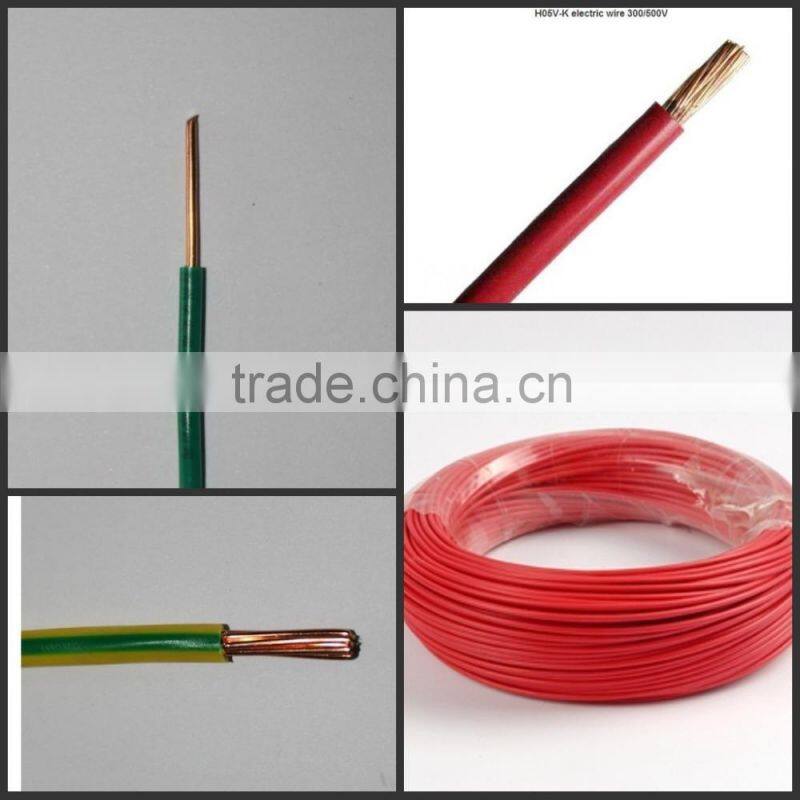

H05V-U H05V-R H05V-K electrical copper wire
1). Voltage: 300/500V, 450/750V
2). Application:electric equipment, household, and electrical appliance.

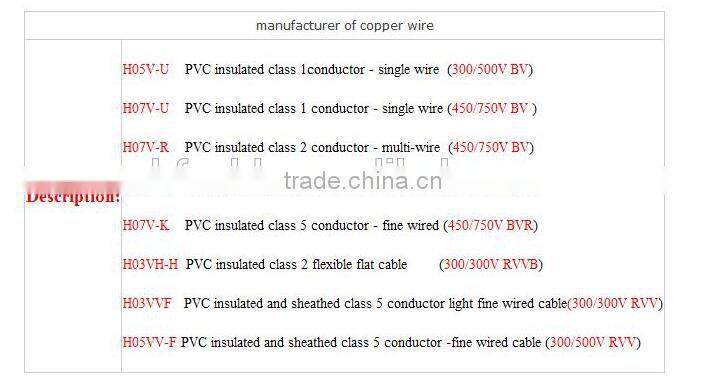

3). Specification (Electrical wires series include the following) :
* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
* Stranded copper conductor, PVC insulated single core electrical wire
* Solid copper conductor, PVC insulated and PVC sheathed round multi-core electrical wire
* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
* Flexible copper conductor, PVC insulated single core electrical wire
* Flexible copper conductor, PVC insulated twin parallel electrical wire
* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrical wire
4). Standards :IEC60227 DIN VDE0281-5 BS6004/6007/6360N AS/NZS etc.
5). Norminal cross section size of conductor:
0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2
H05V-U Technical Data:
Conductor: bare copper conductor
Insulation:PVC
Temperature:
during installation:+5 ℃ up to +70 ℃
fixed installed:-30 ℃ up to +70 ℃
at short circuit of max.5s:up to 160℃
ambient temperature at storage:up to 40 ℃
Nominal Voltage:U0/U=300/500
Testing Voltage:2000V
Minimal inner bending radius:4D
Behaviour in fire:IEC 60332-1
