Specifications
electromagnetic vibrating feedersmall in size,light in weight
easy maintenance,easy to adjust
work long span life
manufactu
----Introduction:

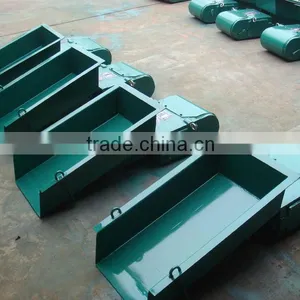

Electromagnetic vibrating feeder can feed bulk or granuled materials from the storage bin to the receiving device evenly and continuously. It can realize even feeding for crushers in sand stone production line and make rough screening for materials. Vibrating feeder is widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.
----Working Principle:
When the power is on, the electric current passes the electric coils, which creates a magnetic field. The magnetic force changes into vibrating force, which forces the transmission trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the transmission trough body, which causes the forward motion and transmission of the materials.
----Features:
1. Exclusive vibrating technology.
2. Small size and light in weight.
3. Simple structure, easy to install and use, low maintenance cost.
4. High efficiency and feeding capacity.
5. Good operational reliability and easy adjustment.
----Specification:
Model No. |
Feeding capacity (t/h) |
Max. feeding size (mm) |
Double amplitude (mm) |
Voltage (V) |
Electric current (A) |
Power (kw) |
Weight (kg) |
|
Level angle |
-10° angle |
|||||||
GZ-1 |
5 |
7 |
50 |
1.75 |
220 |
1.34 |
0.06 |
77 |
GZ-2 |
10 |
20 |
50 |
3 |
0.15 |
151 |
||
GZ-3 |
25 |
35 |
75 |
4.6 |
0.25 |
233 |
||
GZ-4 |
35 |
50 |
85 |
6.8 |
0.35 |
300 |
||
GZ-5 |
50 |
70 |
100 |
8.4 |
0.45 |
412 |
||
GZ-6 |
100 |
140 |
150 |
12.7 |
0.65 |
650 |
||
GZ-7 |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
1.5 |
1250 |
GZ-8 |
250 |
350 |
250 |
24.6 |
3 |
1920 |
||
GZ-9 |
400 |
560 |
300 |
39.4 |
4 |
3050 |
||
GZ-10 |
600 |
840 |
350 |
47.6 |
5.5 |
3750 |
||
GZ-11 |
1000 |
1400 |
500 |
47.6×2 |
5.5×2 |
7680 |
||
Catalogue: | |
Conveyor belt metal detector |
Self cleaning permanent magnetic separator |
Air cooling self cleaning electromagnetic separator |
Air cooling electromagnetic separator |
Wind cooling self cleaning electromagnetic separator |
Wind cooling electromagnetic separator |
Oil cooling self cleaning electromagnetic separator |
Oil cooling electromagnetic separator |
Manual cleaning permanent magnetic separator |
Electromagnetic vibrate feeder |
Magnetic roller |
Magnetic ferrous traps |
