Liquid line separator
- 100 Set / Sets per Month
- qingdao tianjin shanghai
- T/T Credit Card
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Magnetic Separator | Place of Origin: | Shandong, China |
Brand Name: | longte | Model Number: | LYSC | Weight: | 19-420kg |
Certification: | ISO 9001:2008 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

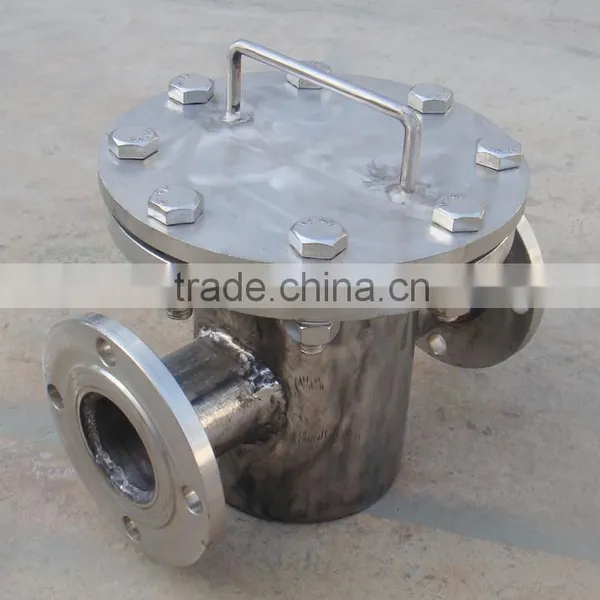

Liquid line separator for liquid materialmanual cleaning tramp iron
install:connect liquid material pipeline
manufacturer
----Introduce:
Liquid line separator can enhance the purity grade of the raw material and remove the ferrous impurities from the liquid slurry raw material.
It is the ideal liquid wet type permanent magnetic separator.
----Applications:
Liquid line separator are suitable for liquid filtration and separation in pipe line. The magnetic tubes within Liquid line separator catch the ferrous impurities contamination in a product and it flows through the processing line thereby protecting product purity and preventing abrasive wear, prevents pumps from jamming, reduced damage and maintenance to mixers, refiners, filters, pumps etc. end assures a product free of iron contamination.
----How to clean the ferrous impurities:
Liquid line separator can directly connect with the liquid material pipeline.When ferrous impurity need to clean, open the outlet impurity ,draw the magnetic tubes and get rid of it. Then replace the magnetic tubes and close the outlet impurity.
----Technical specifications:
Model | Application | diameterφ(mm) | Weight(kg) | A | B | C | H | N | M | φ1 | φ2 |
LYSC-50 | Liquid | 50 | 19 | 115 | 85 | 250 | 270 | 8 | 14 | 125 | 150 |
LYSC-65 | 65 | 27.3 | 120 | 105 | 360 | 380 | 8 | 14 | 165 | 192 | |
LYSC-80 | 80 | 30.5 | 130 | 155 | 360 | 380 | 8 | 18 | 210 | 240 | |
LYSC-100 | 100 | 45 | 130 | 180 | 380 | 405 | 8 | 18 | 240 | 270 | |
LYSC-125 | 125 | 56.5 | 145 | 190 | 420 | 430 | 8 | 18 | 270 | 300 | |
LYSC-150 | 150 | 72 | 180 | 190 | 450 | 465 | 8 | 18 | 300 | 330 | |
LYSC-200 | 200 | 120 | 235 | 250 | 500 | 520 | 8 | 18 | 360 | 390 | |
LYSC-250 | 250 | 19 | 265 | 280 | 530 | 640 | 12 | 18 | 395 | 425 | |
LYSC-300 | 300 | 270 | 285 | 300 | 600 | 680 | 12 | 23 | 450 | 485 | |
LYSC-350 | 350 | 350 | 325 | 340 | 680 | 750 | 12 | 23 | 500 | 540 | |
LYSC-400 | 400 | 420 | 340 | 355 | 750 | 800 | 16 | 23 | 550 | 600 |
----Equipment detail:
----Package:
