914-400 Floor Type Roll Forming Machine

914-400 Floor Type Roll Forming Machine thumbnail-1
914-400 Floor Type Roll Forming Machine photo-1
US$ 30,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Roof
Place of Origin Liaoning, China
Brand Name PR
Model Number PRO-914-400
Power(W) 17.9KW
Voltage 380V
Dimension(L*W*H) 8900mm * 2230mm *2300mm
Weight 10T
Certification CE/ISO9001
Warranty 13months after B/L date
After-sales Service Provided Engineers available to service machinery overseas

914-400 arch sheet roll forming machine



1.Technical parameter

Main Technical Specification:
Size: 8900mm × 2230mm × 2300mm
Total Weight: about 10000KG
Feeding Width: 914mm
Effective Width: 400mm
Proper span: ≤40m
Sheet operating factor: 43.8%





 2.Profile

914-400 Floor Type Roll Forming Machine

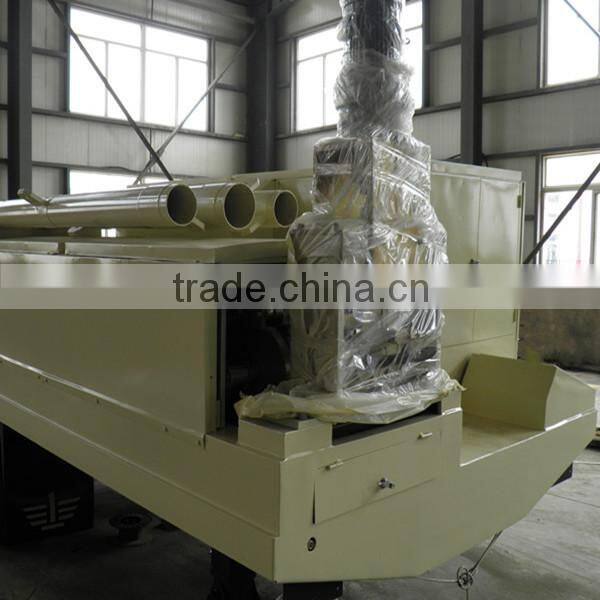

3.Picture of the product

914-400 Floor Type Roll Forming Machine

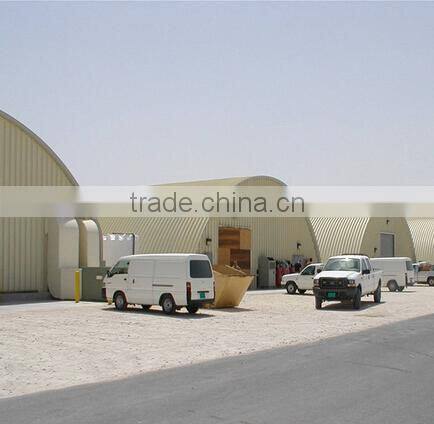

4.Arch roof project

914-400 Floor Type Roll Forming Machine





5.Model list of PR Roll Forming Machine:



Model

Feeding width

(mm)

Effective width

(mm)

Depth of groove

(mm)

utilization ratio

Thickness of steel coil

(mm)

Largest span (m)

PRO-600-300

600

300

100

50%

0.6-1.5

30

PRO-600-305

600

305

109

50.8%

0.6-1.5

28

PRO-914-400

914

400

210

43.7%

0.6-1.5

40

PRO-914-610

914

610

203

66.7%

0.6-1.5

38

PRO-914-650

914

650

181

71.1%

0.6-1.5

26

PRO-914-700

914

700

123

76.5%

0.6-1.5

22

PRO-914-750

914

750

180

82%

0.6-1.5

14

PRO-1000-610

1000

610

243

61%

0.6-1.5

42

PRO-1000-680

1000

680

223

68%

0.6-1.5

38

PRO-1000-700

1000

700

175

70%

0.6-1.5

30

PRO-1000-750

1000

750

138

75%

0.6-1.5

24

PRO-1000-800

1000

800

114

80%

0.6-1.5

18

PRO-1200-800

1200

800

265

67%

0.6-1.5

40

PRO-1220-800

1220

800

355

66%

0.6-1.5

42

PRO-1250-800

1250

800

320

64%

0.6-1.5

45






6.Working flow:

     Decoiler-----feeding------roll forming ------pressing----- cutting----output table
