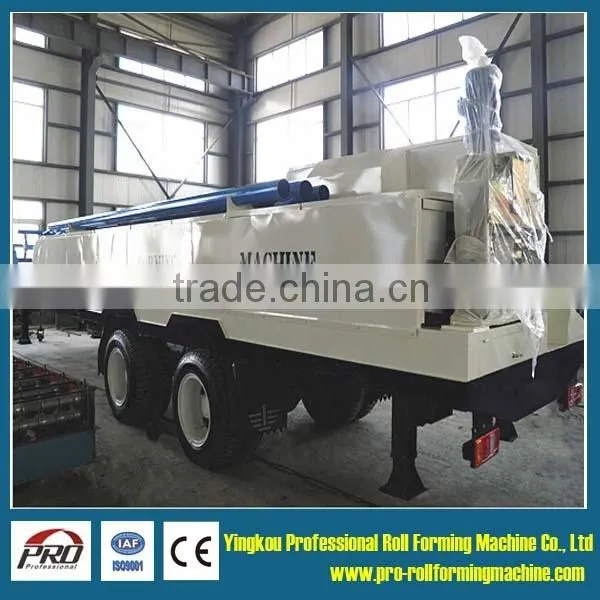

1000-800 Floor Type Roll Forming Machine

1000-800 Floor Type Roll Forming Machine thumbnail-1
1000-800 Floor Type Roll Forming Machine photo-1
US$ 30,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Roof
Production Capacity 80%
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO-240(1000-800)
Power(W) 17.9KW
Voltage 380V
Dimension(L*W*H) 8900mm * 2230mm* 2300mm
Weight 10T
Certification CE
Warranty 13 months after B/L date
After-sales Service Provided Engineers available to service machinery overseas

PR-1000-800 Arch sheet roll forming machine





1.Technical parameters



Main Technical Specification:
Size: 11650mm × 2230mm × 2400mm
Total Weight: About 12000KG
MainMotorPower:18.9KW
Bending power: 3.0kw+1.1x2kw
Sewing power: 2.2kw
Cutting power:4.0kw
Forming power:7.5kw
Working Speed:  Straight sheet: 15m/min
                                  Arch sheet: 13m/min
                                       Sewing: 16m/min
Feeding Width: 1000mm
Effective Width: 800mm
Step of rollers: 14 steps
Controlling system: PLC (Ormon)
Material of cutting blade: Cr12 moV
Sheet operating factor:80%
Thickness of the coil: 0.6-1.5mm
Material of roller shaft: 45# steel, galvanized
Material of rollers: 45# steel, quenched with hard chrome
Type of cutting: Roll-formed and length-set cutting
Electric Standard : 380V / 50 HZ / 3 PHASE
The depth of the groove:114mm
Proper span: ≤18m
Ship Container: 40`HQ x 1



 2.Profile

1000-800 Floor Type Roll Forming Machine

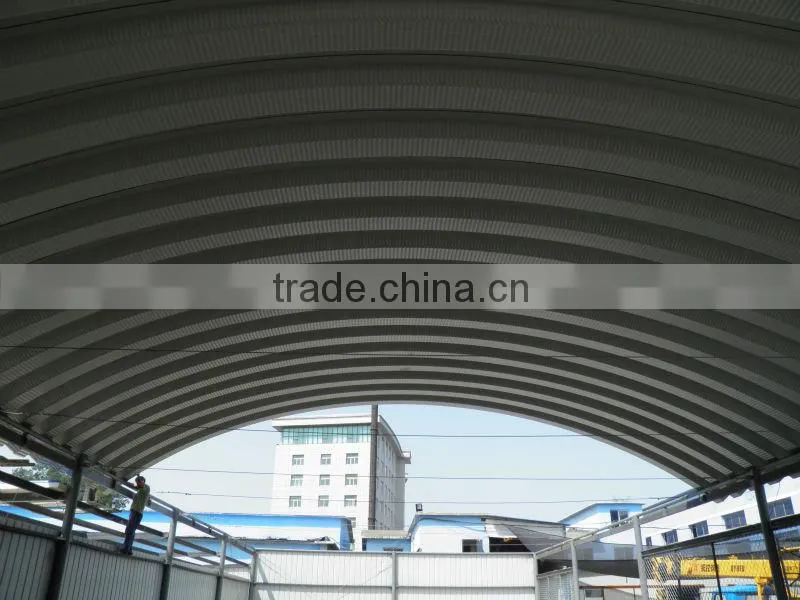

3.Arch roof project

1000-800 Floor Type Roll Forming Machine





4.Model list of PR Roll Forming Machine:



Model

Feeding width

(mm)

Effective width

(mm)

Depth of groove

(mm)

utilization ratio

Thickness of steel coil

(mm)

Largest span (m)

PRO-600-300

600

300

100

50%

0.6-1.5

30

PRO-600-305

600

305

109

50.8%

0.6-1.5

28

PRO-914-400

914

400

210

43.7%

0.6-1.5

40

PRO-914-610

914

610

203

66.7%

0.6-1.5

38

PRO-914-650

914

650

181

71.1%

0.6-1.5

26

PRO-914-700

914

700

123

76.5%

0.6-1.5

22

PRO-914-750

914

750

180

82%

0.6-1.5

14

PRO-1000-610

1000

610

243

61%

0.6-1.5

42

PRO-1000-680

1000

680

223

68%

0.6-1.5

38

PRO-1000-700

1000

700

175

70%

0.6-1.5

30

PRO-1000-750

1000

750

138

75%

0.6-1.5

24

PRO-1000-800

1000

800

114

80%

0.6-1.5

18

PRO-1200-800

1200

800

265

67%

0.6-1.5

40

PRO-1220-800

1220

800

355

66%

0.6-1.5

42

PRO-1250-800

1250

800

320

64%

0.6-1.5

45









5.Working flow:

    Decoiler-----feeding------roll forming ------pressing----- cutting----output table
