Color Steel Silo Spiral Silo Machine Manufacturers

Yingkou Professional Roll Forming Machine Co., Ltd.
Color Steel Silo Spiral Silo Machine Manufacturers thumbnail-1
Color Steel Silo Spiral Silo Machine Manufacturers thumbnail-2
Color Steel Silo Spiral Silo Machine Manufacturers thumbnail-3
Color Steel Silo Spiral Silo Machine Manufacturers thumbnail-4
Color Steel Silo Spiral Silo Machine Manufacturers thumbnail-5
Color Steel Silo Spiral Silo Machine Manufacturers thumbnail-6
Color Steel Silo Spiral Silo Machine Manufacturers photo-1
Color Steel Silo Spiral Silo Machine Manufacturers photo-2
Color Steel Silo Spiral Silo Machine Manufacturers photo-3
Color Steel Silo Spiral Silo Machine Manufacturers photo-4
Color Steel Silo Spiral Silo Machine Manufacturers photo-5
Color Steel Silo Spiral Silo Machine Manufacturers photo-6
US$ 40,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
PRO
Model Number:
PRO-SM40
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO-SM40
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Color Steel Silo Spiral Silo Machine Manufacturers

Detailed Images

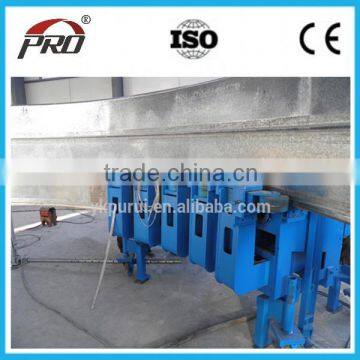

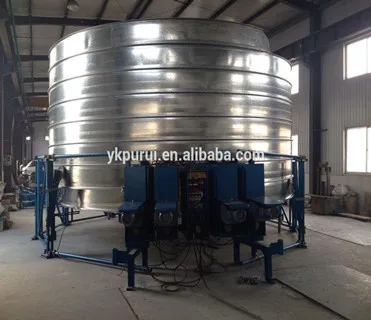

Working

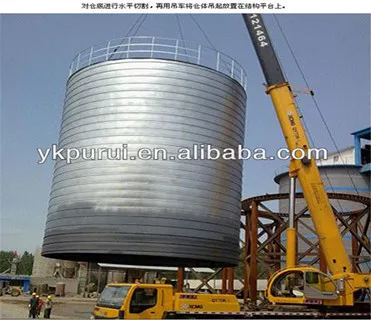

Project

Specifications
1.Electrical equipment power: 27kw
2.Raw material width: 495mm
3.Finished width: 350---370mm
4.Material thickness:2-4mm


Product description
Application:making circular metallic container
Working process:
Through the 5 forming procedures and 5 kind of steel strip forming merge suturing machine steel strip(thickness:2-4mm;495mm)will be merged forcedly and suture spirally to make cylinder with 4-50m of different diameters.

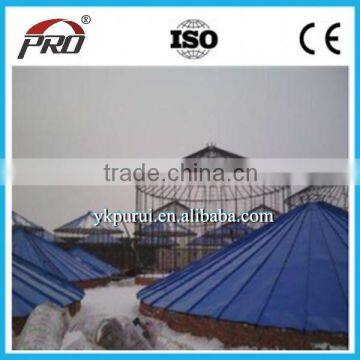

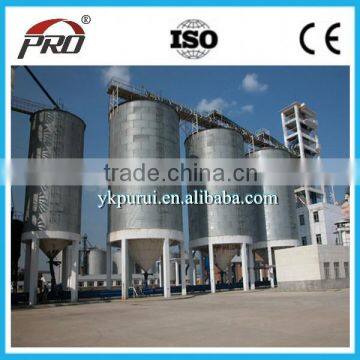

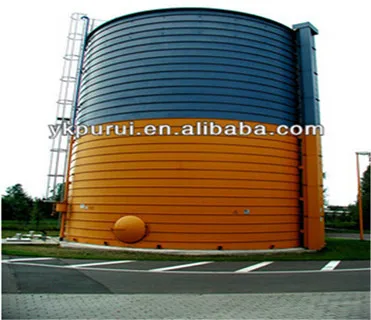

These steel cylinders are used widely:
1. Material shape (storage): granular material, powder material, liquid material

2. Industry: grain, feed brewing, oil, medicine, food, cement, water treatment

3.Concrete variety(storage): wheat, soybean, maize, sorghum wheat flour, bulk cement  fly-ash, sewage, water, chemical syrup
Features of Rx4.0m/m steel strip forming machine
1. Rx4.0m/m steel strip forming merging and suturing machine units is a new type of machine in our company. It is used to produce the Circular Metallic Container, developed from LIPP-SM40 forming machine, improved and holding
 the same function of LIPP-SM40 forming machine.

2.Rx4.0m/m steel strip forming merging and suturing machine units also have its own advantages, such as convenient to be repaired, avoid installing with different diameter, saving the time and cost of installing. This unit is produced by the Hi-strength Alloy steel, making the operating life longer.
Main technical parameter:
1. Constituent part:
(1)Forming machine: making the material bend and initial machine-shaping, meanwhile, it will bend the material to the silo required radius of curvature.
(2)Bending machine: it will roll cooperate with good molding materials bender seaming together
(3)Load bearing support: Given the right diameter of silo. Lifting of the steel silo enclose the top of load bearing
support ollers, it can support the spiral rising silo.
(4)Decoiler: Moving steel coils that put on the decoiler, making steel coils can into forming machine successfully.
(5)Join frame: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.
2.Weight of machine part:
(1)Forming machine——3300 kg
(2)Bending machine——3550 kg
(3)Decoiler——230 kg
(4)Load bearing support——80kg
(5)Joint Frame——38kg
3
(1) Required thickness of raw material:
A,Galvanized sheet——1.5---3mm
B,Dark steel sheet——1.5---3mm
C,Chromated nickel steel sheet——1.5---2.5mm
D,Plastic coatings steel sheet——1.5---3mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m——25m
(5)Electrical equipment power: 9x3kw=27kw

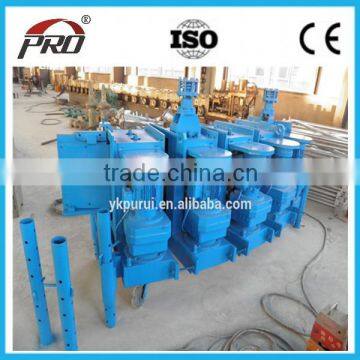

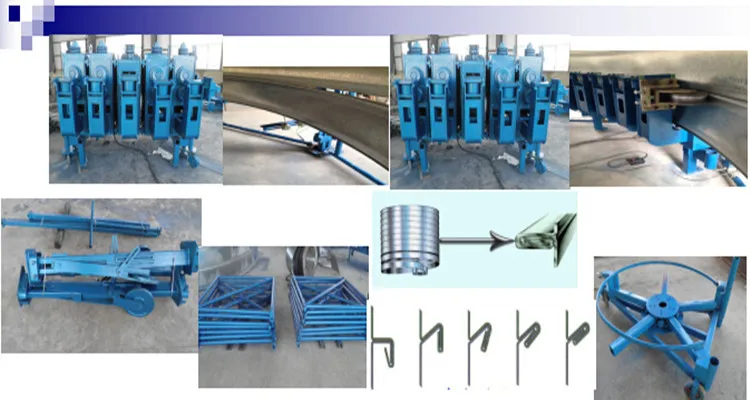

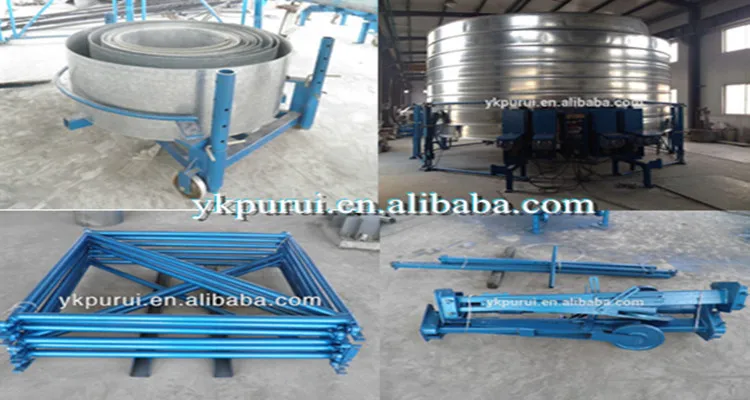

The complete equipment parts

Main technical parameter:
(1) Required thickness of raw material:
A,Galvanized sheet——2---4mm
B,Dark steel sheet——2---4mm
C,Chromated nickel steel sheet——2---3mm
D,Plastic coatings steel sheet——2---4mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m---30m

Decoiler:

Size: 1700x1500x900 (mm)

Weight: About 300kg
Application: moving steel coils that put on the decoiler,

making steel coils can into forming machine

successfully.

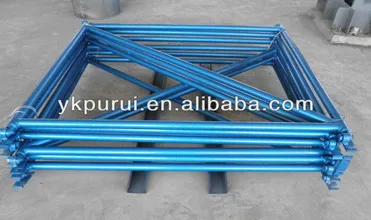

Joint frame

Size: 1600x1600x1500 (mm)
Weight: About 100kg/pcs
Application: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.

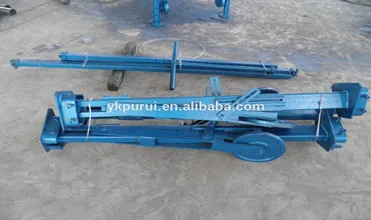

Load bearing support

Size: 1800x400x400 (mm)
Weight: About 50kg/pcs
Application: Given the right diameter of silo, support the spiral rising silo

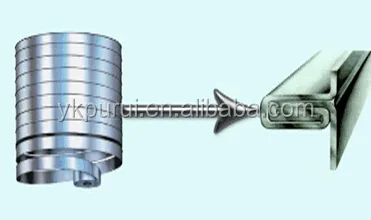

Bending process

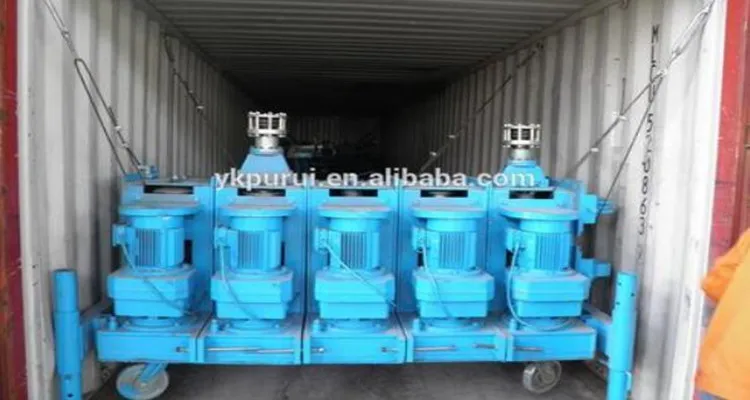

Packing & Delivery

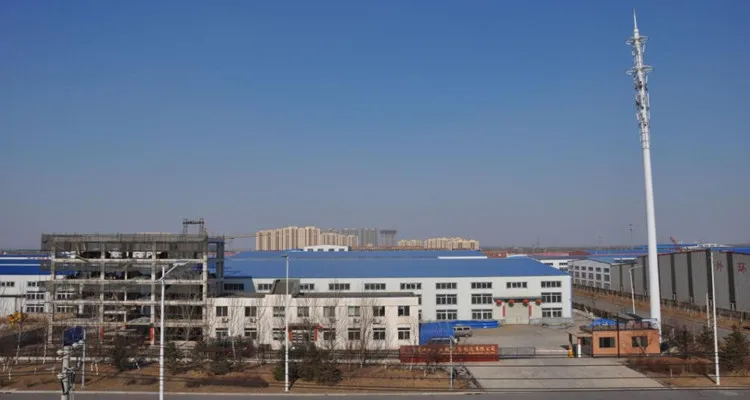

Our Company
