C-shape Steel Purlin Gutter Roll Forming Machine

C-shape Steel Purlin Gutter Roll Forming Machine thumbnail-1
C-shape Steel Purlin Gutter Roll Forming Machine thumbnail-2
C-shape Steel Purlin Gutter Roll Forming Machine thumbnail-3
C-shape Steel Purlin Gutter Roll Forming Machine thumbnail-4
C-shape Steel Purlin Gutter Roll Forming Machine thumbnail-5
C-shape Steel Purlin Gutter Roll Forming Machine thumbnail-6
C-shape Steel Purlin Gutter Roll Forming Machine photo-1

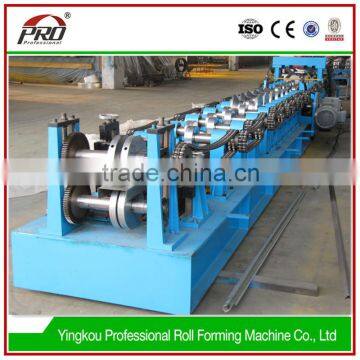

C-shape Steel Purlin Gutter Roll Forming Machine photo-2

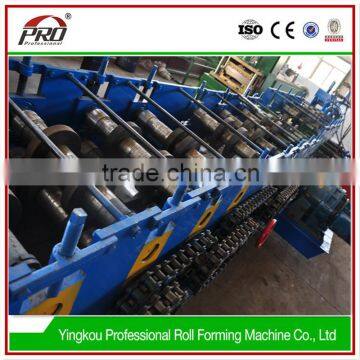

C-shape Steel Purlin Gutter Roll Forming Machine photo-3

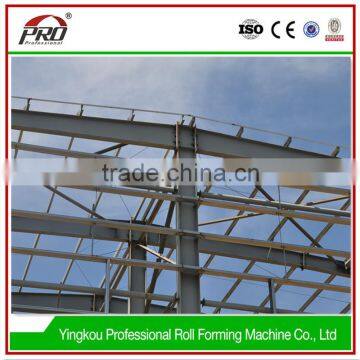

C-shape Steel Purlin Gutter Roll Forming Machine photo-4

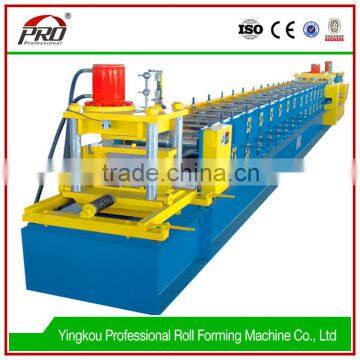

C-shape Steel Purlin Gutter Roll Forming Machine photo-5

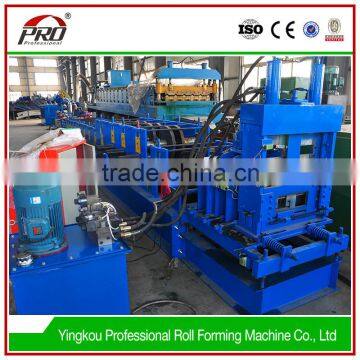

C-shape Steel Purlin Gutter Roll Forming Machine photo-6
US$ 19,500 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze
Use Roof
Production Capacity 8-10m/min
Place of Origin Liaoning, China
Brand Name pro
Model Number pro-C-shape
Power(W) 7.5kw
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 9000*1000*1200(mm)
Weight 5 Tons
Certification CE ISO
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Product Description
1.Rolling material:
2-3mm thickness, yielding strength≤G250 galvanized steel sheet
Frame of machine:
welded with 400H beam steel
Forming Type:
wallboard type, 2 inch chain drive
Step of rollers :
12 steps
Flattening of rollers:
7 steps
Wallboard thickness :
20mm
Debugging type:
manual control
Material of roller :
9CrSi
Material of main shaft :
45# steel, thermal refining
Spindle Diameter :
￠80 mm
Main motor power :
11.11 KW
Hydraulic station motor power :
7.5 KW
Hydraulic station pressure :
12MPa
Material of cutting blade :
 Cr12, quenched.
Cutting type:
Hydraulic cutting, cutting after forming
Cutting type:
no limit cutting
Cut-to-length error
≤±2mm,Seven rollers as flattening, Two rollers as pinching
Electric control system:
 whole machine adopts PLC (Panasonic),touch screen,15kw frequency control
Machine size:
9000x1000x1200(mm)

Equipment configuration :
Feeding device , transmission, main machine and forming roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc. Main rack of the machine is processed on the planer type milling machine.




Detailed Images
Packing & Delivery

Delivery time: 30 working days since receiving buyer's 30% down payment

Payment term: T/T( 30%TT in advanced, 70%TT before the machine shipped).

Guarantee period: 13 months since the date of B/L
