Corrugated Steel Sheet Roll Forming Machine

Corrugated Steel Sheet Roll Forming Machine thumbnail-1
Corrugated Steel Sheet Roll Forming Machine thumbnail-2
Corrugated Steel Sheet Roll Forming Machine thumbnail-3
Corrugated Steel Sheet Roll Forming Machine thumbnail-4
Corrugated Steel Sheet Roll Forming Machine thumbnail-5
Corrugated Steel Sheet Roll Forming Machine thumbnail-6
Corrugated Steel Sheet Roll Forming Machine photo-1

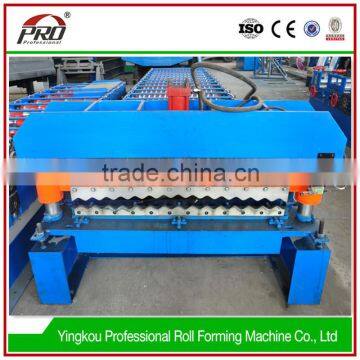

Corrugated Steel Sheet Roll Forming Machine photo-2

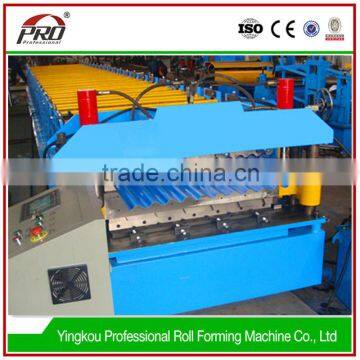

Corrugated Steel Sheet Roll Forming Machine photo-3

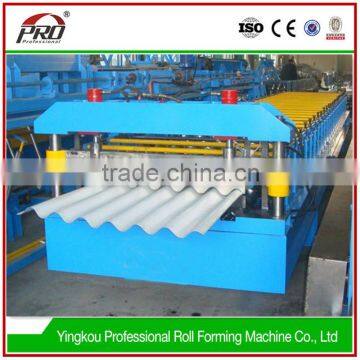

Corrugated Steel Sheet Roll Forming Machine photo-4

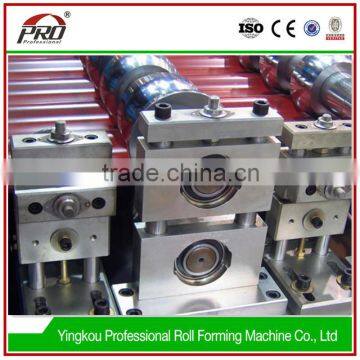

Corrugated Steel Sheet Roll Forming Machine photo-5

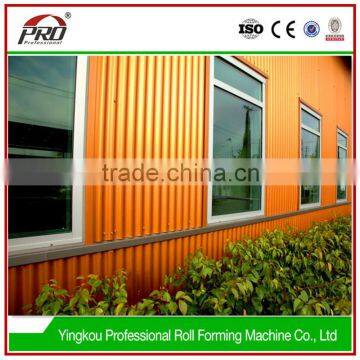

Corrugated Steel Sheet Roll Forming Machine photo-6
US$ 12,500 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze
Use Roof
Production Capacity 8-10m/min
Brand Name PRO-1250-1064
Model Number pro
Power(W) 5.5KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 6500*1300*1100
Weight 5 Tons
Certification CE ISO
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Product Description
De-coiler:
passively de-coiling
Load-bearing of de-coiler:
5 T
Frame of machine:
 welded with 350H beam steel
 Thickness of wallboard:
16mm
Guide feeding way of forming:
side direction roller type
Forming machine type:
wallboard and chain drive
Diameter of shaft:
￠70mm
Chain:
16A single row
Motor power of forming machine:
5.5KW
Line speed of forming machine:
8-10m/min
Steps of forming machine:
15
Roller material:
superior 45# steel forging
Thickness of Chrome plated on roller:
0.05mm
Hydraulic station motor:
3.0 KW, pressure: 8-12Mpa
Hydraulic station oil pump:
gear pump
Cutting blade material:
Cr12
Cutting blade heat treatment:
HRC58º-60
Rolling thickness:
0.3-0.8 mm
Feeding width:
1250mm
Effective width:
1064mm
Precision of cut-to-length:
±2mm
Electrical control system:
Computer adopts PLC (Panasonic),Sanjing Frequency control
Voltage:
380V, 50Hz, 3 Phases.

Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel


Detailed Images
Packing & Delivery

Delivery time: 30 working days since receiving buyer's 30% down payment

Payment term: T/T( 30%TT in advanced, 70%TT before the machine shipped).

Guarantee period: 13 months since the date of B/L.

HS Code:84552210
