Specifications
kaplan turbine:1.Power:200-500kw
2.Water Head:7-15m
3.Runner Diameter:0.8-1m
4.Frequency:50Hz, 60Hz
kaplan turbine:
High Speed Kaplan Turbine
Kaplan turbine(also called axial flow hydroturbine) is suitable for developing medium and low water head power resources. Kaplan turbine with both fixed blade and rotating blade can be provided. The turbine with fixed blade is mainly used for small hydropower station with medium and small capacity and small variation in load, while turbine with rotating blade is used for hydropower station with medium and big capacity and big variation in load.
This is technical parameters of 400kw kaplan turbine unit with runner diameter 0.8m and 1m. High quality and competitive price can be promised.
Hydraulic Turbine |
Turbine Generator |
Valve |
||||||
Runner Diameter(m) |
Design Head(m) |
Design Flow(m3/s) |
Output(KW) |
Speed(r/min) |
Power(KW) |
Voltage(V) |
Efficiency(%) |
Model |
1.0 |
10.5 |
4.69 |
430 |
375 |
400 |
400 |
92 |
Φ1500 Butterfly Valve |
1.0 |
11.5 |
4.28 |
429 |
375 |
400 |
400 |
91 |
Φ1500 Butterfly Valve |
1.0 |
12 |
4.60 |
405 |
500 |
400 |
400 |
92 |
Φ1500 Butterfly Valve |
1.0 |
14 |
3.40 |
395 |
600 |
400 |
400 |
92 |
Φ1400 Butterfly Valve |
0.8 |
14 |
3.40 |
395 |
600 |
400 |
400 |
92 |
Φ1400 Butterfly Valve |
0.8 |
14.5 |
3.40 |
430 |
600 |
400 |
400 |
91 |
Φ1200 Butterfly Valve |
400kw kaplan turbine

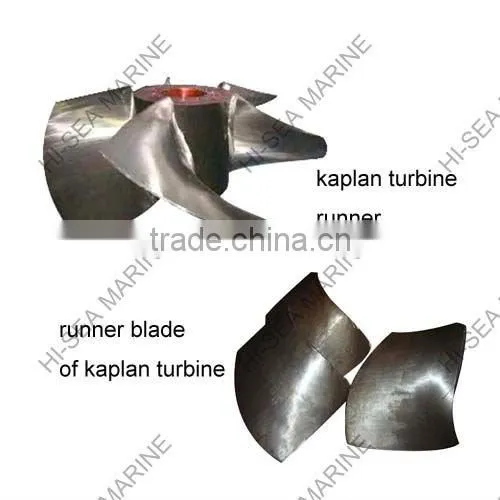

kaplan turbine runner and blade
