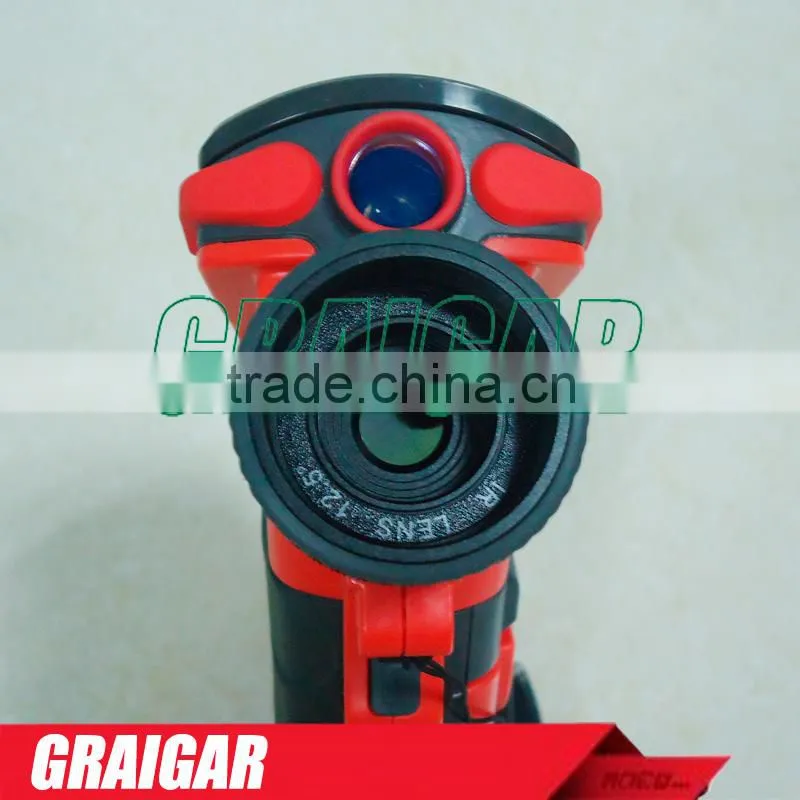

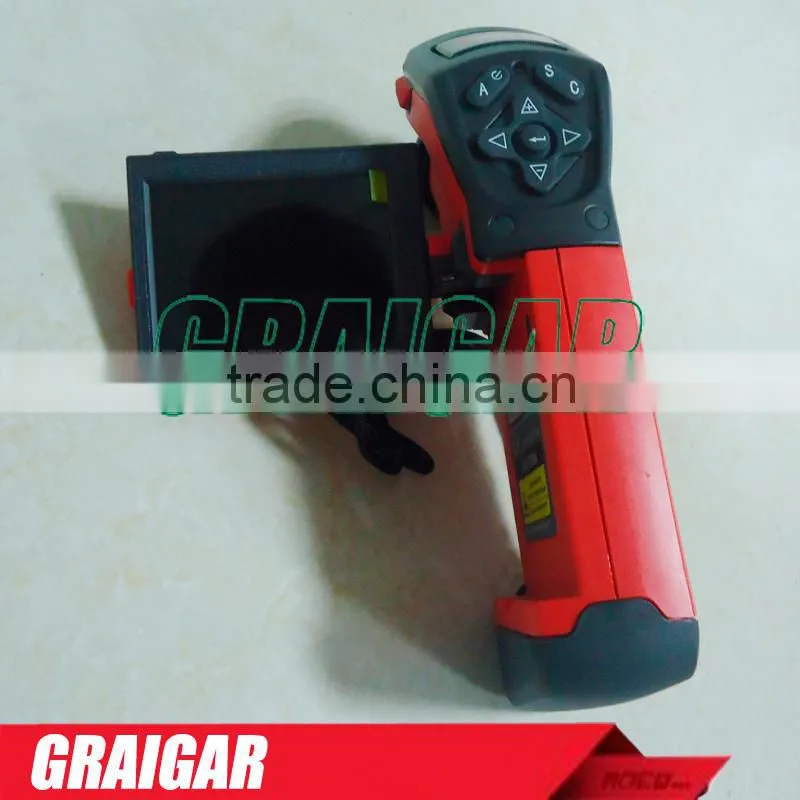

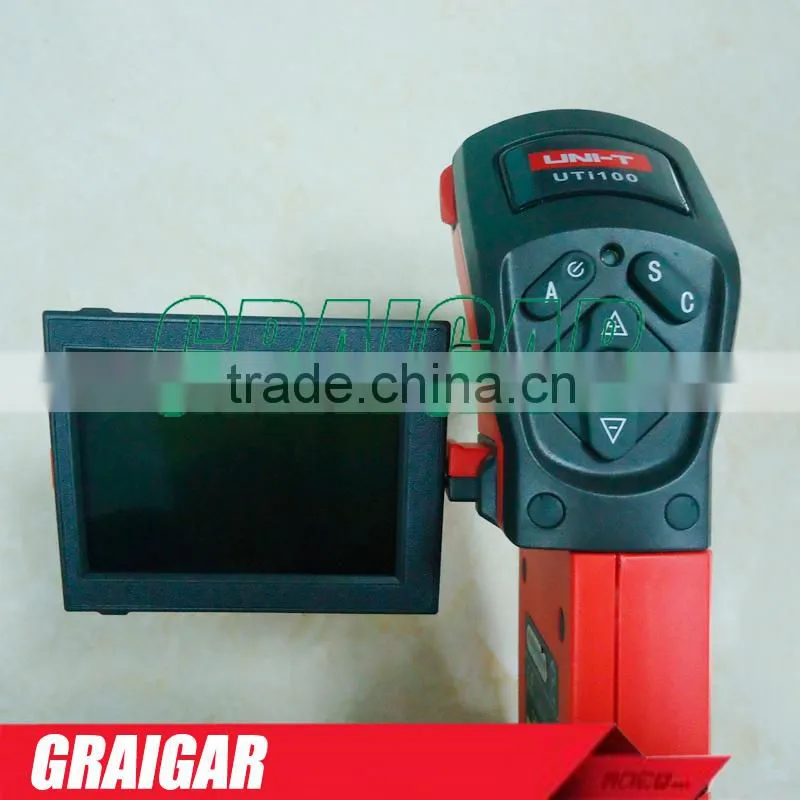

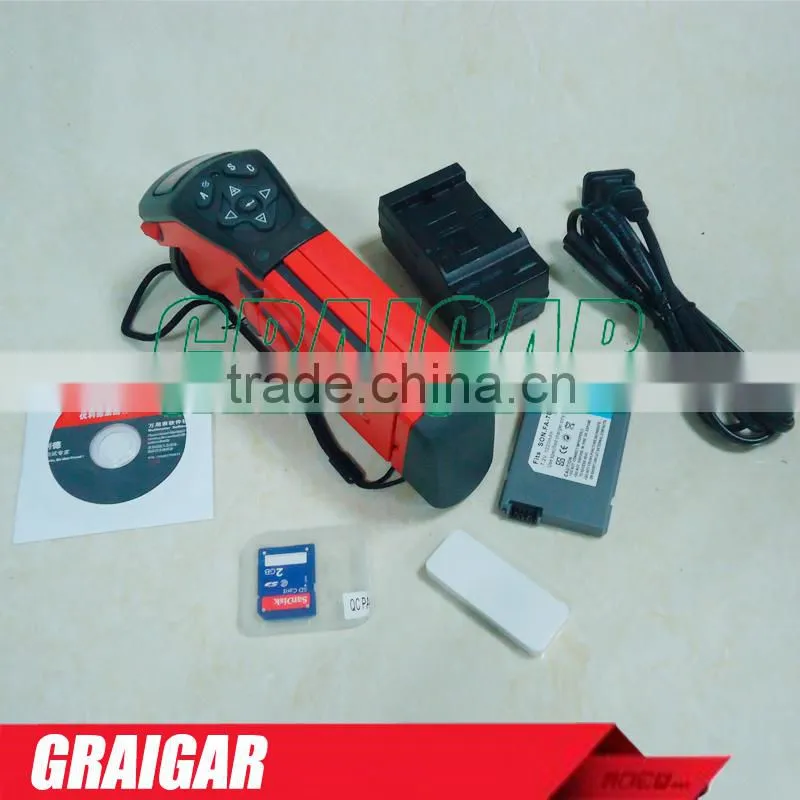

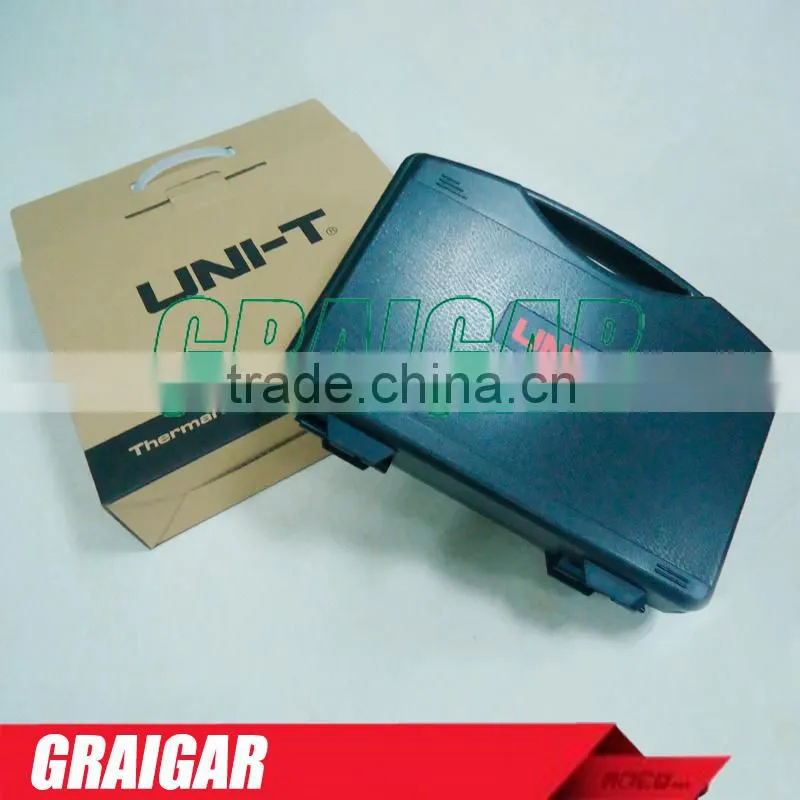

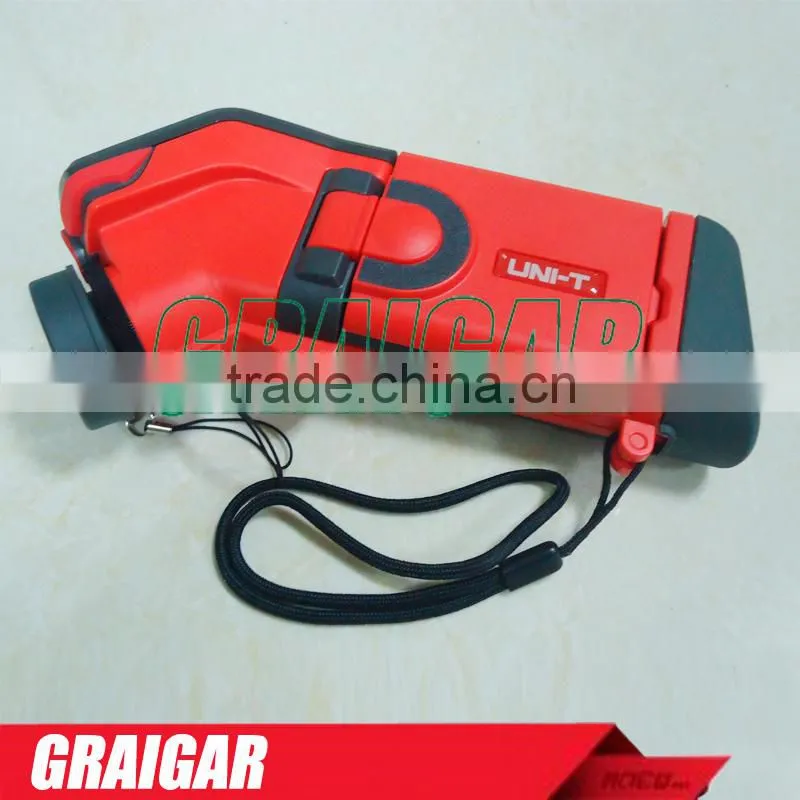

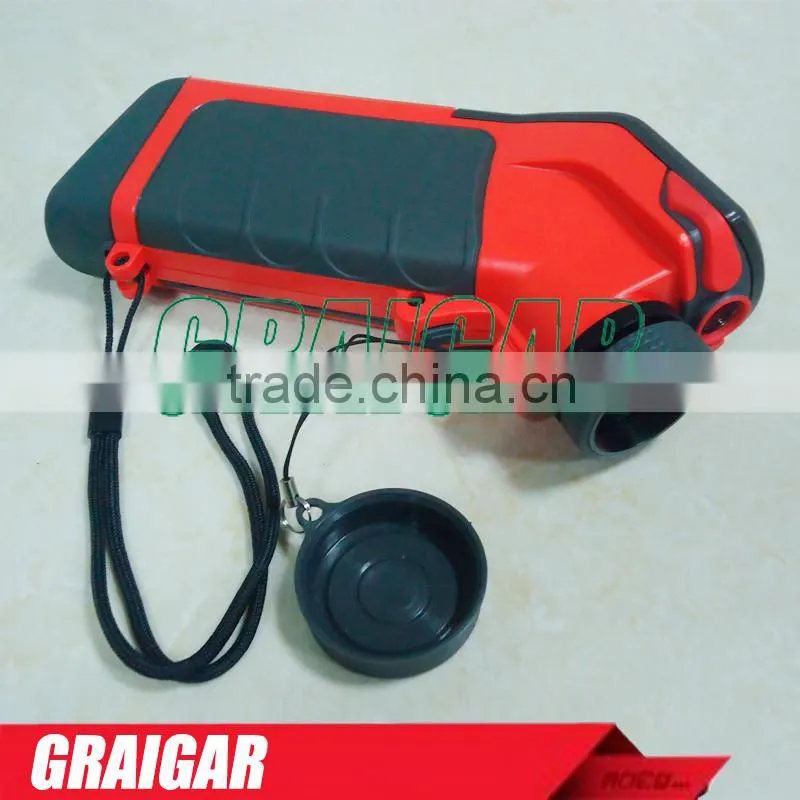

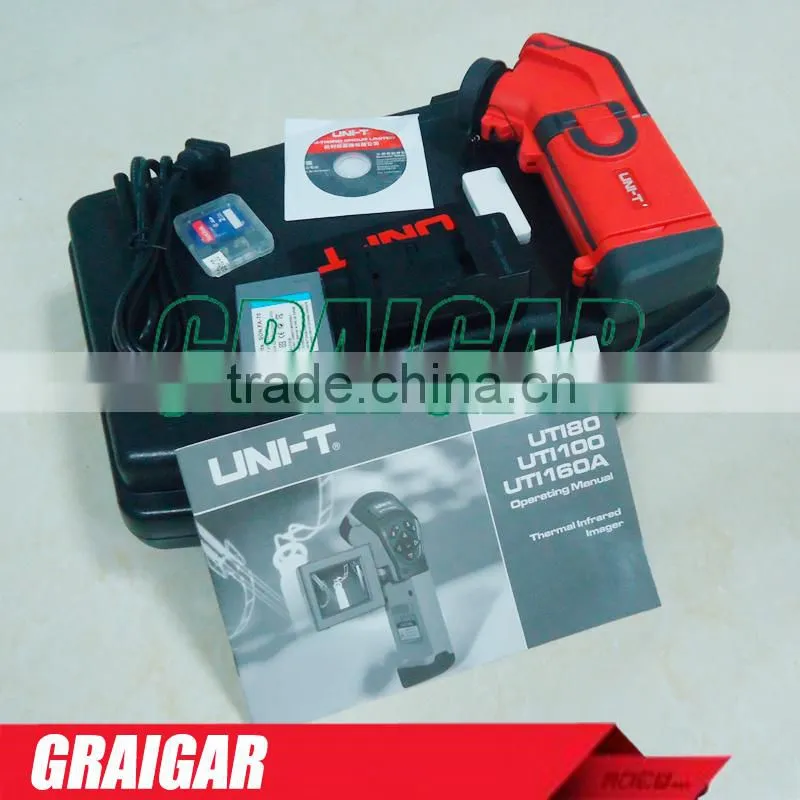

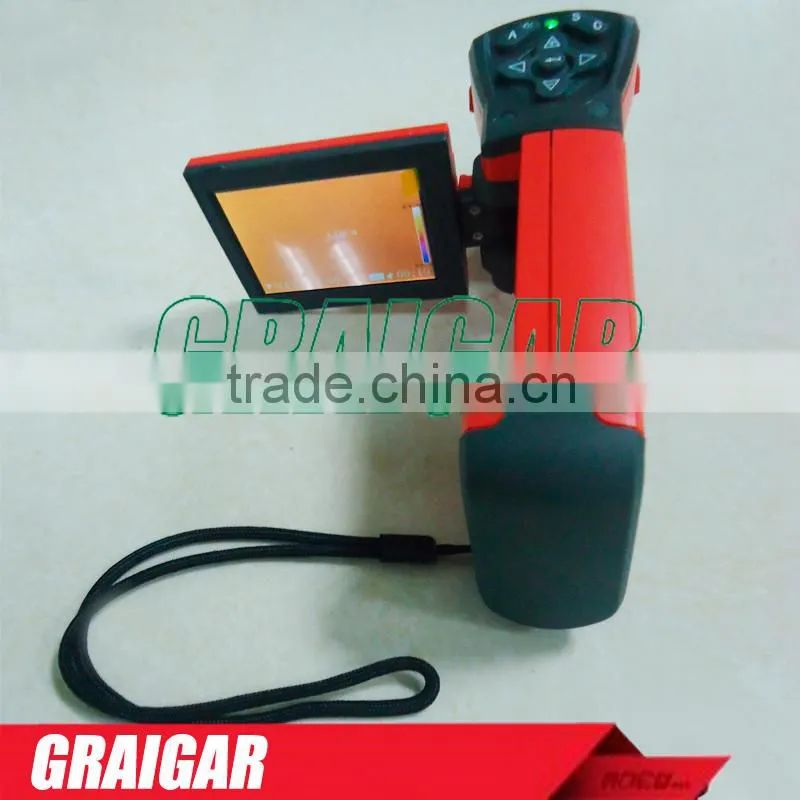

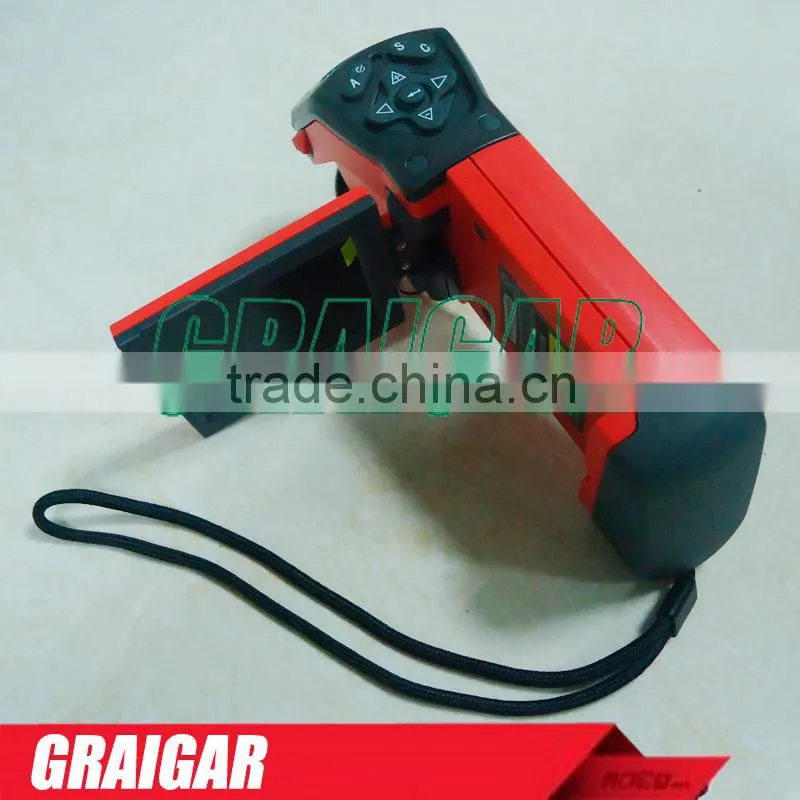

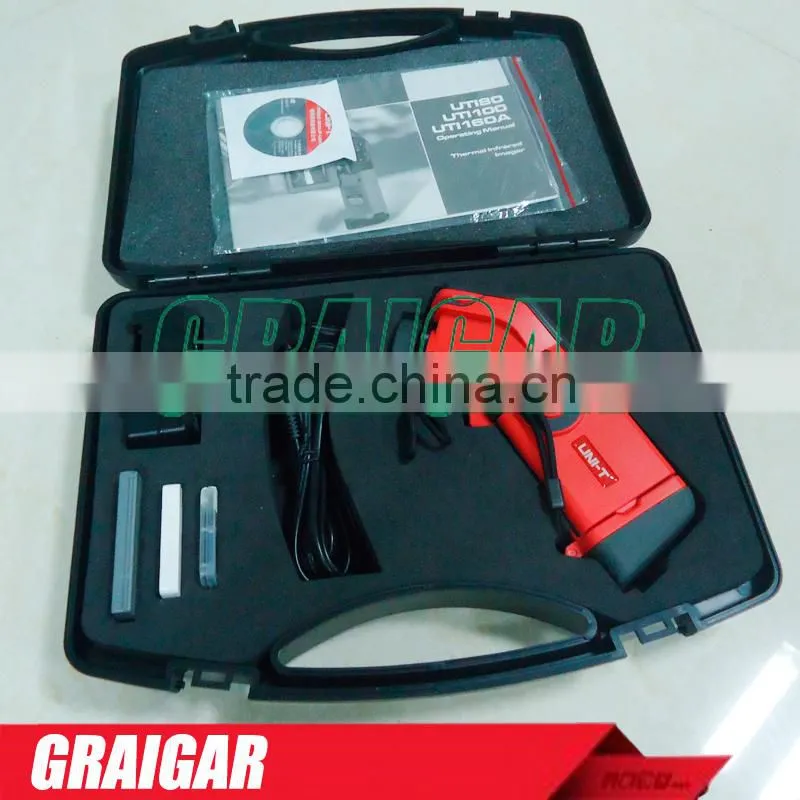

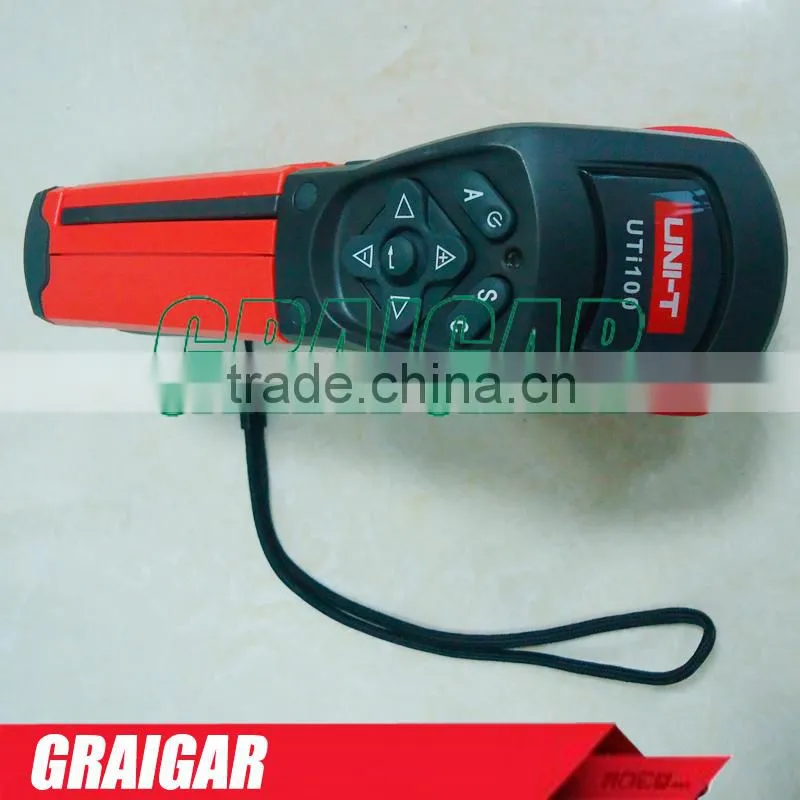

Handheld IR Infrared Thermal Imager Imaging Camera 80x60 2.5'' TFT LCD UTi100

Name: Handheld IR Infrared Thermal Imager Imaging Camera 80x60 2.5'' TFT LCD UTi100
Brand: UNI-T
SKU: 130830079
Availability: InStock

US$ 1,700 - 1,800 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UTi100

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UTi100

Usage Industrial

Theory Other, Infrared Thermal Imager

Accuracy ±2°C or 2% readings

Temperature Range -20-300

Specifications:

Thermal Imager	UTi100
Basic Function	Technical Parameters
View field angle/Min. imaging distance	12°x9.4°/0.1m(can select other lens )
Temperature Sensitivity	0.08°C , 30°C
Detector Type	Uncooled Focal Plane Detector
Resolution	80*120
Waveform Length	8-14um
Focus	Manual adjustment
Spacial Resolution	2.2mrad
Imaging Model	IR(iron red,anti-iron-red,black hot,white hot,colourful,feather red)
LCD Display	2.5'' TFT LCD
Special Function
Video Output	PAL(50Hz) or NTSC(60Hz)combined video
Temperature Range	-20°C~300°C
Accuracy	±2°C or 2% readings
Temperature Measurement Model	The center point of measurement temperature or Full screen automatic catch Max./Min. temperature
Settings	Language/Time/Fake Color/Unit
Temperature Correction	Environment Temperature/Radiation rate/Humidity /Distance/Corrected Temperature
Type	2GB SD card, support Max.16GB
File format	.UIR
Alert Setting	Yes
Battery/Working hours	Li-battery/2.5 hours
Power Save Mode	Sleep Mode
Special Specifications	Working environment temperature:-15C to 50C; Storage temperature:-14C to 70C; Humidity:95%; Packaging:IP54; Impact & Vibration resistance: 25G/2G; Weigh:<500g; Size:172mm x 80mm x 162mm; Reporting software.
