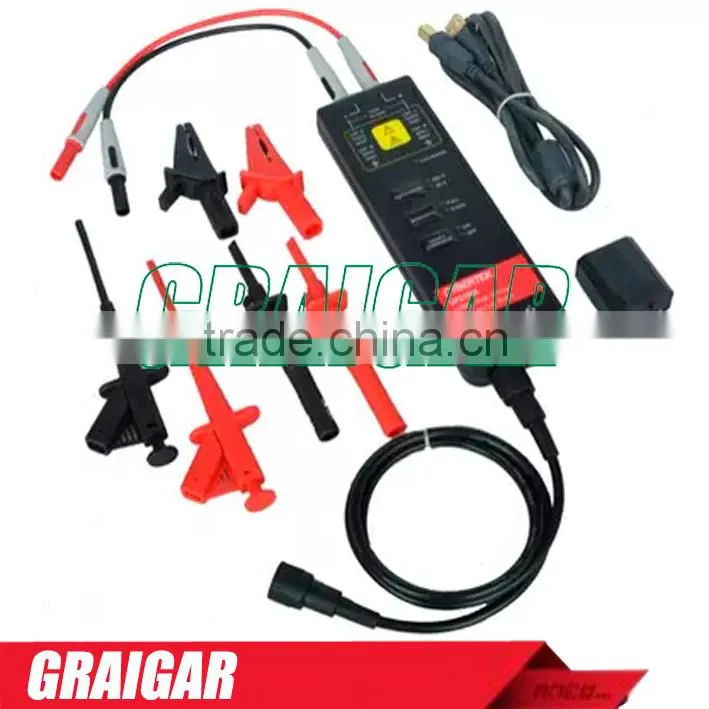

Help CenterHigh Voltage Differential Oscilloscope Probe DP6150A(1500V/100MHz)
Related Products
-
High Voltage Differential Oscilloscope Probe DP6150(1500V/70MHz)US$ 540 - 700MOQ: 1 Piece -
High Voltage Differential Oscilloscope Probe DP6280(2800V/100MHz)US$ 580 - 700MOQ: 1 Piece
-
DP6560 High Voltage Differential Oscilloscope Probe 5600V 50MHz 100X 1000X Float TestUS$ 580 - 700MOQ: 1 Piece
-
Supply Voltage 1300V DP6130a 50MHz Oscilloscope Probe Voltage Differential Probe Spot Real ShotUS$ 550 - 700MOQ: 1 Piece
-
Supply Voltage 1300V DP6130 50MHz Oscilloscope Probe Voltage Differential Probe Spot Real ShotUS$ 550 - 700MOQ: 1 Piece
Summary
DP6000 Series High Voltage Differential Probes for measurement of high-voltage differential signal, to meet the demand for floating measurements.This series has a very high bandwidth to meet the needs of the majority of the test system;This series has a rich range.Differential measurement voltage range can meet most of the requirements of the test circuit;Electronic touch buttons, making longer life ;With a 5MHz bandwidth throttling selection function,5MHz frequency bandwidth to meet most switching power FETs switching frequency measurement,And can filter out higher frequency noise and interference;With sound and light alarm,Manually turn off the sound alarm function is more user-friendly design;Probe is equipped with a standard BNC output connector,Can be used with any manufacturer's oscilloscopes(the input impedance of the oscilloscope setting to 1MΩ).Probes have good common mode noise rejection capability;Have a high input impedance and low input capacitance; Accurately measure differential voltage signals at high speed.
Application
Floating voltage measurement
Inverter/ transformer design
Switching Power Supply Design
Solder , plating power supplies
Motor drive design
Electronic ballast design
CRT monitor designe
UPS & ATX power supply
Power Electronics and Power Drives
LED lighting design
Modal |
DP6150A |
||
Bandwidth(-3dB) |
DC to 100MHz |
||
Rise Time |
≤3.5ns |
||
Accuracy |
±2% |
||
Range Selection(Attenuation Rate) |
50X/500X |
||
Maximum Differential Test Voltage(DC + Peak AC) |
50X |
150V |
|
500X |
1500V |
||
Maximum input commonm ode voltage ( voltage-to-earth Vrms) |
600V CATIII |
||
Input Impedance |
Single-end ed to ground |
5MΩ |
|
Two inputs |
10Ω |
||
Input Capacitance |
Single-end ed to ground |
<4pF |
|
Two inputs |
<2pF |
||
CMRR |
DC |
>80dB |
|
100KHz |
>60dB |
||
1MHz |
>50dB |
||
Noise(Vrms) |
50X |
<50mV |
|
500X |
<300mV |
||
propagation delay (standard 1 m output lead) |
18ns±1ns |
||
Bandwidth limit(5MHz) |
≥-3dB@5MHz |
||
Differential overvoltage detection level |
50X |
≥150V |
|
500X |
≥1500V |
||
Overload indicator (red light) |
YES |
||
Overload Alarm |
Yes(Can shut up manually) |
||
Offset Setting function |
Yes( Set in test mode) |
||
Terminate Load |
1MΩ |
||
Power Supply |
USB 5V/1A adapter |
||
