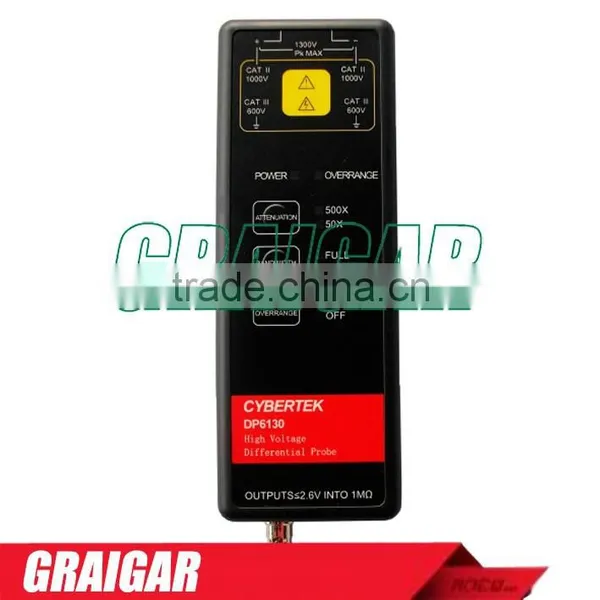

Help CenterSupply Voltage 1300V DP6130 50MHz Oscilloscope Probe Voltage Differential Probe Spot Real Shot
Related Products
-
High Voltage Differential Oscilloscope Probe 650V DC 50MHz 10X 100X Floating Test DP6065US$ 550 - 700MOQ: 1 Piece -
Oscilloscope DC AC Current Probe Range 50mA-100A Peak Bandwidth -3dB DC-100KHz BNC Connector CP8100LUS$ 550 - 700MOQ: 1 Piece
-
CP3000/CP4000 Series High Frequency Current ProbeUS$ 1,300 - 1,500MOQ: 1 Piece
-
CP4040 High Frequency Current Probe (DC/AC) (500A/5MHz Double Range Selection)US$ 2,300 - 2,500MOQ: 1 Piece
-
CP3030 High Frequency Current Probe (DC/AC) (150A/15MHz Double Range Selection)US$ 1,150 - 1,500MOQ: 1 Piece
Summary
DP6000 Series High Voltage Differential Probes for measurement of high-voltage differential signal, to meet the demand for floating measurements.This series has a very high bandwidth to meet the needs of the majority of the test system;This series has a rich range.Differential measurement voltage range can meet most of the requirements of the test circuit;Electronic touch buttons, making longer life ;With a 5MHz bandwidth throttling selection function,5MHz frequency bandwidth to meet most switching power FETs switching frequency measurement,And can filter out higher frequency noise and interference;With sound and light alarm,Manually turn off the sound alarm function is more user-friendly design;Probe is equipped with a standard BNC output connector,Can be used with any manufacturer's oscilloscopes(the input impedance of the oscilloscope setting to 1MΩ).Probes have good common mode noise rejection capability;Have a high input impedance and low input capacitance; Accurately measure differential voltage signals at high speed.
Application
Floating voltage measurement
Inverter/ transformer design
Switching Power Supply Design
Solder , plating power supplies
Motor drive design
Electronic ballast design
CRT monitor designe
UPS & ATX power supply
Power Electronics and Power Drives
LED lighting design
Name |
DP6130 |
||||||||
Bandwidth (-3dB) |
DC to 50MHz |
||||||||
Rise time |
≤7ns |
||||||||
Accuracy |
±2% |
||||||||
Attenuation |
50X/500X |
||||||||
Maximum measurable |
50X |
130V |
|||||||
500X |
1300V |
||||||||
Maximum input |
600V CATIII |
||||||||
Input resistance |
Each input |
4MΩ |
|||||||
Between inputs |
8MΩ |
||||||||
Input capacitance |
Each input |
<4pF |
|||||||
Between inputs |
<2pF |
||||||||
CMRR |
DC |
>80dB |
|||||||
100KHz |
>60dB |
||||||||
1MHz |
>50dB |
||||||||
Noise(Vrms) |
50X |
<25mV |
|||||||
500X |
<150mV |
||||||||
Propagation delay |
15ns±1ns |
||||||||
Bandwidth limit filters (5MHz) |
≥-3dB@5MHz |
||||||||
Differential overvoltage |
50X |
≥140V |
|||||||
500X |
≥1400V |
||||||||
Output termination |
1MΩ |
||||||||
Rated power input |
USB 5V/1A |
||||||||
