Specifications
Vacuum Ball Valve:1. CE
2. Material: Stainless Steel
3. Diameter: 10-100 mm
4.Application: food, drink, dairy industry
Vacuum Ball Valve:
Stainless Steel Electric Vacuum Ball Valve:
1. Product Information:
(1). Model: GUD
(2). Application: Vacuum, dairy industry, pharmaceutical, biotechnology, food, drinks, cosmetics and chemical industry
(3). Valve Body, Valve Disc, Valve Stem: Stainless Steel
(4). Sealing Element: NBR, Viton, PPL
2. Specification:
(1). Valve Leak Rate: ≤1.3×10-4Pa.L/S
(2). Applicable Temperature: -30~+150°C(PPL Sealing)
(3). Close Time: ≤30S
(4). Loose Flange: 0.6×106~1.3×10-4, 1.6×106~1.3×10-4
3. External Size ad Connection Size: (See The Chart)
|
Flange Connection Model |
DN |
D |
Do |
H |
E |
L |
n-φc |
GUD-10(F) |
10 |
55 |
40 |
153 |
157 |
84 |
4-φ6.6 |
GUD-16(F) |
16 |
60 |
45 |
172 |
157 |
84 |
4-φ6.6 |
GUD-25(F) |
25 |
70 |
55 |
187 |
157 |
114 |
4-φ6.6 |
GUD-32(F) |
32 |
90 |
70 |
206 |
157 |
140 |
4-φ9 |
GUD-40(F) |
40 |
100 |
80 |
212 |
157 |
160 |
4-φ9 |
GUD-50(F) |
50 |
110 |
90 |
265 |
157 |
170 |
4-φ9 |
GUD-63(F) |
63 |
130 |
110 |
305 |
207 |
195 |
4-φ9 |
GUD-80(F) |
80 |
145 |
125 |
330 |
207 |
203 |
8-φ9 |
GUD-100(F) |
100 |
165 |
145 |
350 |
207 |
280 |
8-φ9 |

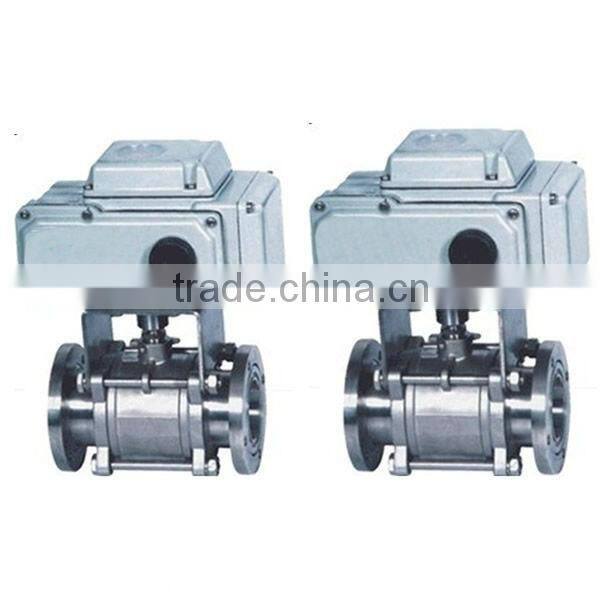

4. Electric Vacuum Ball Valve Sample Picture:
