Specifications
Pneumatic Stainless Steel Ball Valve:1. High Temperature
2. High Pressure
3. Diameter: DN15-300 mm
4. Seal: Soft
Pneumatic Stainless Steel Ball Valve:
10 Mpa Flanged Pneumatic Stainless Steel Ball Valve:
1. Products Detailed Information:
(1). Material: Stainless Steel
(2). Model: HS-Q641F-16P, DN15-300 mm
(3). Connection: Flange
(4). Media: Water, Gas, Oil, Nitrate, Strong Oxidizing, Acetate, Urea etc
(5). Channel: Direction Through
(6). Flow Direction: One Way
(7). Purpose: Adjustion
(8). Suitable Temperature: -29-150 degree
(9). Working Temperature: High
(10). Pressure Surrounding: Low
(11). Pipe Working Pressure: 10.00 Mpa
(12). Sealing Material: PTFE Soft Sealing
(13). Diameter: DN15-DN300 mm
2. Flanged Pneumatic Stainless Steel Ball Valve Size Chart:
Nominal Pressure DN |
L |
D |
H |
L1 |
D1 |
b |
Z-d1 |
H1 |
Pressure |
1.6/2.5/4.0 |
1.6/2.5/4.0 |
|
|
1.6/2.5/4.0 |
1.6/2.5/4.0 |
1.6/2.5/4.0 |
|
15 |
130/130/140 |
95 |
275 |
157 |
65 |
14/16/16 |
4-14 |
48 |
20 |
140/140/150 |
105 |
280 |
157 |
75 |
14/16/16 |
4-14 |
53 |
25 |
150/150/165 |
115 |
287 |
157 |
85 |
14/16/16 |
4-14 |
58 |
32 |
165/165/180 |
135 |
354 |
208 |
100 |
16/16/18 |
4-18 |
68 |
40 |
180/180/200 |
145 |
312 |
208 |
110 |
16/16/18 |
4-18 |
73 |
50 |
200/200/220 |
160 |
325 |
208 |
125 |
16/20/20 |
4-18 |
80 |
65 |
220/220/250 |
180 |
335 |
256 |
145 |
18/22/22 |
4-18/8-18/8-18 |
90 |
80 |
250/250/280 |
195 |
365 |
256 |
160 |
20/22/22 |
8-18 |
98 |

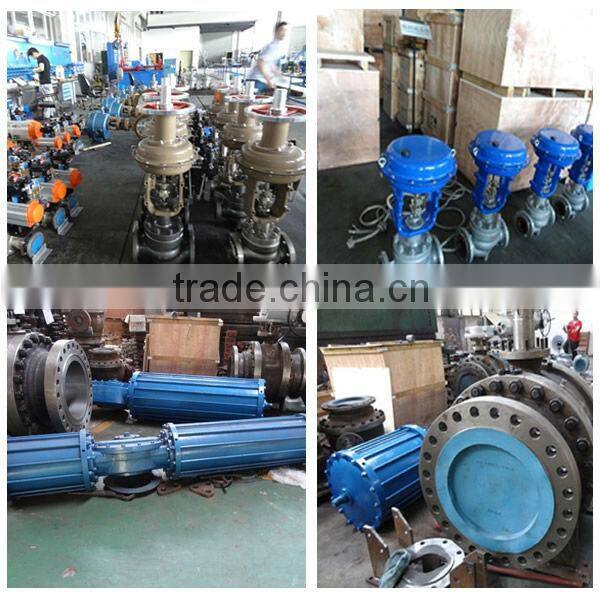

Pneumatic Stainless Steel Ball Valve Factory Picture:
