Home > Industrial Equipment & Components > Valve > Ball Valve > High Temperature High Pressure Power Station Gate Valve

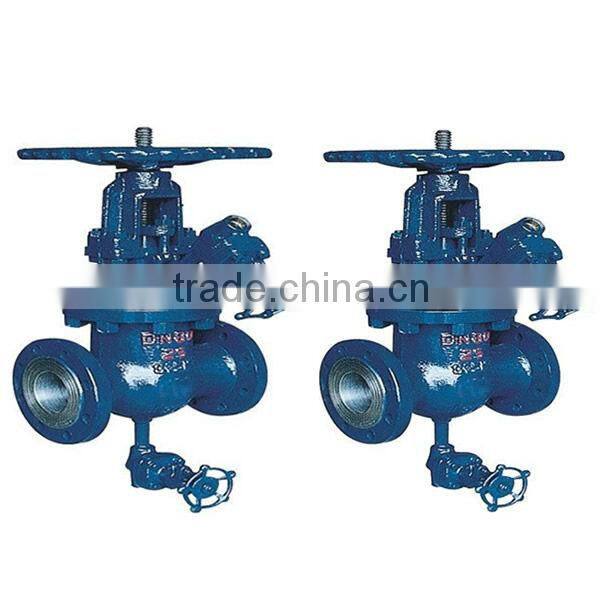

High Temperature High Pressure Power Station Gate Valve

US$ 1 - 10 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Gate

Pressure:

High Pressure

Contact Supplier Request Quote Chat Now

Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port or Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Gate

Pressure High Pressure

Power Manual

Material Stainless Steel

Temperature of Media High Temperature

Media Oil

Port Size DN 300 mm

Place of Origin Chongqing, China

Model Number N/A

Brand Name HS

Specifications

Power Station Gate Valve:
1. Temperature: 400-800 degree
2. Pressure: 1.6, 2.5, 4 Mpa
3. DN: 40-1000 mm
4. Media: Water

Power Station Gate Valve:

High Temperature High Pressure Power Station Gate Valve:

1. Product Brief Introduction:

(1). Type: Straight Through Type

(2). Nominal Diameter: 40-1000 mm

(3). Working Temperature: High Temperature

(4). Flow Way: Double Way

(5). Connection Way: Flange

(6). Media: Water

(7). Material: Cast Steel

(8). Pressure: High Pressure

(9). Model: Z1, 41H, Z2, 41H

(10). Sealing: Hard Sealing

2. Application

The valves has wide application. Water treatment, chemical petrochemical, oil, paper, mining, electricity, liquefied gas, food, pharmaceutical, textile, municipal, machinery and equipment supporting the electronics industry, urban construction and other fields

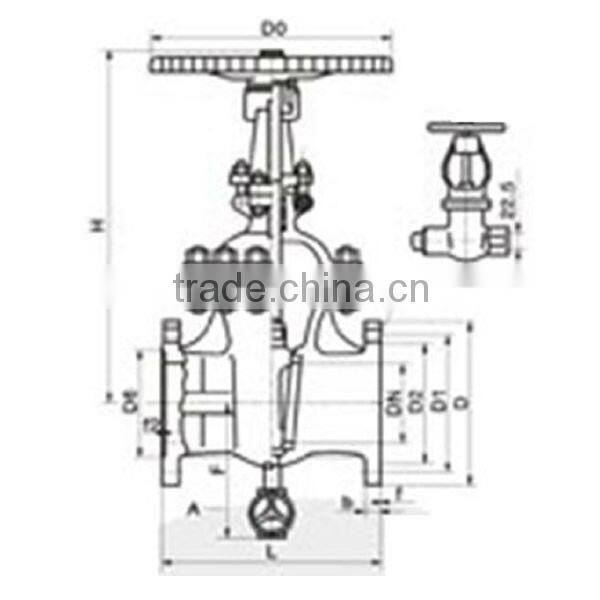

3. Specification:

Model	Temperature (°C)	PN(MPa)	Specification DN(mm)	Main Connection Size (mm)					Weight (Kg)
Model	Temperature (°C)	PN(MPa)	Specification DN(mm)	L	D	D1	H	Z-d	Weight (Kg)
Blow 1/Blow 2Z/40Y-16P1/P2/P3	400-800°C	1.6	65	265	180	145	473	4-18	46
			80	280	195	160	520	8-18	66
			100	300	215	180	623	8-18	90
			150	350	280	240	867	8-23	145
			200	400	335	195	1060	12-23	205
			250	450	405	355	1228	12-25	280
			300	500	460	410	1416	12-25	405
			350	550	520	170	1683	16-25	595
			400	600	580	525	1881	16-30	855
			500	700	705	650	2310	20-34	1281
			600	800	840	770	2826	20-41	2409
Blow 1/Blow 2Z/40Y-25P1/P2/P3	400-800°C	2.5	50	250	160	125	400	4-18	42
			65	265	180	145	473	8-18	46
			80	280	195	160	520	8-18	66
			100	300	230	190	623	8-23	90
			150	350	300	250	867	8-25	145
			200	400	360	310	1060	12-25	205
			250	450	425	370	1228	12-30	285
			300	500	485	430	1416	16-30	405
			350	550	550	490	1683	16-34	595
			400	600	6lO	550	188l	16-34	855
			500	700	730	660	2310	20-41	1281
			600	800	840	770	2826	20-41	2459
Blow 1/Blow 2Z/40Y-40P1/P2/P3	400-800°C	4.0	50	250	160	125	454	4-18	50
			80	310	195	160	600	8-18	86
			100	350	23	190	684	8-23	116
			150	450	300	250	900	8-25	186
			200	550	375	320	1110	12-20	310
			250	650	445	385	1348	12-34	460
			300	750	510	450	1492	12-34	610
