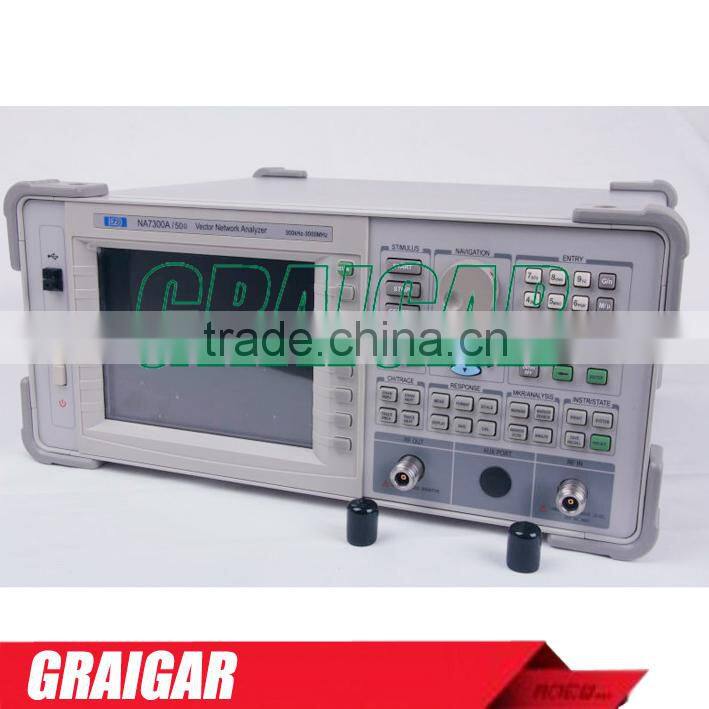

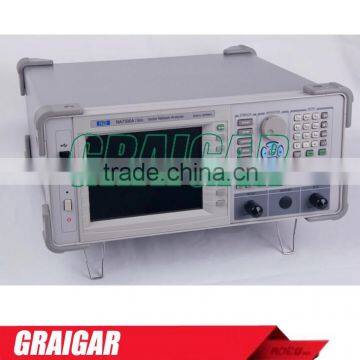

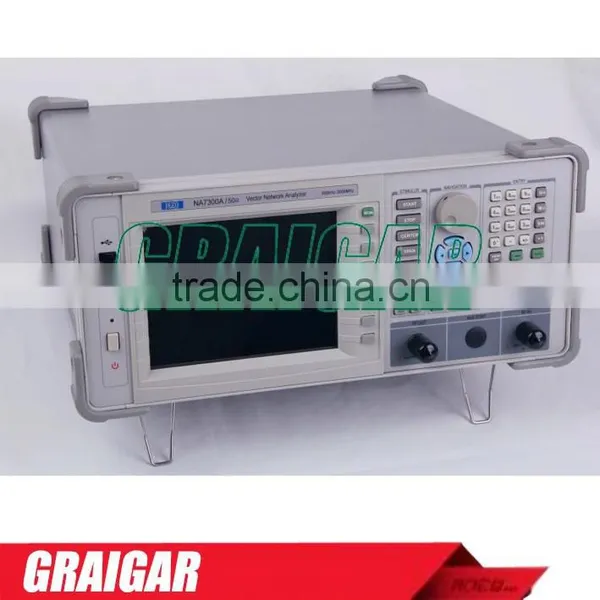

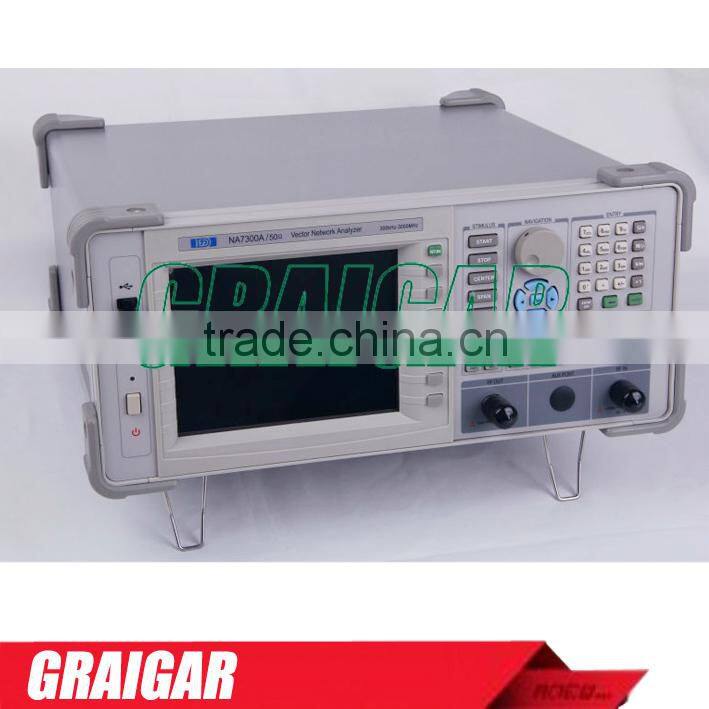

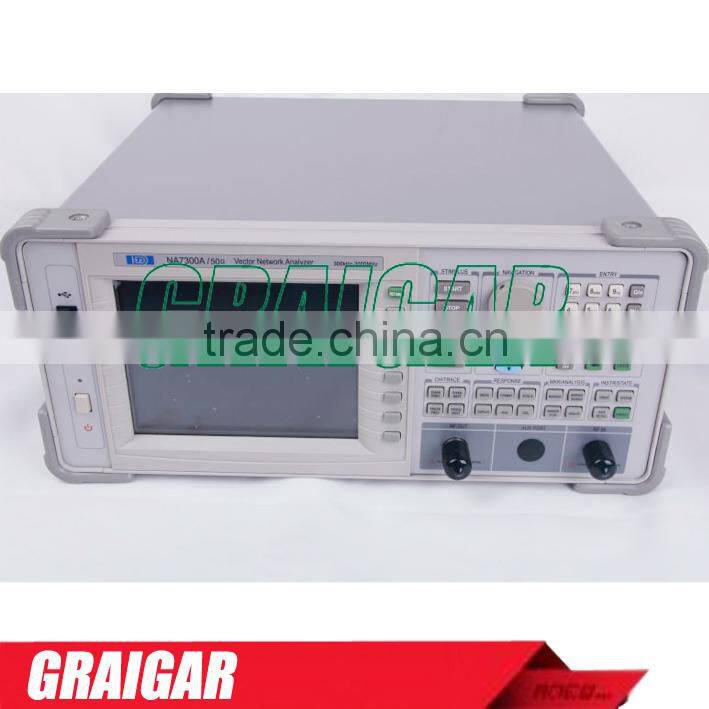

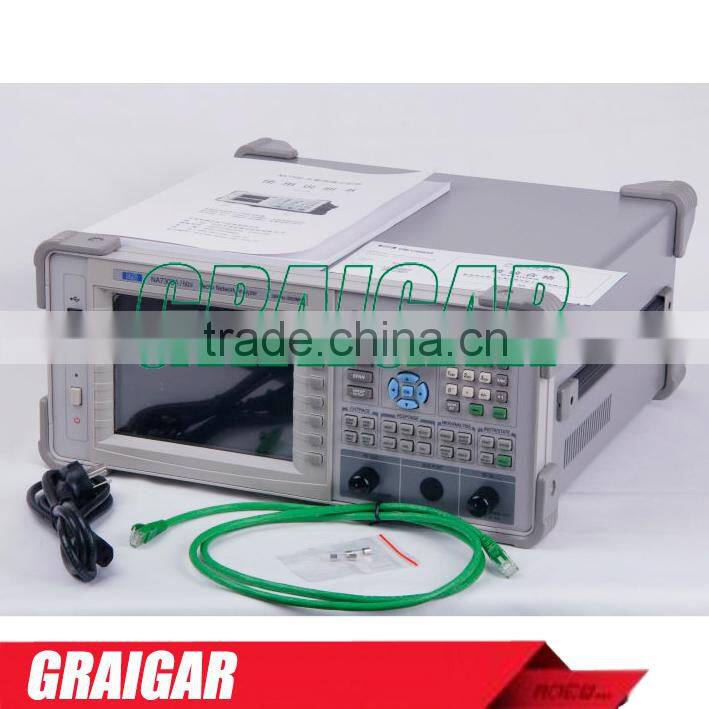

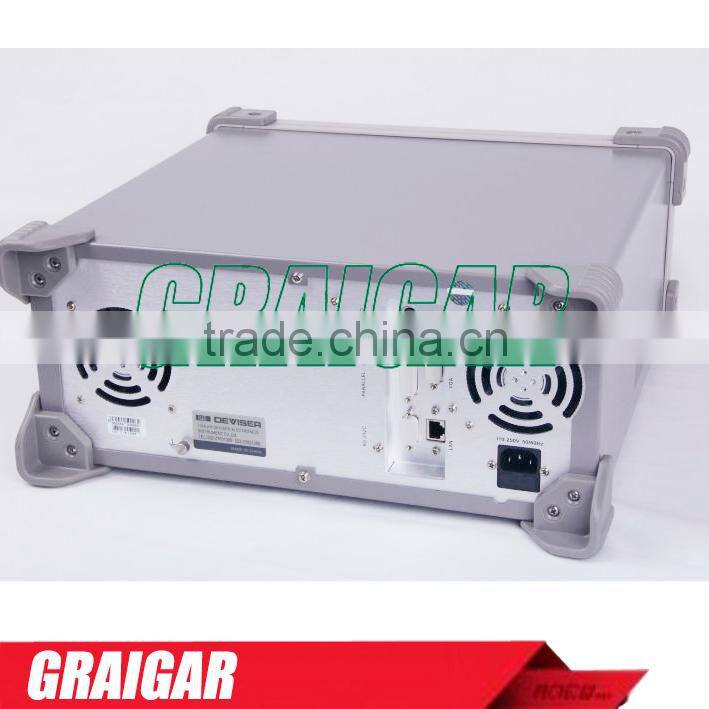

Deviser NA7300 3.0GHz Vector Network Analyzer

Specifications

Fast sweep time
Two channels, Four traces display
Save/ print/ recall function
USB, parallel, RS-232 and VGA,LAN interface

Overview

NA7300 is mainly applied for Communication, Satellite, Wireless TV & Broadcast and CATV industries.

Application

NA7300 is the best combination of high speed, accuracy, productive and low cost. It helps reduce the testing time, increase output,and lower the overall cost of components. The analyzer is qualified in testing typical RF components such as: Filter, Amplifier, Antennas, Cables,Taps, and Splitters.

  • Communication: Antenna, Amplifying Module, Coaxial Cable, Connector and so on
  • Satellite TV: Amplifiers, Spliters and so on
  • Wireless Broadcasting & TV: Antenna, Transmitter
  • CATV: Amplifiers, Spliters and so on
  • Other industries: researching and manufacture of crystal, surface acoustic and cable.

Main Testing Functions



NA7300 is the best combination of high speed, accuracy, productive and low cost. It helps reduce the testing time, increase output, and lower the overall cost of components. The analyzer is qualified in testing typical RF components such as: Filter, Amplifier, Antennas, Cables, Taps, and Splitters.



Communication: Antenna, Amplifying Module, Coaxial Cable, Connector and so on
Satellite TV: Amplifiers, Spliters and so on
Wireless Broadcasting & TV: Antenna, Transmitter
CATV: Amplifiers, Spliters and so on
Other industries: researching and manufacture of crystal, surface acoustic and cable.



Model



NA7300A 50 Ω

NA7300B 75 Ω



Key Features

  • Two channels, Four traces display
  • Fast sweep time
  • Save/ print/ recall function
  • USB, parallel, RS-232 and VGA,LAN interface
  • Automatic PASS/FAIL judgement

NA7300                                          NA7100

Source

Frequency Range

300 kHz ~ 3 GHz

300 kHz ~ 1.3 GHz

Frequency stability

≤±5 ppm

≤±5 ppm

Frequency Resolution

1 Hz

1 Hz

Phase Noise

≤ -65 dBc/Hz @10 kHz

≤-67 dBc/Hz (10 kHz Offset)

Output Level Range

-48 dBm ~ +10 dBm

-50 dBm ~ +10 dBm

Level Accuracy

≤±1.5 dB (-45 dBm ~ +5 dBm)

≤±1.5 dB (25 °C+5°C)



Harmonic Rejection

≥-30 dBc (>1 MHz)

≤-25 dBc (≤1 MHz)

≥-30 dBc(>1 MHz)

≤-25 dBc(≤1 MHz)



Directivity

≥50 dB (After Vector calibration)

≥50 dB (After Vector calibration)

VSWR

≤1.3

≤1.3

Receiver

Resolution Bandwidth

100 Hz ~ 15 kHz

100 Hz ~ 15 kHz

Dynamic Range

≥100 dB (RBW=1 kHz)

≥100 dB (RBW=1 kHz)

Level Accuracy

≤±1.5 dB

≤±1.5 dB

Measurement Resolution

0.01 dB

0.01 dB

Maximum Input Level

+ 10 dBm

+ 10 dBm

VSWR

≤1.2

≤1.2

Phase

Phase Resolution

0.01 °

0.01

Phase Stability

0.5 ° (RBW=1 kHz)

1 ° (RBW=3 kHz)

0.5 ° (RBW=1 kHz)

1 ° (RBW=3 kHz)

Display

Sweep Time

150 ms/field ~ 20 s/field(201points)

150 ms/field ~ 5 s/field

(201points)

Display

7.5” Color TFT LCD

7.5” Color TFT LCD

Measurement

Measurement Channels

2 channels,4 tracks

Measurement Format

A,B,R,A/R,B/R,A/B

Measurement Parameters

Logarithm amplitude, Linearity amplitude, Phase, Group delay Real part, Imaginary part. VSWR, Smith chart, Pole chart

Interface

Front Panel

Type-N Input and Output port,USB1.1 port

Rear Panel

RS-232, Parallel interface, Standard VGA output andStandard keyboard interface

Others

Power Supply

AC 90 V ~ 250 V / 50 Hz, P≤113 W

Weight

15 kg

Working Environment:

Temperature: -10 °C ~ 40 °C,Humidity: ≤75%

Store Environment:

-10 °C ~ 50 °C

Inside Storage

1 G Byte

Dimension

400 mm × 220 mm × 470 mm
