Specifications
Shipboard Power Cable1.ABS,DNV,LR,GL,BV CCS Certified
2.IEC 60332 Fire resistant
3.ISO 9001:2008
4.10 days product time
Shipboard Power Cable:

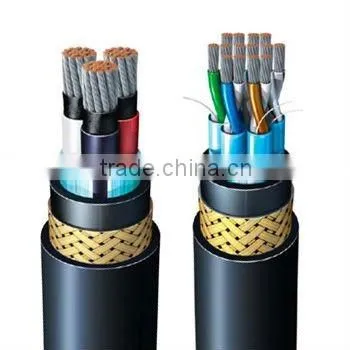

XLPE insulated Flame retardant Shipboard Power Cable
SPECIFICATION & STANDARDS
IEC 60288 IEC60092-351 IEC60092-376 IEC60092-359
IEC60332-1 IEC 60331
Construction:
1. Conductor: tinned copper
2. Insulation: EPR
3. Tape
4. Individual screen: tinned copper wire braided
5. Tape
6. Inner sheath: PCP/PO (SHF1, SHF2)
7. Screen/Armored: tinned copper wire braid
(Galvanized steel wire braided)
8. Outer sheath: PVC/PO (SHF1, SHF2)
Flammability Features:
NA: Fire-resisting cable
NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.
Specifications:
Cores: 1, 2, 3,
Nominal Cross-section Areas: 1 mm2, 1.5mm2, 2.5mm2 ,4mm2 ,6mm2 ,10mm2 ,16mm2 ,25mm2 ,35mm2 ,50mm2 ,70mm2 ,95mm2 ,120mm2 ,150mm2 ,185mm2,240mm2,300mm2
Application:
The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA; 70
The radius of bend for the installation of cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
Cable drum sample
Packed finished drum
Finished Cable packed in Drum
Wood drum
Packed Drum
Treated Wood Drum
1)Offer our customers with the most competitive price&best quality.
2)Delivery goods all over the planet with speed and precision
3)Reply you concern within 24 working hours
4)As low as 200 meter MOQ,T/T,L/C accepted
Our company has full permission of exporting and importing,our products has ABS,CCS,BV,DNV,LR,GL and many other Classification Society Certification and passed ISO9001:2008 and CCC,CE Certification
Our workshop
Panaroma of our factory
Workshop
One corner of our workshop
Our testing equipments
