Mining Movable Fire-retardant Power Cable
- 10000 Meter / Meters per Month
- Shanghai
- T/T
-
Mooring rope cable
-
Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
-
The difference between different types of automotive cables and selection advice
-
China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
-
IEC62196-2 mode 3 16A single-phase electric vehicle charging process
-
Automotive high-voltage cables with protection class IP67 characteristics
Product Details
| Place of Origin: | Chongqing, China | Brand Name: | Hi-Sea | Model Number: | MCPTJ |
| Insulation Material: | Rubber | Type: | Low Voltage | Application: | Mining |
| Conductor Material: | Copper | Jacket: | Rubber |
Product Description

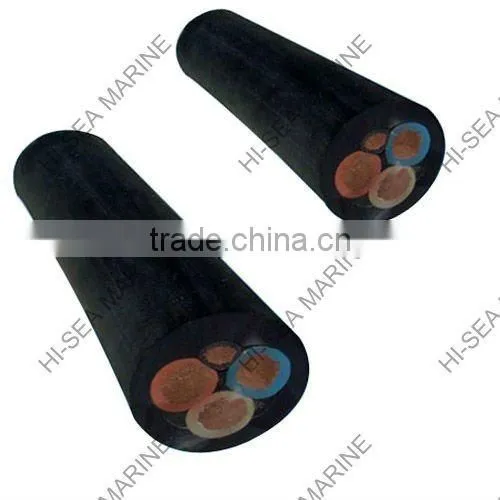

Mining Movable Fire-retardant Power Cable
1.Application:
This is rubber sheath flexible cable used in coal-mining.It's fit for rated voltage 0.66/1.14KV used in coal-mining installation equipment to connect the power supply.
2.Service characteristics:
Permitted working temperature is 65 centi-degree. The minimum bending radius is 6 times size of cable diameter.
3.Specification(0.38/0.66KV):
Core X Nominal section (mm2) | Power core insulation nominal thickness(mm) | Nominal sheath thickness(mm) | Cable outer diameter(mm) | ||||
Power core | Ground core | MY-0.38/0.66 | MYP-0.38/0.66 | ||||
Min | Max | Min | Max | ||||
3X4 | 1X4 | 1.4 | 3.5 | 19.0 | 22.5 | 21.5 | 25.5 |
3X6 | 1X6 | 1.4 | 3.5 | 20.5 | 24.0 | 23.0 | 27.0 |
3X10 | 1X6 | 1.6 | 4.0 | 26.0 | 30.0 | 28.0 | 32.5 |
3X16 | 1X10 | 1.6 | 4.0 | 27.5 | 32.0 | 30.5 | 35.5 |
4.Technical requirements:
1)Outer sheath rubber tensile strength should not be less than 5.0/square meter.
2)Electric property of the product should be in accordance with standard GB/T3048-1994.
Packing:Wood drum or as per requested
Shipping:LCL
1) High quality marine cable
2) competitive price in the market
3) Quick service and proper document
4) immediate service after inquiry
fire-retardant power cable
mining movable fire-retardant cable
