EPR insulated Fire resistant marine Power Cable

Specifications

marine power cable
1.ABS,DNV,LR,GL,BV CCS Certified
2.IEC 60332 Fire resistant
3.ISO 9001:2008
4.10 days product time



Marine Power Cable



EPR Insulated Fire-resisting Marine power Cable 0.6/1kv



SPECIFICATION & STANDARDS

IEC 60288 IEC60092-351 IEC60092-376 IEC60092-359

IEC60332-1 IEC 60331

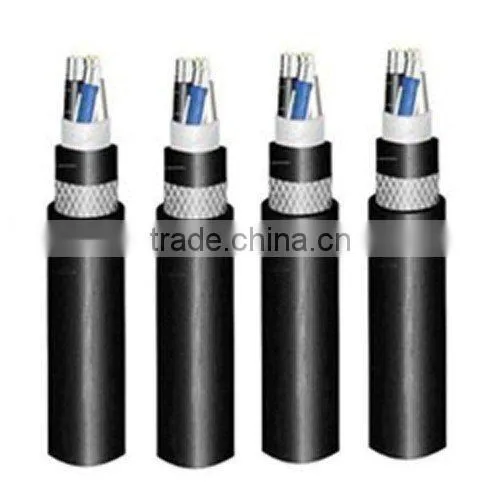

Construction:

1. Conductor: tinned copper

2. Insulation: EPR

3. Tape

4. Individual screen: tinned copper wire braided

5. Tape

6. Inner sheath: PCP/PO (SHF1, SHF2)

7. Screen/Armored: tinned copper wire braid

             (Galvanized steel wire braided)

8. Outer sheath: PVC/PO (SHF1, SHF2)



Flammability Features:

NA: Fire-resisting cable

NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.



Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 1 mm², 1.5mm², 2.5mm²



Application:

The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.





Certificates:

CCS,LR,ABS,DNV,BV,GL,NK





The radius of bend for the installation of cables



Cable structure features	Over diameter of cable(D)	Minimum internal bending radius
Metal braided armored	Any value	6D
Non-armored	D≤25	4D
	D25	6D



1)Offer our customers with the most competitive price best quality.

2)Delivery goods all over the planet with speed and precision

3)Reply you concern within 24 working hours

4)As low as 200 meter MOQ,T/T,L/C accepted
