NEK 606 BFOU Fire Resistant Mud Resistant Offshore Cable
SPECIFICATION & STANDARDS
IEC 60288 IEC60092-351 IEC60092-376 IEC60092-359
IEC60332-1 IEC60332-3Cat.A IEC 60331
IEC60754 IEC60134

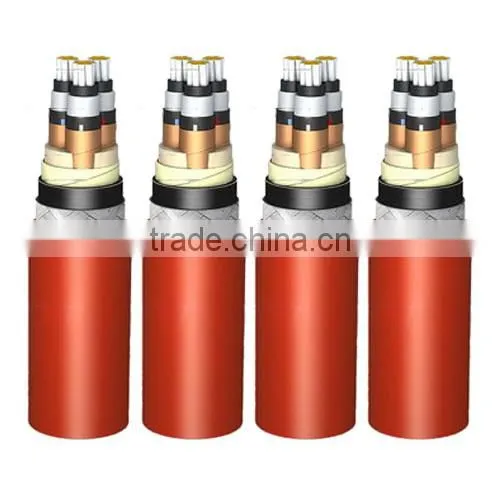

Construction:
1. Conductor: tinned copper
2. Mica tape
3. Insulation: XLPE
4. Tape
5. Individual screen: tinned copper wire braided
6. Tape
7. Inner sheath: PO (SHF1, SHF2)
8. Screen/Armored: tinned copper wire braid
(Galvanized steel wire braided)
9. Outer sheath: PO (SHF1, SHF2)
Flammability Features:
NA: Fire-resisting cable
NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.
Specifications:
Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
Nominal Cross-section Areas: 1 mm2, 1.5mm2, 2.5mm2
Application:
The cable is intended for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry chemical works, power planted and mines etc.
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA; 90
The radius of bend for the installation of cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
