Rubber Insulated LR Certified Marine Flexible Cable

Name: Rubber Insulated LR Certified Marine Flexible Cable
Brand: Hisea
SKU: 130805179

Rubber Insulated LR Certified Marine Flexible Cable thumbnail-1

Rubber Insulated LR Certified Marine Flexible Cable photo-1

US$ 0.5 - 100 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

Hisea

Model Number:

CEFR

Contact Supplier Request Quote Chat Now

Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name Hisea

Model Number CEFR

Type Insulated

Application Other, Shore Power Supply

Conductor Material Copper

Conductor Type Stranded

Insulation Material Rubber

Flexible Cable:

Rubber insulation Flexible Cable

SPECIFICATION & STANDARDS

IEC 60288 IEC60092-351 IEC60092-376 IEC60092-359

IEC60332-1 IEC60332-3Cat.A IEC 60331

IEC60754 IEC60134

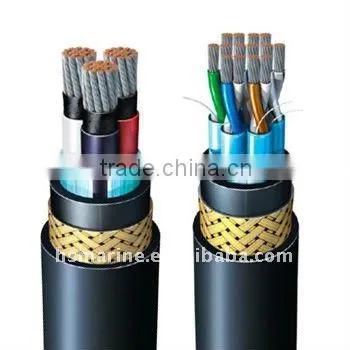

Construction:

1. Conductor: tinned copper

2. Insulation: Rubber Cable

3. Tape

4. Individual screen: tinned copper wire braided

5. Tape

6. Inner sheath: PO (SHF1, SHF2)

7. Screen/Armored: tinned copper wire braid

(Galvanized steel wire braided)

8. Outer sheath: PO (SHF1, SHF2)

Flammability Features:

NA: Fire-resisting cable

SC: Flame retardant

NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity

Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 1 mm², 1.5mm², 2.5mm²

Application:

The cable is intended for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry chemical works, power planted and mines etc.

Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA; 90

The radius of bend for the installation of cables

Cable structure features	Over diameter of cable(D)	Minimum internal bending radius
Metal braided armored	Any value	6D
Non-armored	D≤25	4D
Non-armored	D25	6D
