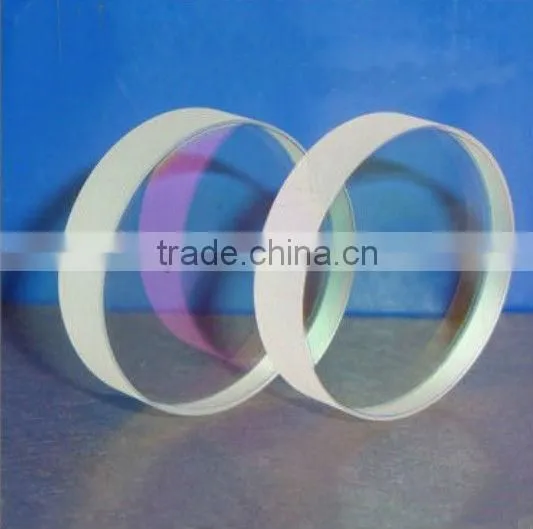

Dia 25.4X5mm quartz glass windows/optical quartz glass plate/quartz round glass disc

Specifications

 Specifications

1. Size: big or small,thick or thin;
2. Shape: Round, square, rectangle;
3. For window use.
4. Heat resistant:1100degree

Application: Used for window material,mask substrate or heat insulation,optics,electronics,medical treatment,laser industries ect.

Characteristics and superiority

1, Shape:Round, square, rectangle;

2,  Material :  BK7, H-K9L ,UV fused silica,Corning7980, etc

3, Customer’s design and tailor made are welcome.

Big or small, the max size we did before was 2000mm;  thick or thin, Thin or thick, from 1-400mm;

4, Dimension tolerance: +/-0.01 -  +/-0.2mm( according to the requirement)

5,Future Processing: such as holes are available. Smallest hole is od0.5mm.

6, Surface quality :40/20   60/40   80/50

7, Transmittance  >85%

8, Coating: high anti-UV film, antireflective film, gold, aluminum, silver series quartz glass

and quartz UV filters, curved reflector, filter glass and so on.

Product Introductions:

Quartz glass can transmit far ultraviolet, transmit visible light and near infrared optical curve.

It is characterized by small heat expansion factor, stable chemical capacity. Bubble, stripe and double refraction are better than common optical glass.

 Quarts glass is necessary optical glass to stable optical factor in bad condition. Mainly apply in military, laser, metallurgical, optical instrument and stage light etc. high temperature window.

There  are other products supplied.
