Specifications
1 High Precision2 Competitive Price
3 Quick Delivery
4 Custom Size Available

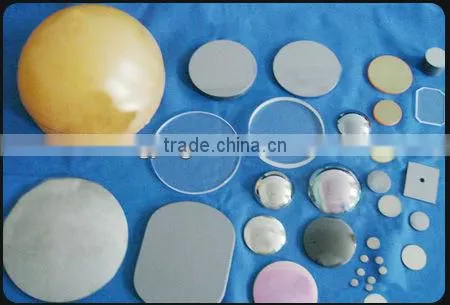

Optical Windows
| Description |
Optical window refers to a piece of transparent optical material that allows light into an optical instrument. They are pieces of optical glasses with ground and polished faces that are relatively parallel. Optical windows are applied for protecting fragile optical components inside an equipment, they are adopted to isolate two physical environments while allowing light to pass. A window is usually parallel and is likely to be anti-reflection coated, and may be built into a piece of equipment, such as a vacuum chamber, to allow optical instruments to view inside that equipment. |
A wide range of materials could be applied due to varies demands: BK7, Fused silica, Sapphire, Quartz, Silicon, MgF2, CaF2, ZnSe, etc. | |||||||||||||||||||
| |||||||||||||||||||
|
Standard Specification
- Material: BK7 grade A optical glass
- Diameter Tolerance: +0.0, -0.1mm
- Thickness Tolerance: ± 0.2mm
- Clear Aperture> 85%
- Parallelism<1 arc minute
- Surface Quality: 60-40 scratch and dig
- Flatness: λ/4 per 25mm @632.8nm
- Wavefront Distortion: λ/4 per 25mm @632.8nm
- Bevel: 0.25mm x 45°
High precision specification and coaitng are available upon request.
About Supplier
Sdhengjing optics offers custom manufacturing of optical windows at very competitive price. Monthly output is more than 100,000pcs of windows. We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service. We can offer special size and coating are available upon request.
