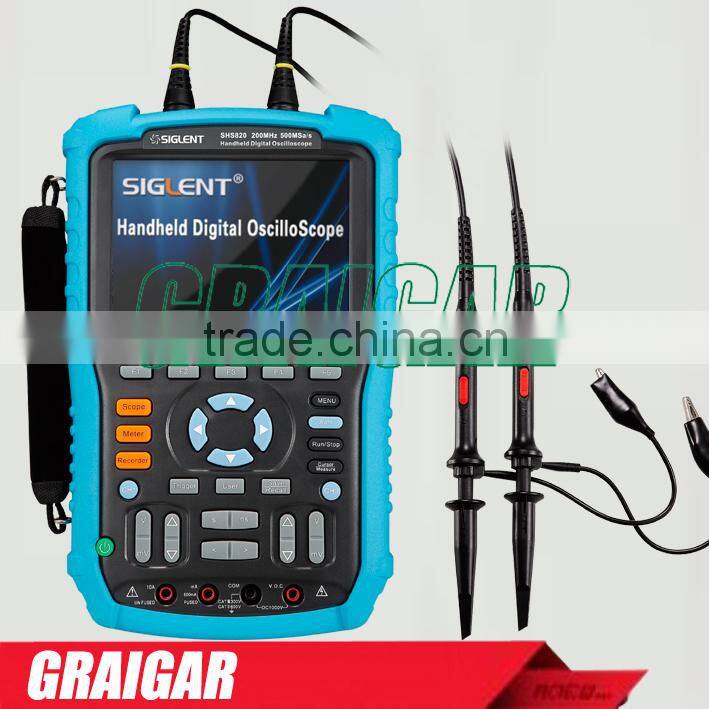

Handheld Digital Oscilloscope Siglent SHS820 200MHz 32Kpts memory 500Msa/s 2Channel
PRODUCT DESCRIPTION
Application
1. Automotive electronics, electric automobile test
2. Power system strong electricity test
3. Plant automation control system
Features and Benefits:
High-performance oscilloscope
Bandwidth: 60MHz, 100MHz, 150MHz, 200MHz
Real-time sampling rate: 1G Sa/s
Equivalent sampling rate: 50G Sa/s
Memory depth: 2Mpts
Data recorder function
7M internal storage, up to18 hours recording time
USB port, up to 3000 hours recording time
Record, replay and zoom function supported
High precision multimeter
6000 counts display
Accurate measurement of DCV, ACV, DCI, ACI
Accurate measurement of Resistance, Diode, Capacitance, Continuity
TrendPlot
32 measurement trendplot analyzer
Scope: 800k points capacity, more than 24 hours recording time
Meter: 1.2M points capacity 9320 hours recording time at 0.05Sa/s
Specification
Scope
Type |
SHS806 |
SHS810 |
SHS815 |
SHS820 |
Bandwidth |
60MHz |
100MHz |
150MHz |
200MHz |
Rise Time |
≤5.8ns |
≤3.5ns |
≤2.3ns |
≤1.7ns |
Input Impedance |
1MΩ+/-2%, 18pf3pf |
|||
Real Time Sampling Rate |
Single Channel: 1GSa/s, |
500MSa/s |
||
Equivalent Sampling Rate |
50GSa/s |
|||
Memory Depth |
2Mpts |
32Kpts |
||
Time Base Range |
5 ns/ div ~ 50s/ div |
2.5 ns/ div ~ 50s/ div |
||
Scan Range |
100ms/ div ~ 50s/ div |
|||
Vertical Sensitivity |
2mV/div ~ 100V/div(1-2-5 step) |
|||
Vertical Resolution |
8 bits |
|||
Trigger Types |
Edge, Pulse, Video, Slope, Alternative |
|||
Frequency Counter |
6 bits |
|||
Connection |
USB Device, USB Host |
|||
Math |
+, -, * , /, FFT |
|||
Oscilloscope Trend Plot |
800K poin |
|||
Meter
Display |
6000 |
|
Item |
Range |
Accuracy |
DC Voltage |
60mV ~1000V |
+/-1%+/-15digit |
AC Voltage |
60mV ~750V |
+/-1%+/-15digit |
DC Current |
60mV -10A |
+/-1%+/-5digit |
AC Current |
60mV -10A |
+/-1%+/-5digit |
Capacitance |
40.00nF |
+/-3%+/-10digit |
400.0nF-400.0uF |
+/-4%+/-5digit |
|
Resistance |
600 ohm - 60M ohm |
+/-1%+/-5digit |
Continuity buzzer |
<50 Ohm |
|
Diode |
0V~2.0V |
|
Trend plot |
1.2M points |
|
Recorder |
7M pionts |
|
Measuring mode |
Manual/Auto |
|
General Feature
Display |
5.7 inches color TFT-LCD, 320*234 |
Power Supply |
Charging/Battery |
Power mode |
Lithium battery: 7.4V 5000mAh, Battery lasts 5 hours; DC adapter, 100-240V 50/60Hz input, 9V 4A output |
Weight |
1.5Kg |
Dimension |
163.2mm259.5mm53.3mm |
Accessories |
Two passive probes, multimeter pen USB data cable, DC adapter, manual, CD. |
