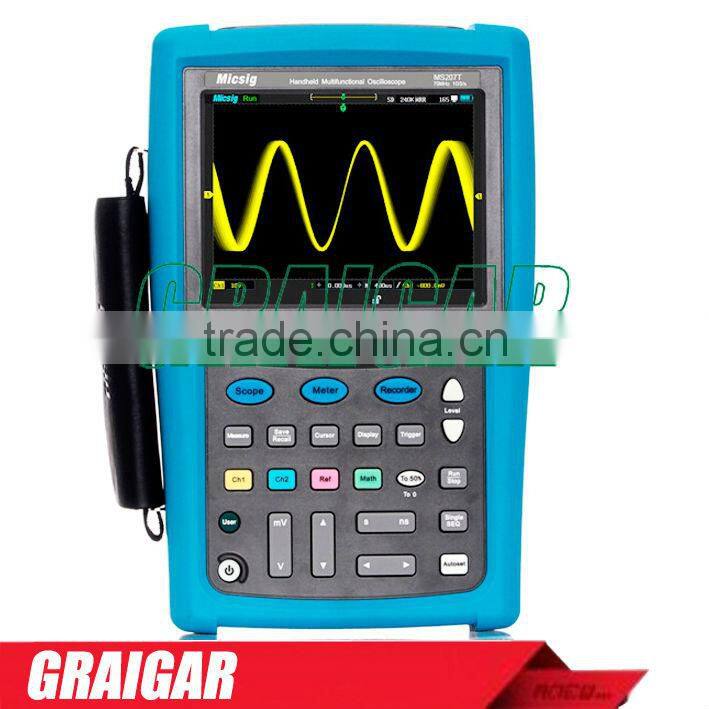

Micsig Handheld 150MHz Oscilloscope Tablet Oscilloscope Support Touch Screen Operation MS215T Series 10 Physical Measurements

Name: Micsig Handheld 150MHz Oscilloscope Tablet Oscilloscope Support Touch Screen Operation MS215T Series 10 Physical Measurements
Brand: Micsig
SKU: 130778261
Availability: InStock

Micsig Handheld 150MHz Oscilloscope Tablet Oscilloscope Support Touch Screen Operation MS215T Series 10 Physical Measurements thumbnail-1

Micsig Handheld 150MHz Oscilloscope Tablet Oscilloscope Support Touch Screen Operation MS215T Series 10 Physical Measurements photo-1

US$ 850 - 900 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Micsig

Model Number:

MS215T

Contact Supplier Request Quote Chat Now

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Micsig

Model Number MS215T

Micsig handheld 150MHz oscilloscope Tablet Oscilloscope Support touch screen operation MS215T Series 10 physical measurements

Model	Bandwidth	Real time sample rate	Rise time	Memory depth	Channel	Touch operation	Series bus trigger
MS207T	70MHz	1GSa/s	≤5ns	240Kpts	2CH	YES	YES
MS210T	100MHz	1GSa/s	≤3.5ns	240Kpts	2CH	YES	YES
MS215T	150MHz	1GSa/s	≤2.33ns	240Kpts	2CH	YES	YES
MS220T	200MHz	1GSa/s	≤1.75ns	240Kpts	2CH	YES	YES

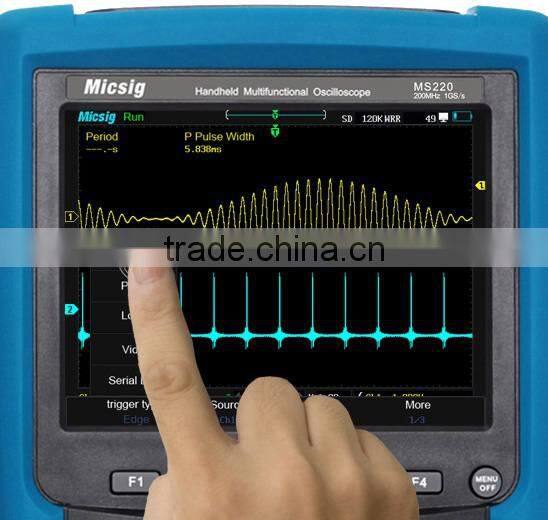

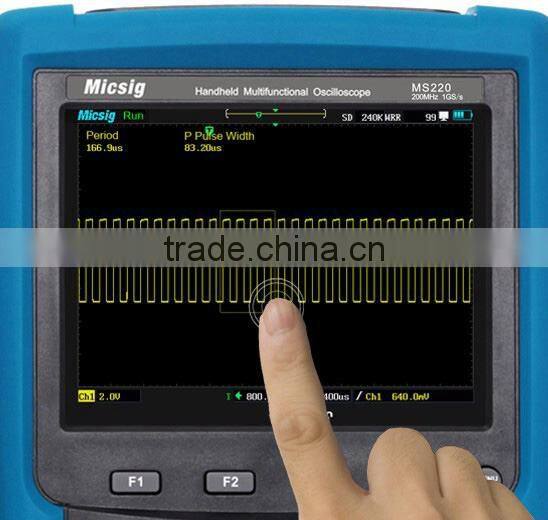

Three operation modes for moving waveform, zooming in and out, and using menu by touch,button and scroll wheel.

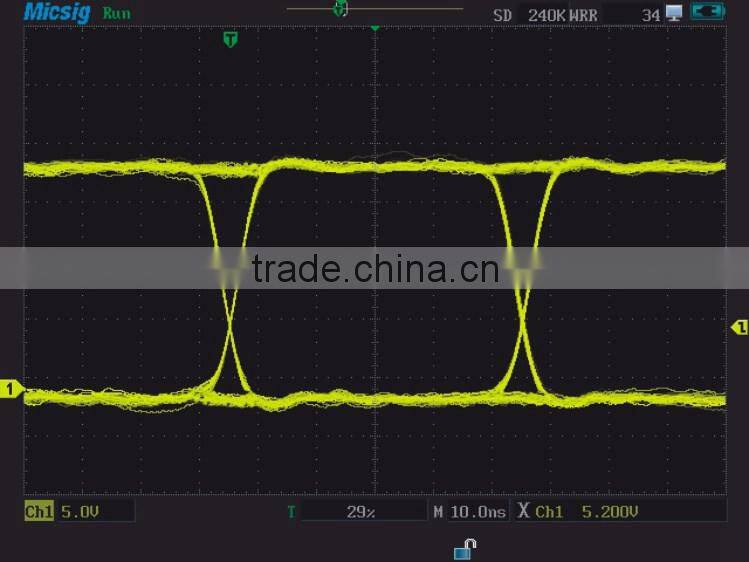

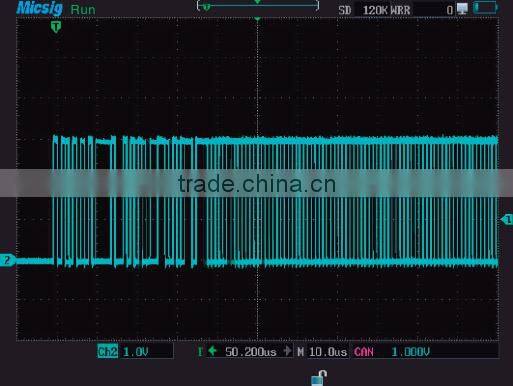

A perfect eye pattern contains an immense amount of parametric information about a signal, it gives you a visual indication of overall signal quality, noise level and signal jitter without looking at the data content. it finds errors like improper cable connections, bad contacts,incorrect grounding and missing or superfluous terminators. Serial bus trigger can be set to a variety of trigge conditions, users can find the wanted frame directly, reducing lots of their working loads.

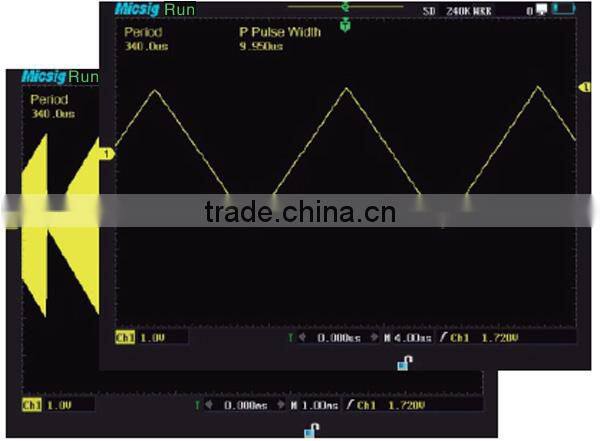

240Kpts memory depth		The ScopeSuite of Micsig's software functions include updating, real time control, measurement, storage, dynamic display, record and data analysis.

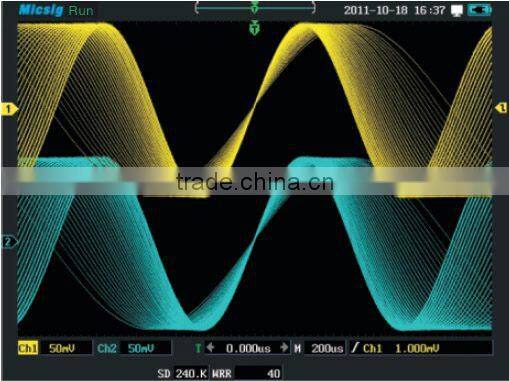

640 * 480 high resolution		Persistance function keeps the abnormal signal stay longer and easy for analysis

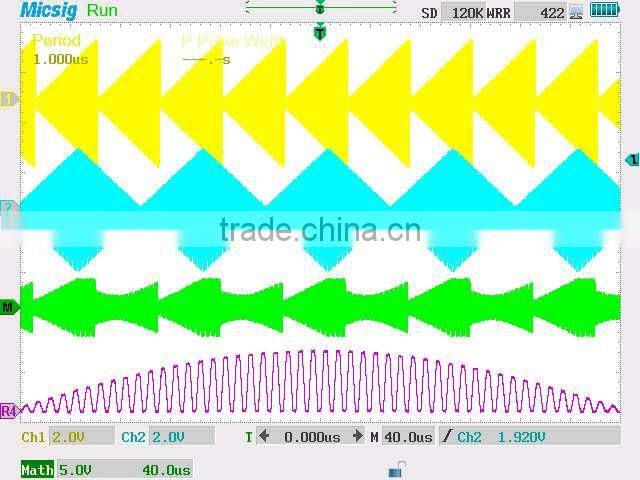

Indoor mode		Outdoor mode

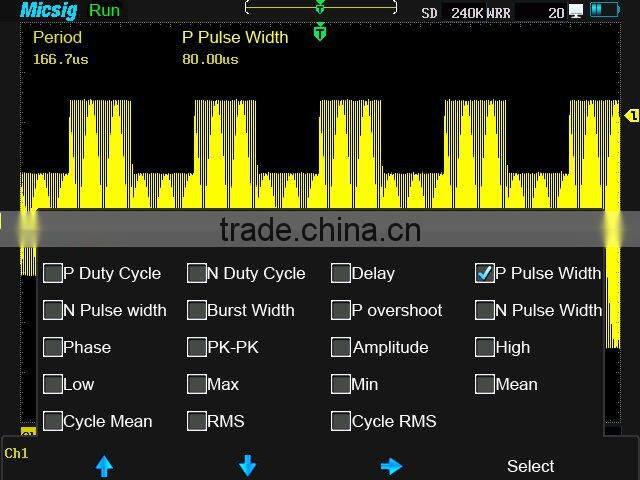

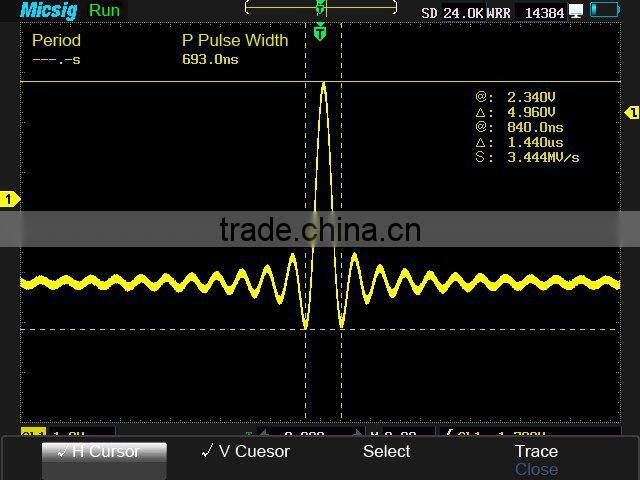

31 auto measurements		Horizontal cursor, vertical cursor, cross cursor

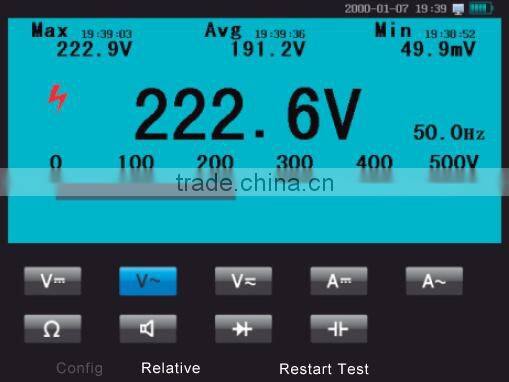

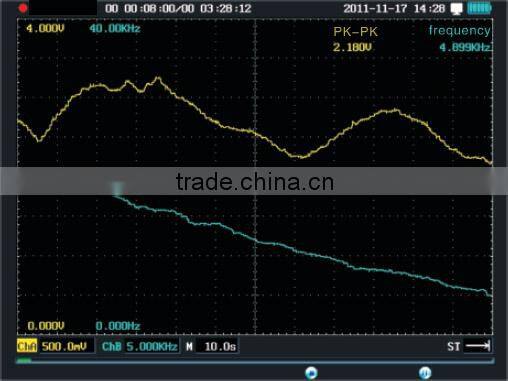

3 types of record modes: multimeter record,oscilloscope measurement record and oscilloscope waveform record.		10 physical measurements such as AC/DC voltage, current, resistance etc.

Model	MS207T	MS210T	MS215T	MS220T
Bandwidth (BW)	70MHz	100MHz	150MHz	200MHz
Rise time	≤5ns	≤3.5ns	≤2.33ns	≤1.75ns
Real time sampling rate	single channel :1GSa/s,dual-channels:500MSa/s
Memory depth	single channel :240Kpts,dual-channels:120Kpts
Isolated channel	not support
Max waveform capture rate	-(can be upgraded to 50K wfms/s)
Serial bus trigger	support
Vertical system
Channels	2 oscilloscope channels,1 multimeter channel
Limited bandwidth	20MHz
Coupling modes	DC,AC,GND
Input impedance	parallel 1MΩ±1% with 15pF±3pF
Vertical scale	5mV/div~50V/div
Vertical resolution	8bits
Max voltage input	600V CAT Ⅱ 300V CAT Ⅲ
DC vertical gain accuracy	5mV/div~50V/div,2.0%
Horizontal system
Timebase	4ns/div~10s/div
Timebase delay range	-12divs~50s
Timebase accuracy	20ppm
Sample mode	normal,average, pk-pk,envelope
Dynamic record	- (can be upgraded)
Store waveform	4 ref waveforms (can be upgraded to flash disk storage)
Trigger system
Trigger types	edge, pulse, logic, serial bus(UART,LIN,CAN,SPI,I2C)
Trigger coupling	DC,AC,High-frequency suppression,Low-frequency suppression, Noise suppression
Trigger modes	auto, normal, single
Trigger scource	CH1,CH2
Inhibition range	200ns~10s
Measurement
Automatic measurements	31 types
Cursor types	horizontal cursor, vertical cursor, cross cursor
Math
Operator	+ , - , * , /
FFT window settings	Rectangular, Hamming, Blackman-Harris, Hanning
Display Features
Screen	5.7 inch TFT LCD touch screen
Resolution	640*480
3D waveform display	not support
Grid of waveform display zone	horizontal 12 divs *vertical 8 divs
Form	YT form (can be upgraded to XY form)
Persist	auto, 100ms~10s or ∞
I/O Port
Mini USB2.0	connect to PC
USB2.0	connect to flash disk
WiFi	not support
Multimeter
Measurement types	10 physical measurements ,such as voltage, current, resistance, capacitance, diode , etc
Measuremet accuracy	4 bits
Measurement display	max, average, min, values with time stamp,relative measurement
Data Logger
Logger content	multimeter measurements, oscilloscope waveform, oscilloscope measurements
Logger timebase	multimeter measurements,10s/div ~ 20min/div; oscilloscope measurements 10s/div ~ 20min/div oscilloscope waveform 100us/div ~ 2min/div
Logger time length	max 17 days (can be upgraded to flash disk record)
Power
Power adapter	input:100-240VAC,50-60Hz,2A; output:12VDC,5A
Battery	capacity:7.4V/6000mAh, work time:4~5 hours
Work environment
Temperature	-20°C ~ +50°C
Humidity	< 85%RH
Dimension
Size	254mm160mm60mm
Weight	main unit: 1380g (no battery), accessories(standard): 691g,battery(standard): 276g.
