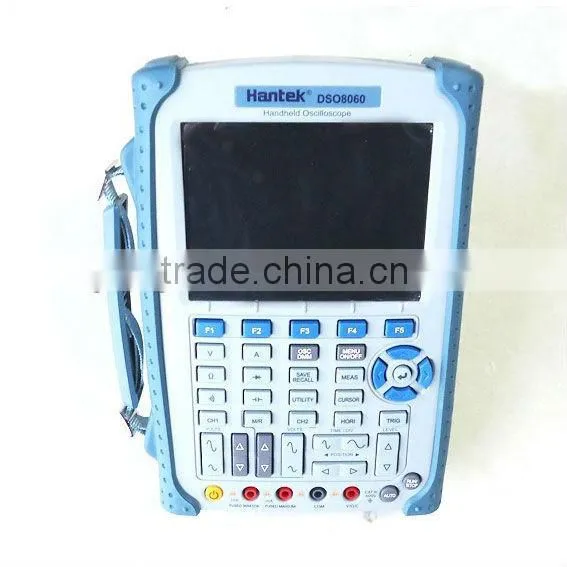

HANTEK DSO8060 Digital Storage Oscilloscope DSO 5.7 LCD 60MHz 2 Channel Handheld Oscilloscope

Name: HANTEK DSO8060 Digital Storage Oscilloscope DSO 5.7 LCD 60MHz 2 Channel Handheld Oscilloscope
Brand: HANTEK
SKU: 130777183

HANTEK DSO8060 Digital Storage Oscilloscope DSO 5.7 LCD 60MHz 2 Channel Handheld Oscilloscope thumbnail-1

HANTEK DSO8060 Digital Storage Oscilloscope DSO 5.7 LCD 60MHz 2 Channel Handheld Oscilloscope photo-1

US$ 450 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HANTEK

Model Number:

DSO8060

Contact Supplier Request Quote Chat Now

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HANTEK

Model Number DSO8060

Specifications

HANTEK DSO8060 Digital Storage Oscilloscope DSO 5.7 LCD 60MHz 2 Channel Handheld Oscilloscope

HANTEK DSO8060 Digital Storage Oscilloscope DSO 5.7 LCD 60MHz 2 Channel Handheld Oscilloscope

General Introduction:

Hantek DSO8060 is the double-channel digital oscilloscope with installed multimeter and signal source. Bandwidth is 60MHz. Real-time sampling rate is 250MSa/s. Frequency range is 1-25MHz. Multimeter mode allows user to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.

This handheld digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.

Features:

Large 5.7" TFT color LCD display with backlight.
USB Host/Device 2.0 full-speed interface with removable disk support. RS-232/LAN optional. Easy to control with PC or at long-distance.
Bandwidth 60MHz
Functions of high precision digital multimeter(6000 counts).
- AC/DC voltage
- AC/DC current
- Resistance
- Capacitance
- Continuity
- Diode test
High refresh rate. High real-time sample rate 250MSa/s, 50GSa/s equivalent-time sample rate.
Math: FFT , + , - , * , / ,X-Y. Pass/Fail function. 22 automatic measurements.
Multiform trigger mode, 2 separate time base in ALT trigger mode. Easy to see 2 signal with different frequencies.
1000 waveform records.
Installed battery: 6 hours work time.
Saving waveforms in .jpg/.bmp format, MS excel/word files.
LabviewVBVC second design instance.

Software compatible with: Windows NT, Windows 2000, Windows XP ,VISTA

Specifications:

Vertical
Channels	2
Bandwidth, MHz	60
Rise Time, ns	5.8
Input Sensitivity	10mV/div to 5V/div
Input Impedance	Resistance 1M
Input Impedance	Capacitance 15 pF
Input Coupling	AC, DC and GND
Vertical Resolution	8 bits
Maximum Input	300V (DC+AC Peak)
Horizontal
Real-Time Sampling Rate	250MSa/s
Equivalent Sampling Rate	50GSa/S
Time Base Range	5ns/div~1000s/div
Memory Depth	32k at Single Channel, 16k at Dual Channel
Time Base Precision	±50ppm
Trigger
Source	CH1, CH2
Mode	Edge, Video, Pulse Width, Alternative
X-Y Mode
X-Axis Input	Channel 1
Y-Axis Input	Channel 2
Phase Shift	Max.3 degree
Cursors and Measurement
Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Delay Measurement	Delay time from ch1 rising edge to ch2 rising edge, Delay time from ch1 falling edge to ch2 falling edge
Cursors Measurement	Manual, Track, Auto Measure Modes
Multimeter Mode
Maximum Resolution	6,000 Counts
Testing Modes	Ac/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity
Maximum Input Voltage	AC: 600V, DC: 800V
Maximum Input Current	AC: 10A, DC: 10A
Input Impedance	10 MΩ
Signal Source Mode
Waveform Frequency	DC~25MHz
DAC Clock	2K~200MHz adjustable
Frequency Resolution	0.1%
Channel count	1CH waveform output
Waveform Deepth	4KSa
Vertical Resolution	12
Frequency Stability	<30ppm
Waveform Range	±3.5V Max.
Output Impedance	50Ω
Output Current	50mA Ipeak=50mA
System BW	25M
Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)
Measure Frequncy Channel
Frequency Range	DC~60MHz
Input Range	400mVpp~18Vpp
Coupling Mode	DC
Frequency Measurement Accuracy	±Time Base Error ±1 Count
Input Impedance	> 100KΩ
General information
Waveform Signal Process	CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Storage	15 Waveforms and Setups
Display	TFT LCD Type 5.7 Inch with LED Backlight Display
Display Resolution	240 (Vertical) x 320 (Horizontal) Dots
USB	USB Host / Device 2.0 Full Speed Supported
Optional	RS232, LAN
Power Source	AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA, Battery Power (Installed) 6 Hours (Li-ion Battery)
Dimension	245 x 163 x 52 mm
Weight	1.2kg
