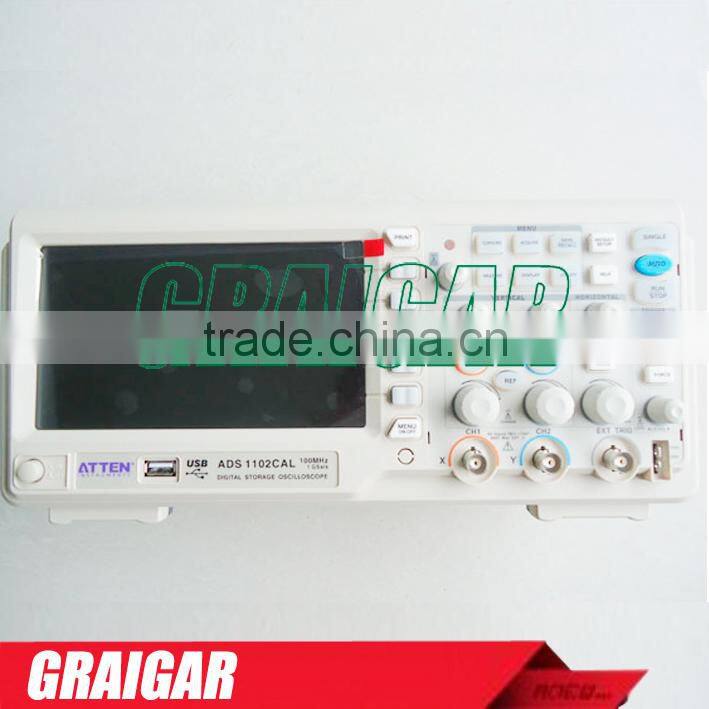

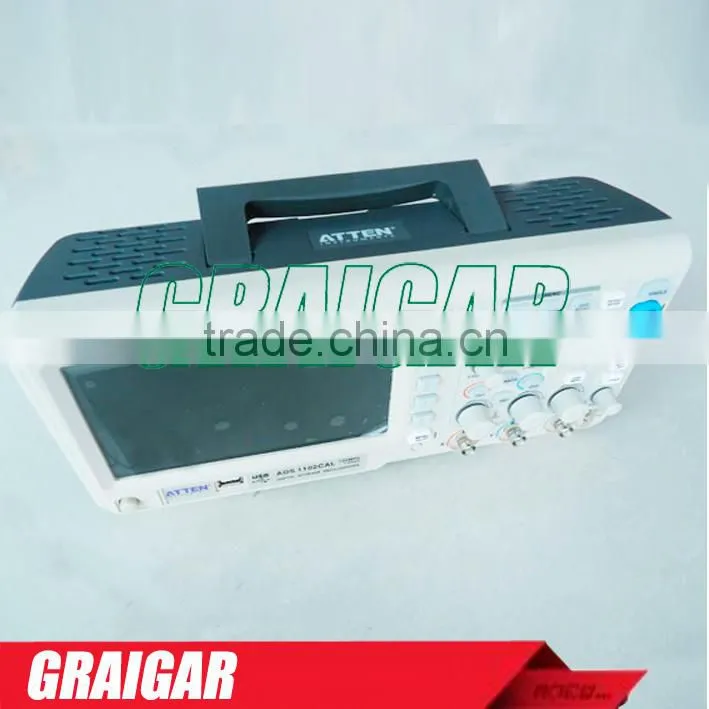

ATTEN ADS1102CAL 100MHz 1G Digital Oscilloscope 7" LCD
Summery
Ultra thin outward appearance design and internationalization research and development idea made ADS1000CAL series products with more powerful performance and more friendly operation.
The ADS1000CAL series product volume exquisite, operation is flexible; Colored TFT LCD display and Pop-up menu pattern manifests its user friendly; Rich trigger ways can meet a user more extensive need; Multiple Languages User Interface will be develop the ADS1000CAL series product international market.

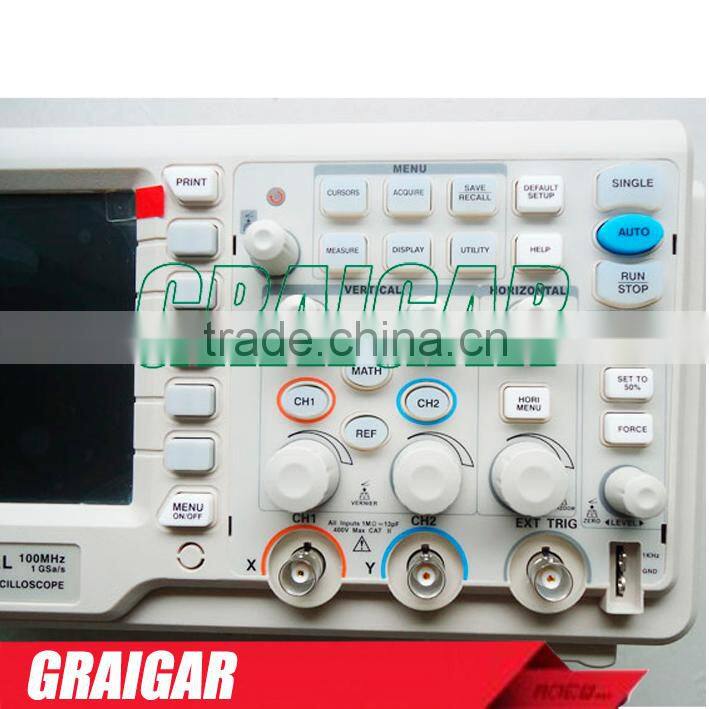

ADS1000CAL Series Characteristic
* The volume exquisite and it is convenient for carrying;
* Used Colored TFT LCD, the waveform display is clearer and stable;
* Dual channel-channel bandwidth 60MHZ-100MHZ;
* The real time sampling rate is 1GSas;
* Memory depth of ADS1000CAL is 40Kpts;
* Trigger Models Edge, Pulse, Video, Slope, Alternative and Delay trigger modes;
* Unique Digital Filter function and Waveform recorder function;
* Pass/Fail function;
* Thirty two parameters Auto measure function;
* Cursor measure covers Manual mode, Track mode and Auto mode;
* Channel waveform and its FFT waveform display on split screen;
* Pop-up Menu display pattern is more convenient for users using it;
* Multiple Language User Interface;
* Support multilingual online help system;
Abundant Trigger Function
ADS1000CAL series products have rich trigger modes Edge, Pulse, Video, Slope, Alternative and delay trigger mode, which satisfy with users more extensive needs. Alternative trigger mode is usually used to observing two non-correlated signals at the same time and users can select different trigger mode for two channels, which is a kind reproduction that analog oscilloscope function in the digital oscilloscope.
FFT Waveform Split Display Function
FFT wave form and its Channel waveform can display on split screen at the same time. In split display mode, the screen is divided eight divides in vertical direction. That is similar to under the entire screen pattern simultaneously to observe two waveforms. This way will make users observe waveforms to be clearer and convenient.
Multi-country Language User Interface Display Function
ADS1000CAL series product has 11 languages user interface display function Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese and Korean, which has further developed the ADS1000CAL series product international market and has laid the foundation for ADS1000CAL series making for the international well-know brand products
Auto Measure Function
ADS1000CAL series can auto measure thirty two parameters, which is most in the same level digital oscilloscopes. Auto measure function can eliminate user error consumedly, and more accurately using it. ADS1000CAL series also have all measurement function that displays all the waveform parameters on the screen according to measure kinds, and users can ready measure parameters value expediently. So ADS1000CAL series are your most perfect measure tools in current market.
Cursor Survey Function
ADS1000CAL series cursor survey function has three kind modes Auto manual mode, Track mode, Auto mode. The user may according to own need to choose the survey pattern nimbly, thus with ease read measure results from the top right of the screen or experience completely automatic intelligent design pattern
Digital Filter Function
ADS1000CAL series provide a digital filter function and users can use it setting upper limit and lower limit of frequency to reduce signal noise and filter error signal. So they can observe their interested signal, which will advance users’ work efficiency consumedly
Waveform Recorder Function
Using this function, users can continue record data of their need signals as the form of frame. Waveform recorder can record input waveform from CH1 and CH2, with maximum record length of 1500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping and eye watching it.
Pass/Fail Function
Users may use the Pass/Fail function which the ADS1000CAL series provides to carry on the product test. Through a series of setups, the oscilloscope can output the test result automatically which enhanced the product production efficiency greatly
Display
ADS1000CAL series products use the colored TFT LCD. The screen display parameter value and the waveform are clearer, stably and nature; that is also more advantageous to alleviate tiredness of users using the instrument extended periods at a time
Powerful EasyScope3.0 Software

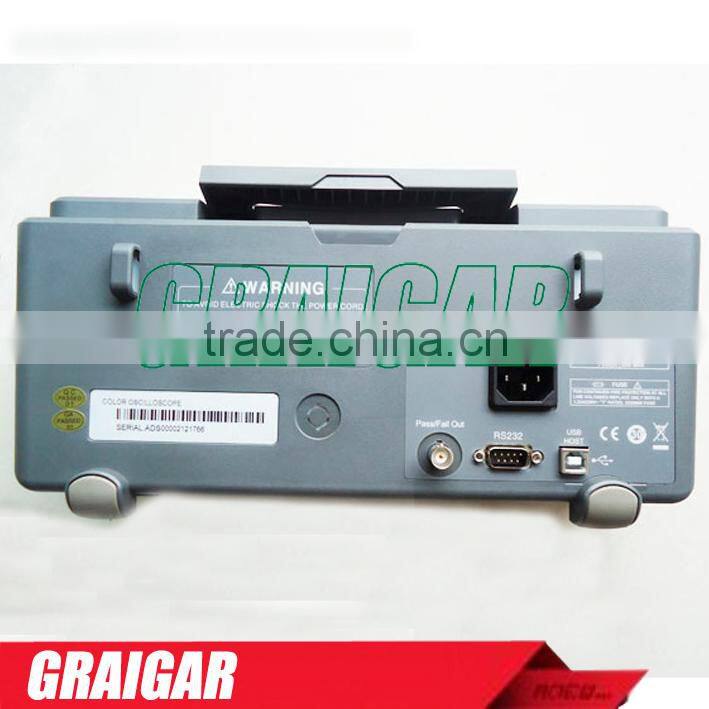

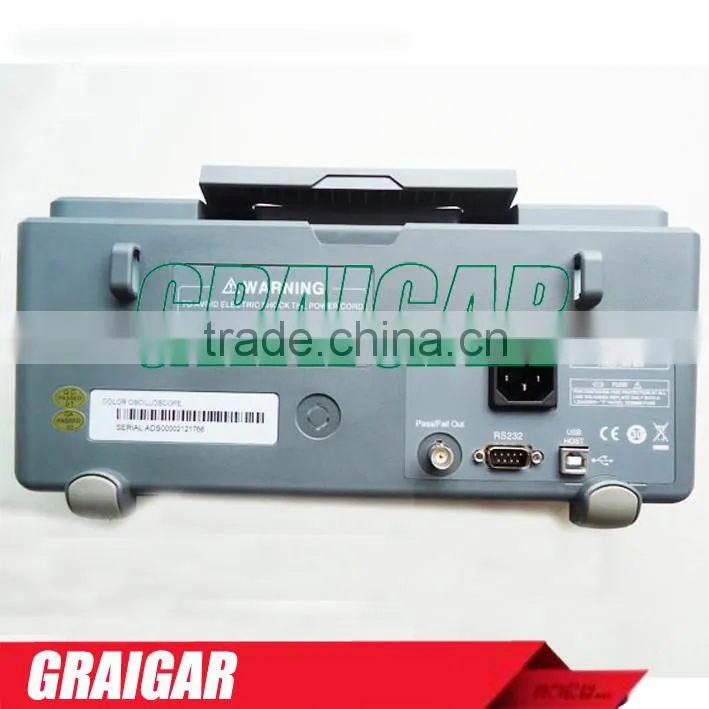

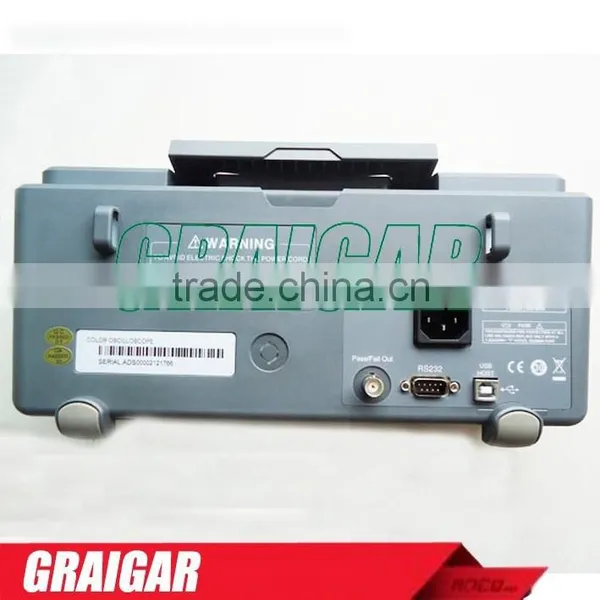

EasyScope3.0 software is the powerful system software suitable for ADS1000CAL series products. This software can be compatible RS-232 and USB Device to realize communication between the computer and the oscilloscope, then realizes long-distance control. Simultaneously this software can automatic real-time refresh waveform data , provide waveforms, measure data, sampling data, screen images read, storage and printing functions. In addition EasyScope3.0 also has setups upload and download function. Most quickly basing on millisecond level interactive between PC and ADS1000CAL series make users to be easier to analyze, research waveforms and data.
Models
Model Index |
ADS1102CAL |
ADS1062CAL |
Bandwidth |
100MHZ |
60MHZ |
Sampling Rate |
Single Channel: 1GSa/s; Double Channel: 500MSa/s |
|
Equivalent Sampling Rate |
50GSa/s |
|
Memory Depth |
Single Channel: 18Kpts; Double Channels: 9Kpts/CH |
|
Rise Time |
<3.5ns |
<5.8ns |
Input Impedance |
1M ohm 17pF |
|
Sec/div Range |
2.5ns/div-50s/div |
5ns/div-50s/div |
Display |
Color TFT(480*234)7.0” LCD |
Color TFT(480*234)7.0” LCD |
Common Specifications of ADS1000CAL Series
The Common Specifications Of All ADS1000CAL Series Products | |
Display |
8x18 divides full screen display |
Channels |
2 |
Vertical Sensitivity |
2mv-10v/div(1-2-5 Sequence) |
Vertical Resolution |
8bit |
Input coupling |
DC, AC, GND |
Input Max voltage |
400V(Vpp) |
Trigger Types |
Edge, Pulse, Video, Slope, Alternative, Delay |
Trigger Modes |
Auto, Normal, Single |
Trigger Source |
CH1, CH2, Ext, Ext/5, AC Line |
Save/Recall |
Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function |
Auto Measure Types |
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
Cursor measure |
Manual, Track, Auto |
Sample Types |
Real Time, Equivalent Time |
Averages |
4, 16, 32, 64, 128, 256 |
Math |
+, -, *, /, Invert |
FFT |
Window: Hanning, Hamming, Blackman, Rectangular |
Sampling Points: 1024 points | |
XY Mode |
Phase Error: +/-3 degrees |
Display Model |
Main, Window, Window Zoom, Roll, X-Y |
Menu Display |
2Sec, 5Sec, 10Sec, 20Sec, Infinite |
Skin |
Classical, Modern, Tradition, Succinct |
Display Language |
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean |
Power Source Voltage |
100-240VAC, 47HZ-440HZ, 50VA Max, CATII |
Size and Weight |
339mm x 110.5mm x148.5mm, about2.4kg |
USB Host |
Support USB flash drive storage |
USB Device |
Support PictBridge compatible printers and PC Remote control RS-232 |

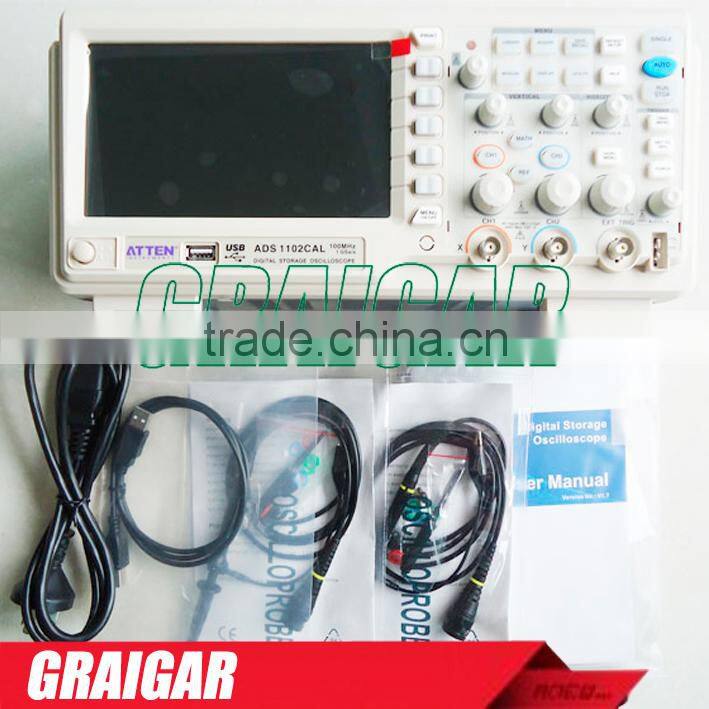

Accessories |
(1:1, 10:1)Problex2, EasyScope Computer Software System, Power Cord, USB Cable, User Manual, |
EasyDsoLib Software Package, | |
