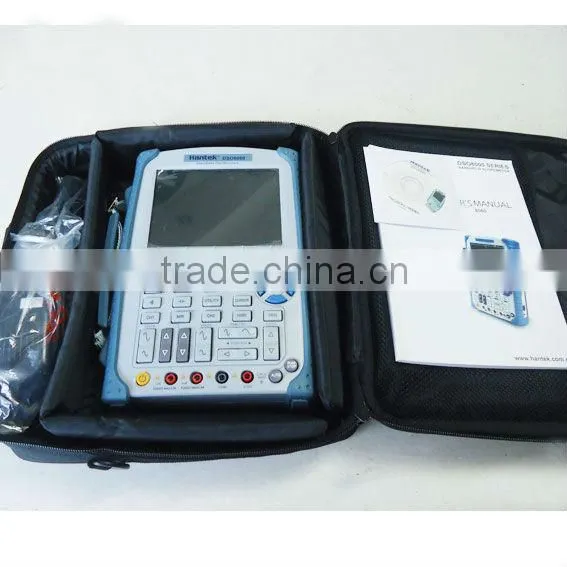

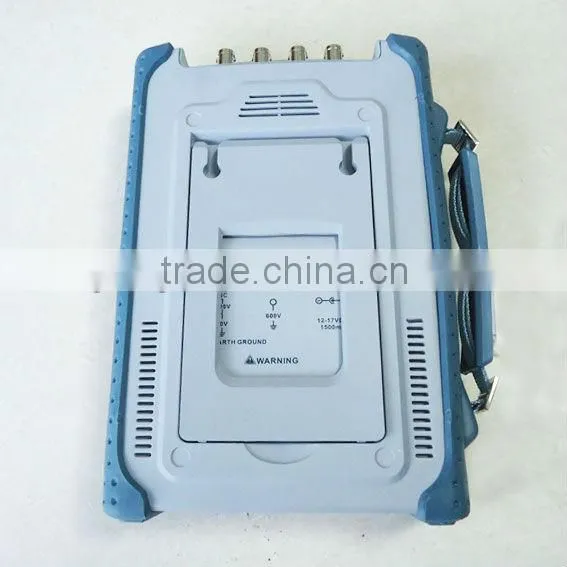

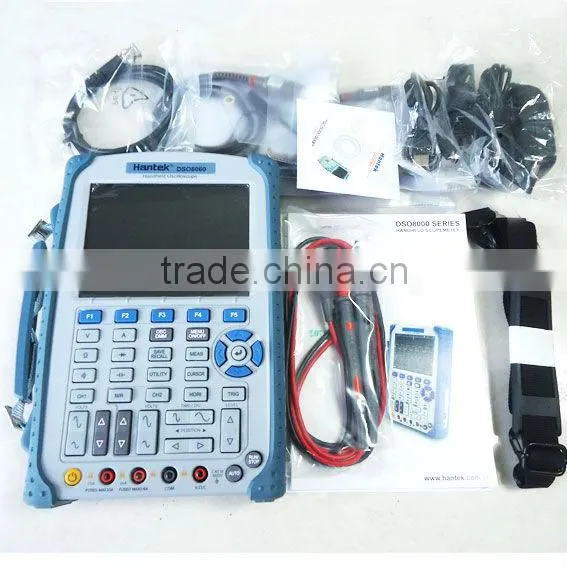

Hantek DSO8060 60M Hz 5-in-1 Handheld Oscilloscope DMM Spectrum Analyzer

Specifications

Hantek DSO8060 60M Hz 5-in-1 Handheld Oscilloscope DMM Spectrum Analyzer

Hantek DSO8060 60M Hz 5-in-1 Handheld Oscilloscope DMM Spectrum Analyzer

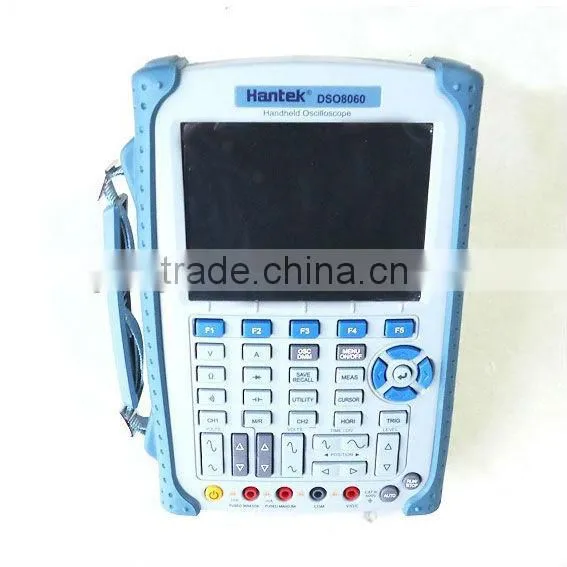

General Introduction:

Hantek DSO8060 is the double-channel digital oscilloscope with installed multimeter and signal source. Bandwidth is 60MHz. Real-time sampling rate is 250MSa/s. Frequency range is 1-25MHz. Multimeter mode allows user to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.

This handheld digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.





Features:

• Large 5.7" TFT color LCD display with backlight.
• USB Host/Device 2.0 full-speed interface with removable disk support. RS-232/LAN optional. Easy to control with PC or at long-distance.
• Bandwidth 60MHz
• Functions of high precision digital multimeter(6000 counts).
  • AC/DC voltage
  • AC/DC current
  • Resistance
  • Capacitance
  • Continuity
  • Diode test
• High refresh rate. High real-time sample rate 250MSa/s, 50GSa/s equivalent-time sample rate.
• Math: FFT , + , - , * , / ,X-Y. Pass/Fail function. 22 automatic measurements.
• Multiform trigger mode, 2 separate time base in ALT trigger mode. Easy to see 2 signal with different frequencies.
• 1000 waveform records.
• Installed battery: 6 hours work time.
• Saving waveforms in .jpg/.bmp format, MS excel/word files.
• LabviewVBVC second design instance.
• Software compatible with: Windows NT, Windows 2000, Windows XP ,VISTA



  Specifications:

  Vertical
  Channels	2
  Bandwidth, MHz	60
  Rise Time, ns	5.8
  Input Sensitivity	10mV/div to 5V/div
  Input Impedance	Resistance 1M
  	Capacitance 15 pF
  Input Coupling	AC, DC and GND
  Vertical Resolution	8 bits
  Maximum Input	300V (DC+AC Peak)
  Horizontal
  Real-Time Sampling Rate	250MSa/s
  Equivalent Sampling Rate	50GSa/S
  Time Base Range	5ns/div~1000s/div
  Memory Depth	32k at Single Channel, 16k at Dual Channel
  Time Base Precision	±50ppm
  Trigger
  Source	CH1, CH2
  Mode	Edge, Video, Pulse Width, Alternative
  X-Y Mode
  X-Axis Input	Channel 1
  Y-Axis Input	Channel 2
  Phase Shift	Max.3 degree
  Cursors and Measurement
  Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
  Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
  Delay Measurement	Delay time from ch1 rising edge to ch2 rising edge, Delay time from ch1 falling edge to ch2 falling edge
  Cursors Measurement	Manual, Track, Auto Measure Modes
  Multimeter Mode
  Maximum Resolution	6,000 Counts
  Testing Modes	Ac/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity
  Maximum Input Voltage	AC: 600V, DC: 800V
  Maximum Input Current	AC: 10A, DC: 10A
  Input Impedance	10 MΩ
  Signal Source Mode
  Waveform Frequency	DC~25MHz
  DAC Clock	2K~200MHz adjustable
  Frequency Resolution	0.1%
  Channel count	1CH waveform output
  Waveform Deepth	4KSa
  Vertical Resolution	12
  Frequency Stability	<30ppm
  Waveform Range	±3.5V Max.
  Output Impedance	50Ω
  Output Current	50mA Ipeak=50mA
  System BW	25M
  Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)
  Measure Frequncy Channel
  Frequency Range	DC~60MHz
  Input Range	400mVpp~18Vpp
  Coupling Mode	DC
  Frequency Measurement Accuracy	±Time Base Error ±1 Count
  Input Impedance	> 100KΩ
  General information
  Waveform Signal Process	CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
  Storage	15 Waveforms and Setups
  Display	TFT LCD Type 5.7 Inch with LED Backlight Display
  Display Resolution	240 (Vertical) x 320 (Horizontal) Dots
  USB	USB Host / Device 2.0 Full Speed Supported
  Optional	RS232, LAN
  Power Source	AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA, Battery Power (Installed) 6 Hours (Li-ion Battery)
  Dimension	245 x 163 x 52 mm
  Weight	1.2kg
