Specifications

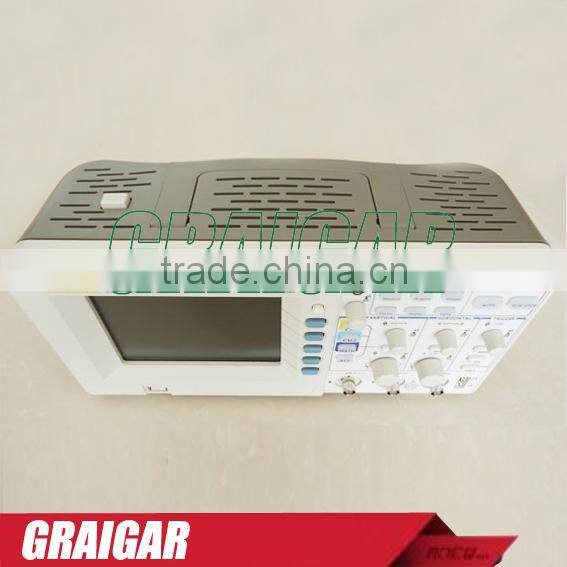

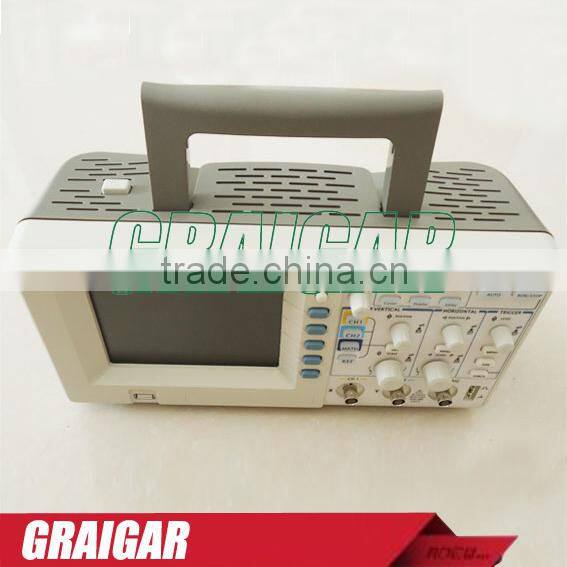

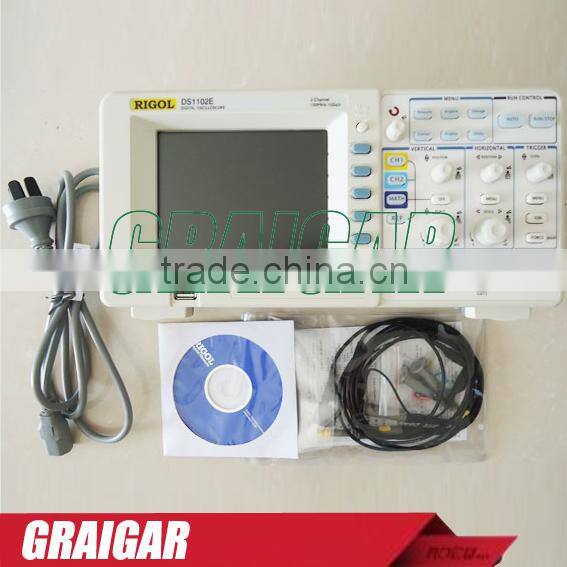

RIGOL DS1102E DS 1102E 2 Channel Digital Oscilloscope 100MHz DSO 1GSa/S
RIGOL DS1102E DS 1102E 2 Channel Digital Oscilloscope 100MHz DSO 1GSa/S
Application
1. Design and Debug
2. Manufacturing
3. Education & Training
4. Service & Maintenance
Advanced Features
1. A true mixed signal oscilloscope with 16channel Logic Analyzer (DS1000D)
2. 1 GSa/s maximum Real-time Sample Rate and 1Mpts of memory depth
3. Bandwidth options: 50MHz and 100MHz
4. Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate
5. 64 k TFT Color LCD, bright and vivid waveformdisplay
6. Direct print to PictBridge compatible printers via USB Device interface
7. Compact design to save your desktop space
Performance Characteristics
| Model | DS1102E | |
| Bandwidth | 100 MHz | |
| Channels | Dual Channels + External Trigger | |
| Real-time Sample Rate | 1 GSa/s(Single Channel), 500 MSa/s(Dual Channels) | |
| Equivalent-time Sample Rate | 25GSa/s | |
| Rise Time | 3.5ns | |
| Memory Depth | Channel Mode | Sample Rate |
| Single Channel | 1GSa/s | |
| Single Channel | 500MSa/s or lower | |
| Dual Channels | 500MSa/s or lower | |
| Timebase Range | 2 ns/div ~50s/div | |
| Trigger Modes | Edge, Video, Pulse Width, Slope, Alternate | |
| Vertical Resolution | 8 bits | |
| Vertical Sensitivity | 2 mV/div ~10V/div | |
| Maximum Input Voltage | All inputs 1M15pF 300V RMS CAT 1 | |
| Input Coupling | DC,AC,GND | |
| Roll Range | 500ms/div ~50s/div | |
| Cursor Measurements | Manual,Track and Auto Measure modes | |
| Math | +, -, ×, FFT | |
| Internal Stroge | 10 Waveforms and 10 Setups | |
| USB Storage | BMP, CSV, Waveforms and Setups | |
| Connectivity | USB Device, USB Host, RS-232, P/F Out | |
| Display | 5.6? TFT (64 k, Color LCD ), 320×234 resolution | |
| Power Supply | AC:100 ~ 240 VACRMS, 45 ~ 440 Hz, CAT II, 50 VA Max | |
Model |
DS1102E |
DS1052E |
||
Bandwidth |
100 MHz |
50 MHz |
||
Analog channel No. |
2 |
|||
Logical channel No. |
N/A |
|||
Rate of Real-time sampling |
1 GSa/ssingle channel,500 MSa/sdual channel |
|||
Rate of Equivalent sampling |
25 GSa/s |
10 GSa/s |
||
Stored deep-channel |
Channel Mode |
sampling rate |
common storage |
long storage |
Channel Mode |
1 GSa/s |
16 kpts |
N/A |
|
500 MSa / s,or less |
16 kpts |
1 Mpts |
||
Dual-channel |
500 MSa / s,or less |
8 kpts |
512 kpts |
|
Standard Interface |
USB Host & Device, RS-232, P/F Out |
|||
Optional |
USB-GPIB Interface Adapter |
|||
Product Category |
Desktop Digital Oscilloscope |
|||
Dimensions |
W × H × D = 303mm × 154mm × 133mm |
|||
Weight |
2.4 kg |
|||
