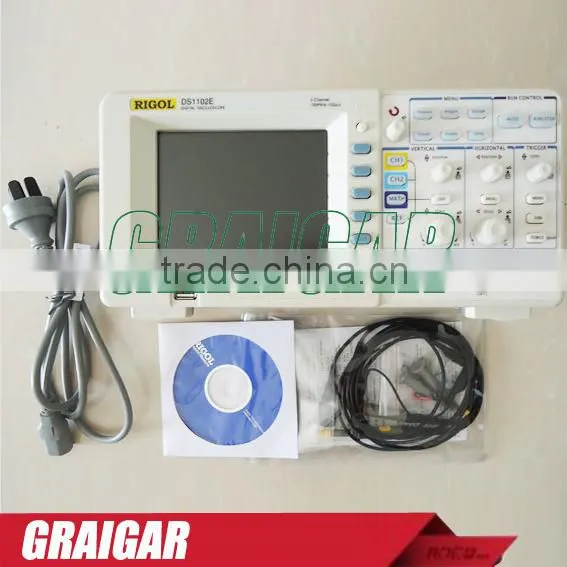

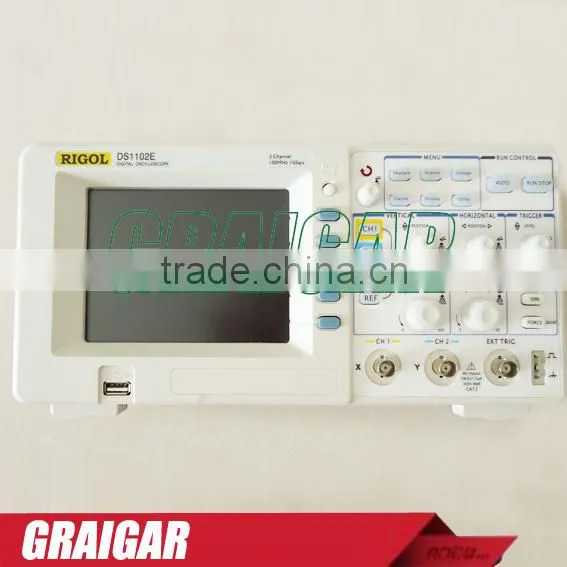

RIGOL Digital Oscilloscope 100MHz DSO 1GSa/S DS1102E 2 Channel

Specifications

RIGOL Digital Oscilloscope 100MHz DSO 1GSa/S DS1102E 2 Channel





RIGOL Digital Oscilloscope 100MHz DSO 1GSa/S DS1102E 2 Channel







Application



1. Design and Debug
2. Manufacturing
3. Education & Training
4. Service & Maintenance



Advanced Features



1. A true mixed signal oscilloscope with 16channel Logic Analyzer (DS1000D)
2. 1 GSa/s maximum Real-time Sample Rate and 1Mpts of memory depth
3. Bandwidth options: 50MHz and 100MHz
4. Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate
5. 64 k TFT Color LCD, bright and vivid waveformdisplay
6. Direct print to PictBridge compatible printers via USB Device interface
7. Compact design to save your desktop space







Performance Characteristics



Model	DS1102E
Bandwidth	100 MHz
Channels	Dual Channels + External Trigger
Real-time Sample Rate	1 GSa/s(Single Channel), 500 MSa/s(Dual Channels)
Equivalent-time Sample Rate	25GSa/s
Rise Time	3.5ns
Memory Depth	Channel Mode	Sample Rate
	Single Channel	1GSa/s
	Single Channel	500MSa/s or lower
	Dual Channels	500MSa/s or lower
Timebase Range	2 ns/div ~50s/div
Trigger Modes	Edge, Video, Pulse Width, Slope, Alternate
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div ~10V/div
Maximum Input Voltage	All inputs 1M15pF 300V RMS CAT 1
Input Coupling	DC,AC,GND
Roll Range	500ms/div ~50s/div
Cursor Measurements	Manual,Track and Auto Measure modes
Math	+, -, ×, FFT
Internal Stroge	10 Waveforms and 10 Setups
USB Storage	BMP, CSV, Waveforms and Setups
Connectivity	USB Device, USB Host, RS-232, P/F Out
Display	5.6? TFT (64 k, Color LCD ), 320×234 resolution
Power Supply	AC:100 ~ 240 VACRMS, 45 ~ 440 Hz, CAT II, 50 VA Max
