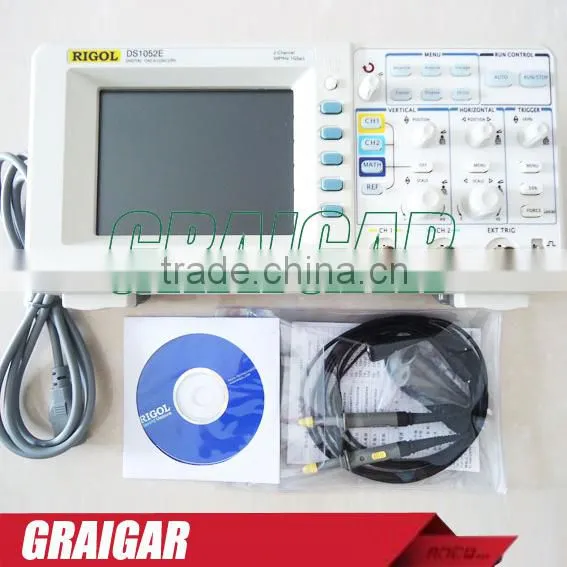

50MHz DSO 1GSa/S 2 Channel DS 1052E Digital Oscilloscope RIGOL DS1052E
50MHz DSO 1GSa/S 2 Channel DS 1052E Digital Oscilloscope RIGOL DS1052E
Product Information:
RIGOL DS1052E Digital Oscilloscope features 2 input channels, up to 1 GS/s real time sample rate, up to 50 MHz bandwidth, and much more to simplify your system design and test.
The DS1052E Digital Oscilloscope provides exceptional waveform viewing and measurements in a compact, lightweight package, ideal for production test, field service, research, design, and education and training applications involving analog/digital circuits test and troubleshooting.
The 5.7" QVGA (320X240) 64 K TFT color display uses the latest LED backlight technology, giving you the best viewing experience, yet consumes less power and provides a longer lifespan.
SPECIFICATIONS:
• 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate.
• 1Mpts long Memory Depth
• 100 MHz, 50 MHz Bandwidths
• Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
• 64K TFT color LCD, bright and vivid waveform display
• Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
• Adjustable bigger sensitivity: Effectively filter noise from bigger signal and avoid false trigger
• 20 automatic measurements
• Cursor measurements: Manual, Track and Auto Measure modes
• 10 waveforms, 10 setups, BMP and CSV storage
• Math functions: +, -, x, FFT, Invert
• Special digital filter and waveform recorder
• Built-in hardware frequency counter
• Standard interface: USB Device, USB Host, RS-232
• Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation
• Multi-language user interface, built-in help system
• Direct print to PictBridge compatible printers via USB Device interface
Model |
DS1102E |
DS1052E |
||
Bandwidth |
100 MHz |
50 MHz |
||
Analog channel No. |
2 |
|||
Logical channel No. |
N/A |
|||
Rate of Real-time sampling |
1 GSa/ssingle channel,500 MSa/sdual channel |
|||
Rate of Equivalent sampling |
25 GSa/s |
10 GSa/s |
||
Stored deep-channel |
Channel Mode |
sampling rate |
common storage |
long storage |
Channel Mode |
1 GSa/s |
16 kpts |
N/A |
|
500 MSa / s,or less |
16 kpts |
1 Mpts |
||
Dual-channel |
500 MSa / s,or less |
8 kpts |
512 kpts |
|
Standard Interface |
USB Host & Device, RS-232, P/F Out |
|||
Optional |
USB-GPIB Interface Adapter |
|||
Product Category |
Desktop Digital Oscilloscope |
|||
Dimensions |
W × H × D = 303mm × 154mm × 133mm |
|||
Weight |
2.4 kg |
|||
