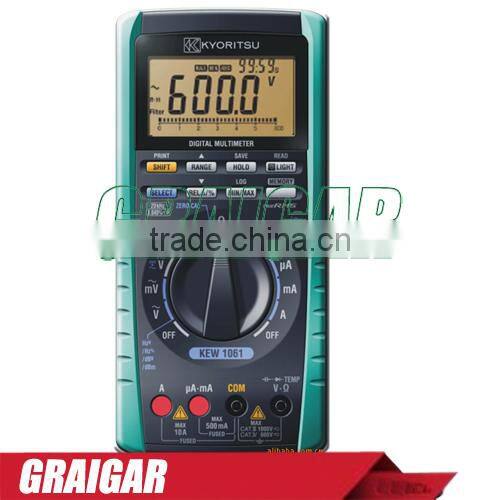

Kyoritsu 1061 Digital Multimeter High Accuracy High Performance BRAND NEW

Name: Kyoritsu 1061 Digital Multimeter High Accuracy High Performance BRAND NEW
Brand: KYORITSU
SKU: 130770597
Availability: InStock

US$ 534 - 584 MOQ: 1 Piece

Key Specifications

Place of Origin:

Japan

Brand Name:

KYORITSU

Model Number:

1061

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Japan

Brand Name KYORITSU

Model Number 1061

Measuring Voltage Range 600V

Measuring Resistance Range 100MΩ/200MΩ/400MΩ

Measuring Capacitance Range 100μF

Operating Temperature -10~50

Dimensions 192(L) x 90(W) x49(D)mm

Kyoritsu 1018 Digital Multimeters BRAND NEW

High Accuracy, High Performance and Reliable Measurements
•	0.02% basic DC accuracy
•	Large display with 50,000 counts
•	Dual display for double indication for AC and DC, V and Hz, etc.
•	True-RMS Measurements AC and AC+DC
•	Wide AC Frequency bandwidth from 10Hz to 100kHz *
•	True-RMS or MEAN value detection mode can be selected *
•	Fast Peak Hold response time of 250µs
•	Low-pass filter for motor drive measurements *
•	Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current *
•	User calibration function
* Only for KEW 1062

(Photo: 1062)


Safety design for industrial use
•	Complies with IEC 61010-1 CAT.III 1000V, CAT.IV 600V
•	Terminal shutter to prevent incorrect test leads' insertion in current terminals
•	Very wide operating temperature range from -20 to 55ºC

Reliable support for data management
•	Large data internal memory
		KEW 1062: 10,000 data (logging), 100 data (manual)
		KEW 1061: 1,000 data (logging), 100 data (manual)
•	Download data and Live Monitoring on a PC via the USB interface (Option for USB Communication set)
