Specifications

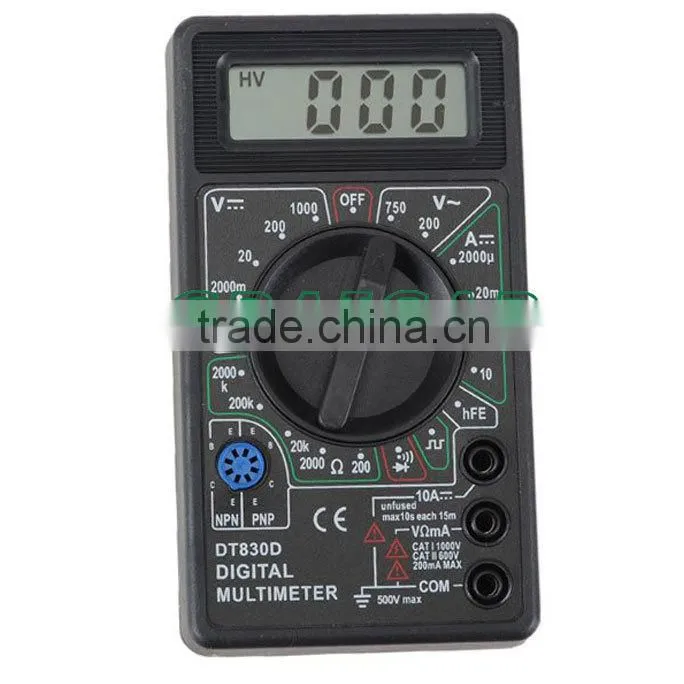

LCD Digital Voltmeter Ammeter Ohm Multimeter DT830D with Test Leads and BuzzerLCD Digital Voltmeter Ammeter Ohm Multimeter DT830D with Test Leads and Buzzer
Features:
- Model: DT830D
- 3 1/2 Digital LCD screen, the maximum display value of 1999
- Diode
- Transistor
- Overload
- Low-voltage symbol display
- On-off measurement (buzzer function)
- Function
- Range
- Accuracy
- DC voltage 200mV-1000V ± (0.5% +2dgt)
- AC voltage 200V-750V ± (1.2% +10dgt)
- DC Current 200uA-10A ± (1.0% +2dgt)
- Resistance 200?-2000K? ± (0.8% +2dgt)
- Power Supply: 6F22-type 9V battery
- Display size: 16 × 48mm
- Maximum display: 1999
DC Voltage:
Range |
Resolution |
Accuracy |
200mV |
100uV |
± 0.5% ±2D |
2000mV |
1mV |
|
20V |
10mV |
|
200V |
100mV |
|
1000V |
1V |
± 0.8% ±2D |
AC Voltage:
Range |
Resolution |
Accuracy |
200V |
100mV |
± 1.2% ±10D |
750V |
1V |
DC Current:
Range |
Resolution |
Accuracy |
200uA |
100uA |
± 1.0% ±2D |
2000uA |
1A |
|
20mA |
10A |
|
200mA |
100A |
± 1.2% ±2D |
10A |
10mA |
± 2.0% ±2D |
Resistance (ohm):
Range |
Resolution |
Accuracy |
200? |
0.1? |
± 0.8% ±2D |
2000? |
1? |
|
20K? |
10? |
|
200K? |
100? |
|
2000K? |
1K? |
± 1.0% ±2D |
Package Included:
- 1X DT830D Digital Multimeter Meter AC sound Beep Pocket
- 1X Test Leads
- 1X English User Manual
- 1X 9V Battery
|
|
