Taiwan Pro skit MT-1503 one-touch smart meter digital intelligent digital multimeter
PRODUCT DESCRIPTION
Description:
Type: MT-1503
Product features:
• with automatic shift (ac/dc voltage, ac/dc current, resistance to be automatic recognition), automatic shutdown, data keep bees, short circuit, the largest/minimum value measurement, battery low voltage instructions, double color shockproof shell... Etc. Function.
• can be measured the dc voltage, ac voltage ac voltage, the real value (Ture RMS), dc current, alternating current, resistor, capacitor, diodes.
• liquid crystal display: use 68 x 47 mm large LCD, unit symbols show, 3-3/4 digits, the biggest read worth 3999.
• input impedance: 10 M Ω
• sampling rate: three times/SEC.
• communication frequency response: 40 ~ 400 Hz
The product specification
The biggest read worth 3999
Displaying a yuan 3 three quarters
LCD backlighting N
Analogy simulation scale display N
Automatic and manual range to be automatic
Dc voltage (V) + 400 mV ± (0.5% + 3 d)
± 4 V / 40 V / 400 V ± (0.5% + 3 d)
+ 500 V ± (0.8% + 3 d)
The ac voltage (V) 400 mV / 500 V ± (1.2% + 3 d)
4 V / 40 V / 400 V ± (0.8% + 3 d)
Dc current (A) 5 mA ~ 400 mA ± (2.0% + 5 d)
4 A ± (2.0% + 5 d)
Ac current (A) 5 mA ~ 400 mA ± (2.5% + 5 d)
4 A ± (2.5% + 5 d)
Resistance (Ω) 400 Ω ± (1.0% + 5 d)
4 k Ω / 40 k Ω / 400 k Ω / 4 M Ω ± (1.0% + 3 d)
40 M Ω ± (2.0% + 3 d)
Capacitance (u F) 40 nF ~ 40 u F ± (3.0% + 5 d)
400 u F-4000 u F ± (20.0% + 5 d)
Short circuit peak sound Y
A diode test Y
Transistor test N
Data keep Y
The biggest/minimum value measurement minimum/maximum
The relative value of measurement N
Occupies emptiescompared measurement N
Computer online N
Automatic shutdown Y
The battery is low voltage instructions Y
Input warning N
EN61010-1 safety norms CAT II/CAT III 1000 DC / 600 VAC
The battery 1.5 V AA x 2 a
Size (D × W × H) mm 160 x75x30
Weight (g) 290 g
Packing double blister

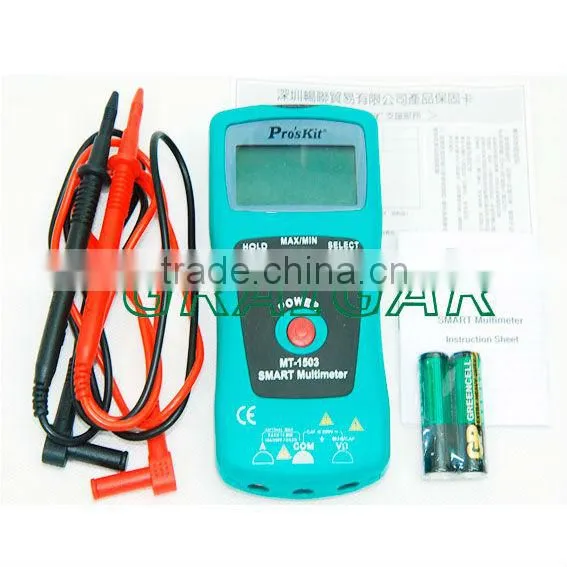

Accessories: host 1, 1, pens and good pay, English instruction 1 a, 1.5 V AA batteries 2
