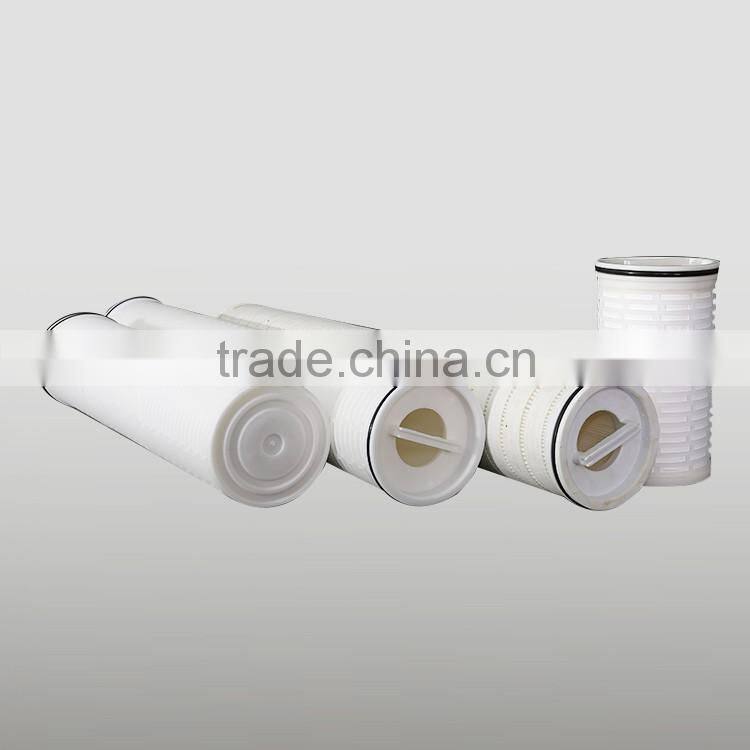

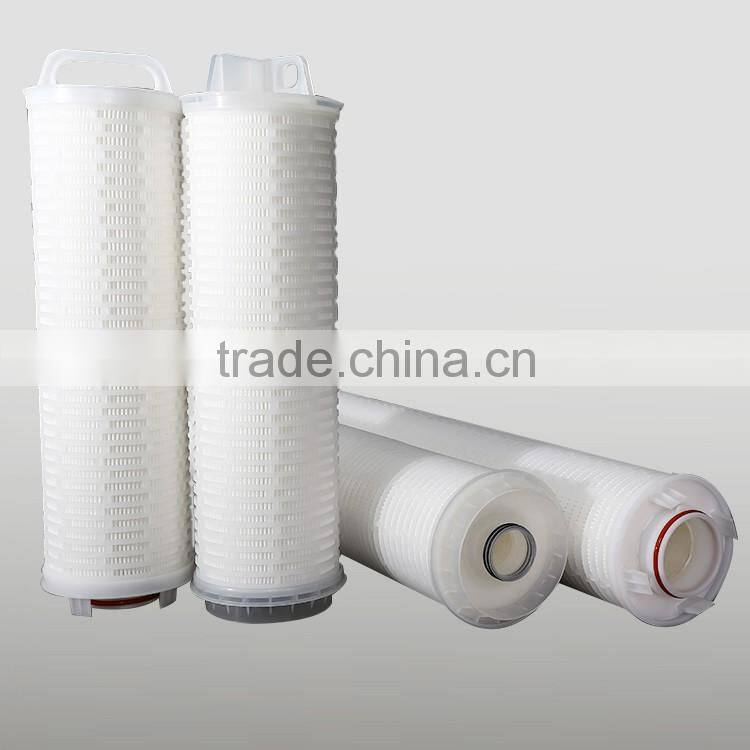

Clarify High Flow Rates New design water filter cartridge replacement

Name: Clarify High Flow Rates New design water filter cartridge replacement
Brand: TANGVI
Availability: InStock

FOB Price

USD $50 - $200 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	TANGVI
Model Number	Pall Big flow Filter Cartridge

Micron rating	1,5,10,15,20,40,70,100μm
Dimension	Outside diameter		6"(152mm)
	Inside diameter		3.5"(89mm)
Lengths	20",40",60"
Max. Operating temperature	Glass fibers membrane	121℃
	PP membrane	82℃
Max. Operating pressure	0.34MPa@121℃
	0.34MPa@82℃
Recommended change out differential pressure:	0.12MPa@20℃
Surface area	24 ft ². (2.2 m²) per 20" element
	49 ft ². (4.6 m²) per 40" element
	73 ft ². (6.8 m²) per 60" element
Maximum flow rates	20" element up to 40 m³/hr
	40" element up to 70 m³/hr
	60"element up to 70 m³/hr
