Pleated PP Filter Cartridges for Fluid Filtration
1. For water treatment / Food & Beverage / electro-optical / biopharmaceutical industry
2. High-precision, high standards ,customized
3.Low price high quality, strict test, excellent filtering effect
Materials of Construction | Filter membrane | PP membrane |
Diversion layer | pp non-woven | |
External support cage | pp material | |
Internal support | pp material or pp stainless liner | |
Specification | OD | Φ68mm Φ69mm |
ID | Φ32mm | |
length | 2.5~40" | |
Seal ring | Silicone,EPDM ,Nitrile ,Fluorous ,Fluorous and PTFE | |
Precision | 0.10,0.20,0.45,1.00,3.00,5.00,10.0,20.0,40.0 ,50.0µm | |
Effective filtering | Dimension≥0.60m² | |
Operation condition | PH value | 1~14 |
Normal working temperature | ≤55℃ | |
Max. working temperature | 80℃, pressure differential ≤0.10Mpa | |
Max. differential pressure | 25℃,forward direction 0.42Mpa,reverse direction 0.21MPa | |
Educt | Esotoxin | <0.25EU/ml |
Extractive | <0.03g/10"filter cartridge | |
Characteristics
Low differential pressure.
Low-cost.
High flow rates.
Long service life.
Ultrasonic welding and without adhesive.
Widely filter precision and selectivity, available for various situations.
Broad chemical compatibility, and good chemical stability, acid-proof, alkali-proof, ethanol-proof,
ketone-proof, DMF-proof, phenol-proof and other chemicals.

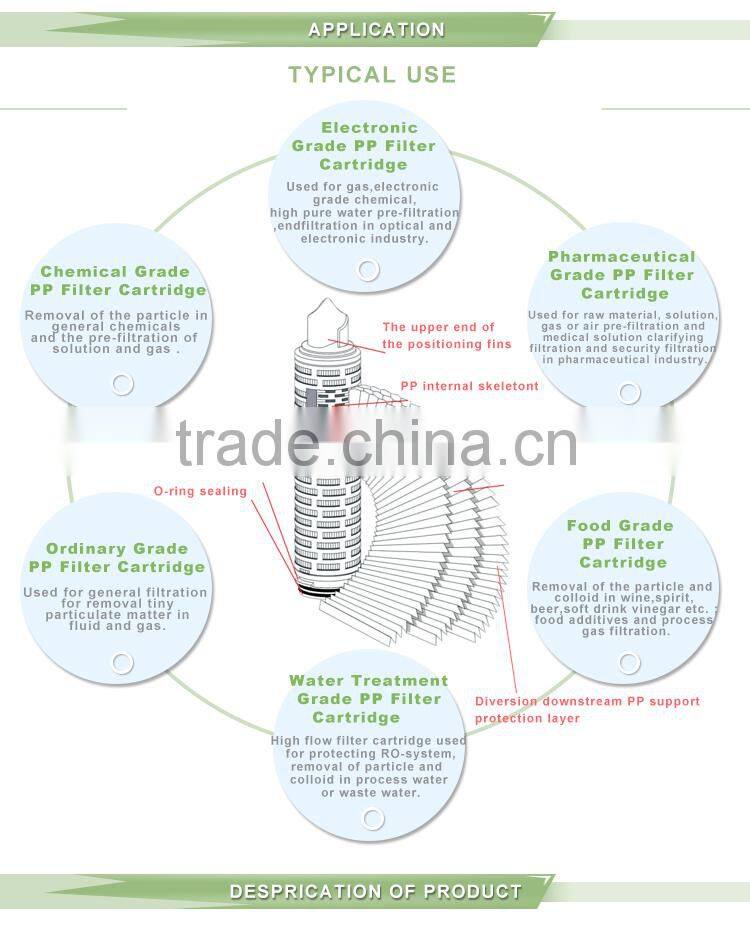

Typical Applications
Unclear power plant and heat-engine plant and natural gas plant process water filtration and gas filtration.
Filter the waste water treatment chemicals and Emulsion waste water filtration.Front protection of UF
membrane and RO membrane to impede floccules and jelly, impeding ion exchange resin, pre-filtration
of liquid membrane purification.

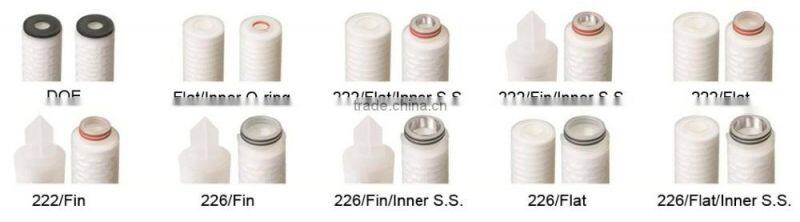

End Cap Configuration
