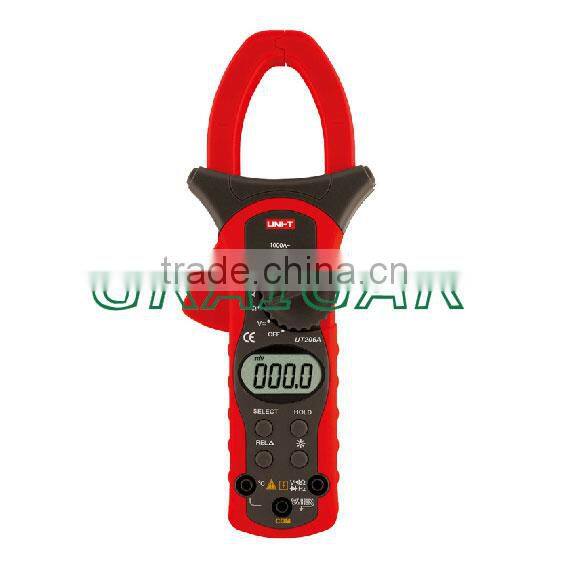

UNI-T UT206A Clamp LCD Digital Multimeter AC DC Volt Amp Meter Ohm Hz Tester

Name: UNI-T UT206A Clamp LCD Digital Multimeter AC DC Volt Amp Meter Ohm Hz Tester
Brand: UNI-T
SKU: 130765403
Availability: InStock

US$ 65 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT206A

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT206A

Display Type Digital Only

Measuring Current Range AC:400A/1000A

Measuring Voltage Range AC:4V/40V/400V/600V,DC:400mV/4V/40V/400V/600V

Measuring Resistance Range 400W/4kW/40kW/400kW/4MW/40MW

Measuring Capacitance Range 40nF/400nF/4mF/40mF/200mF

Dimensions 236 x 97 x 40mm

Weight 350g

Specifications

UNI-T UT206A Clamp LCD Digital Multimeter AC DC Volt Amp Meter Ohm Hz Tester

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	400mV/4V/40V/400V/600V	(0.8%+1)
AC Voltage	4V/40V/400V/600V	(1.2%+5)
AC Current	400A/1000A	(1.5%+5)
Resistance	400W/4kW/40kW/400kW/4MW/40MW	(1%+2)
Temperature (oC)	-40oC~1000oC	(2%+8)
Frequency	10Hz~10MHz	(0.1%+3)
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Relative Mode
Data Hold
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	Around 10MW
Max. Display	3999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	37 x 18mm
Product Colour	Red and Grey
Product Net Weight	350g
Product Size	236 x 97 x 40mm

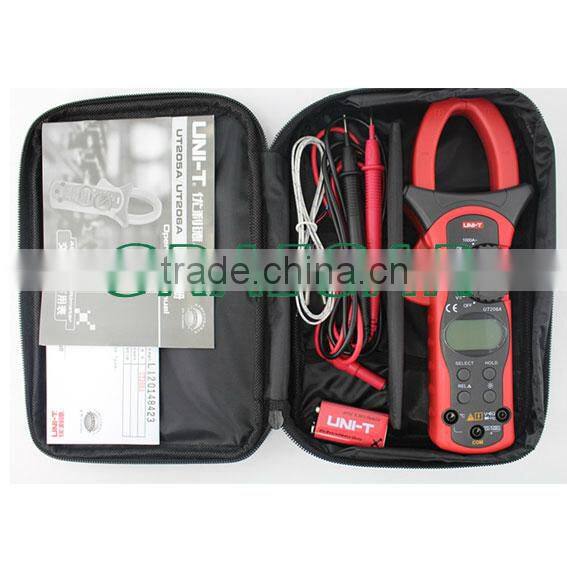

Standard Accessories	Test Lead, Battery, English Manual, Point Contact, Temperature Probe, Carrying Bag
